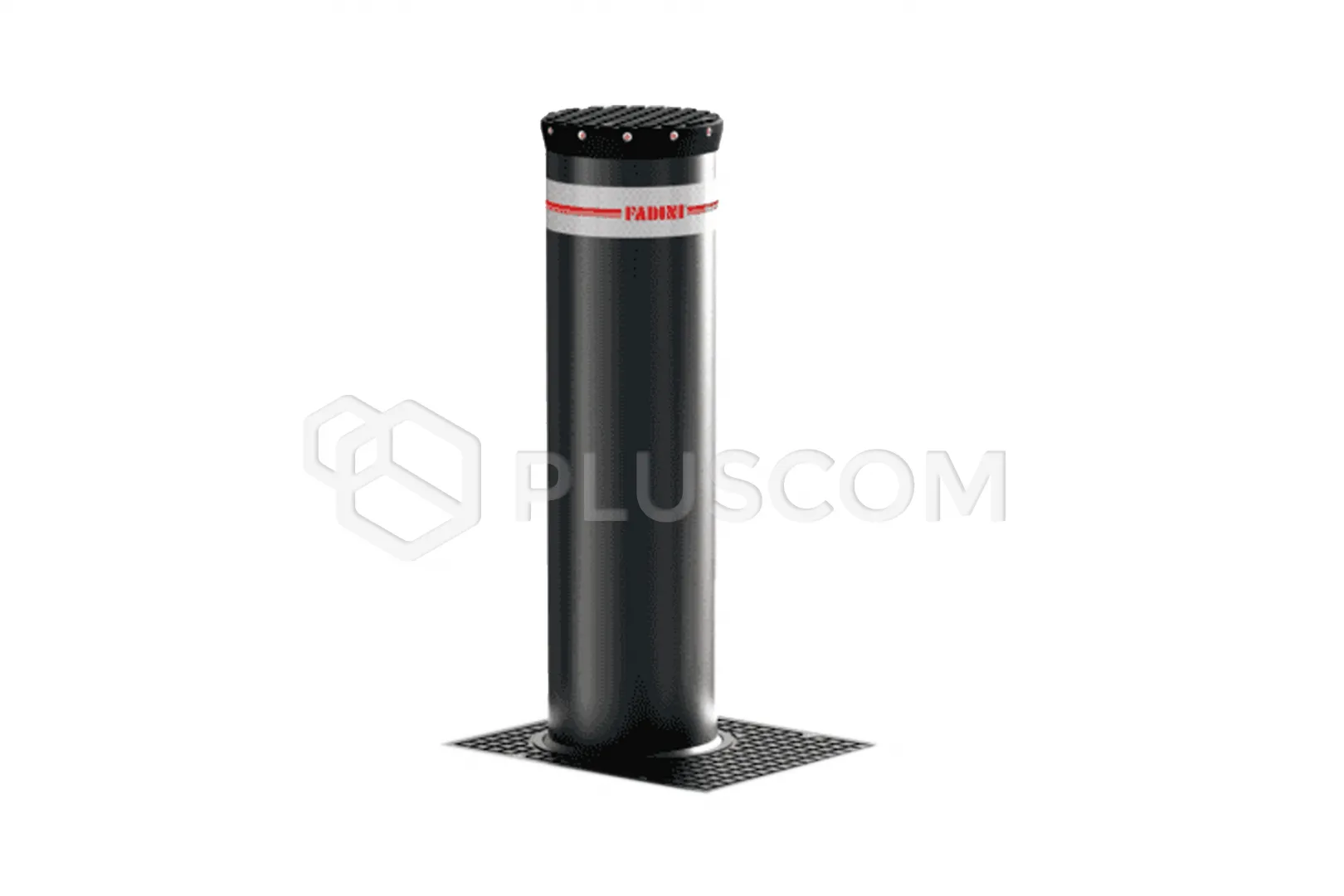

Fadini 9685L TALOS C730 automatic parking bollard diameter 275mm, height 1000mm

Fadini 9685L TALOS C730 Automatic Parking Bollard, 275mm diameter, 1000mm height

The bollard features a fully retractable 275 mm diameter cylinder that recesses flat into the ground. Designed for vehicle access control and the protection of facilities vulnerable to terrorist attacks (military barracks, police stations, airports, etc.), where a high level of perimeter security is required. Designed and tested to independently stop a vehicle weighing 7.5 t traveling at 48 km/h.
Scratch-resistant steel cylinder treated with cataphoresis and polyester powder coating. Impact resistance: 750,000 joules. IP 66 connector and junction box. Hall effect limit switches, rubber gasket on column cover, integrated LED warning lights.

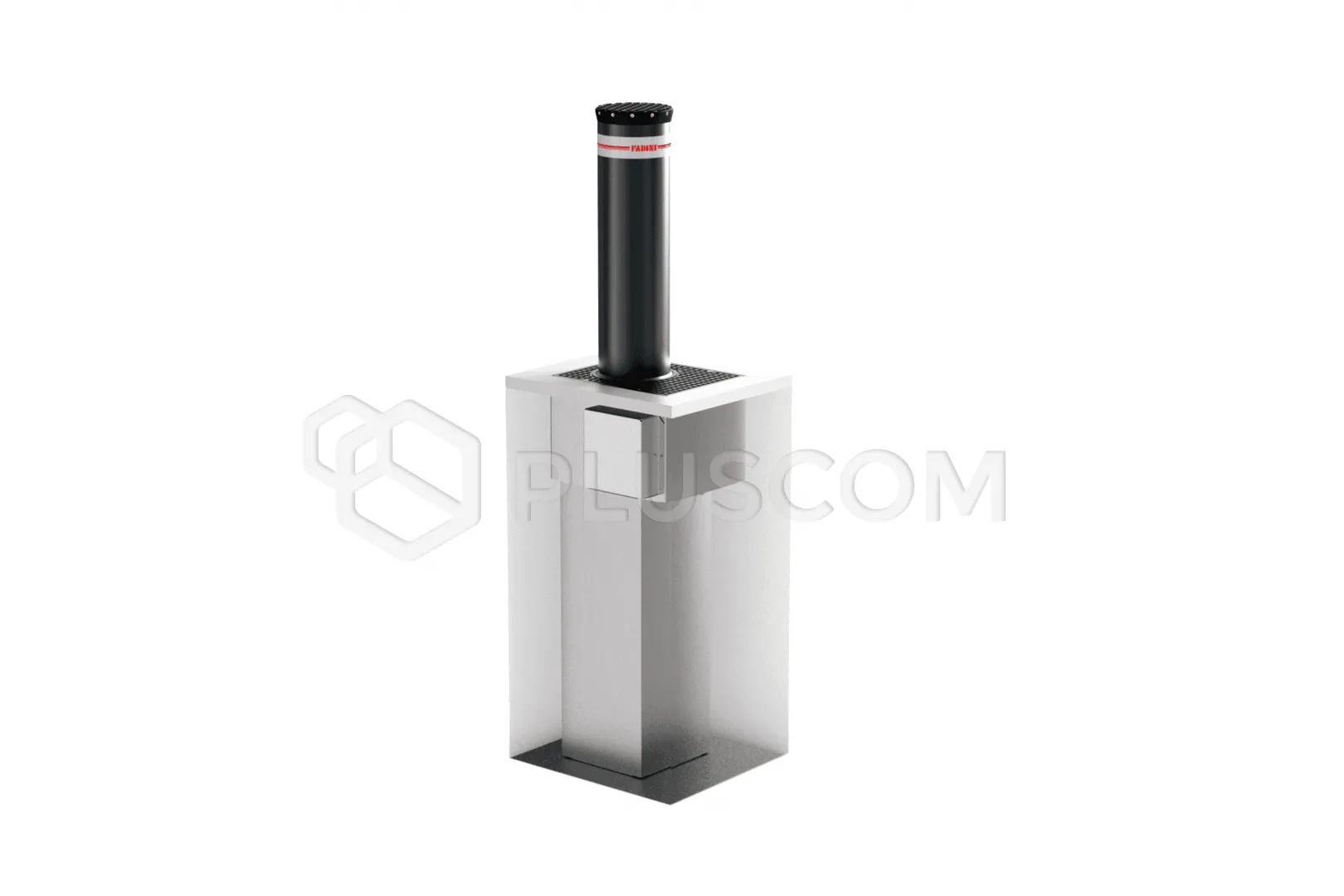

The is located inside the post, which is maintained at a depth of 40 cm.

A hydraulic lock holds the post column in the extended position (standard) and allows for emergency manual lowering using the key supplied with the device. A cover with anti-burglary protection that prevents access to the lock release mechanism to allow unauthorized lowering of the post.

TECHNICAL DATA:

• Post diameter: 275mm
• Post thickness: 12mm
• Post height: 1000mm
• Limit: 400mm
• Power supply: 230Vac - 50Hz
• Power consumption: 1.850W
• Current: 5A
• Impact resistance: 250,000J
• Break resistance: 750,000J
• Lifting time: ~5s
• Drop time: ~4.2s
• Operating temperature: -20°C + 80°C
• Oil type: FADINI oil - code 708L
• Oil pump protection class: IP67
• Use frequency: intensive
• Weight: 360kg
