Fadini 9682L TALOS M30 Hydraulic automatic parking bollard 275/800 anti-terrorist

8505,72 EUR including 20.00% VAT
Product code: #37214
Manufacturer: Fadini

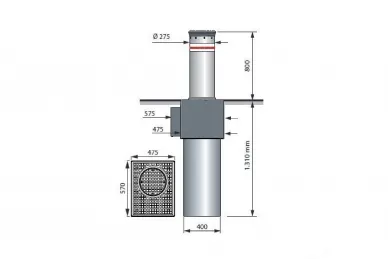

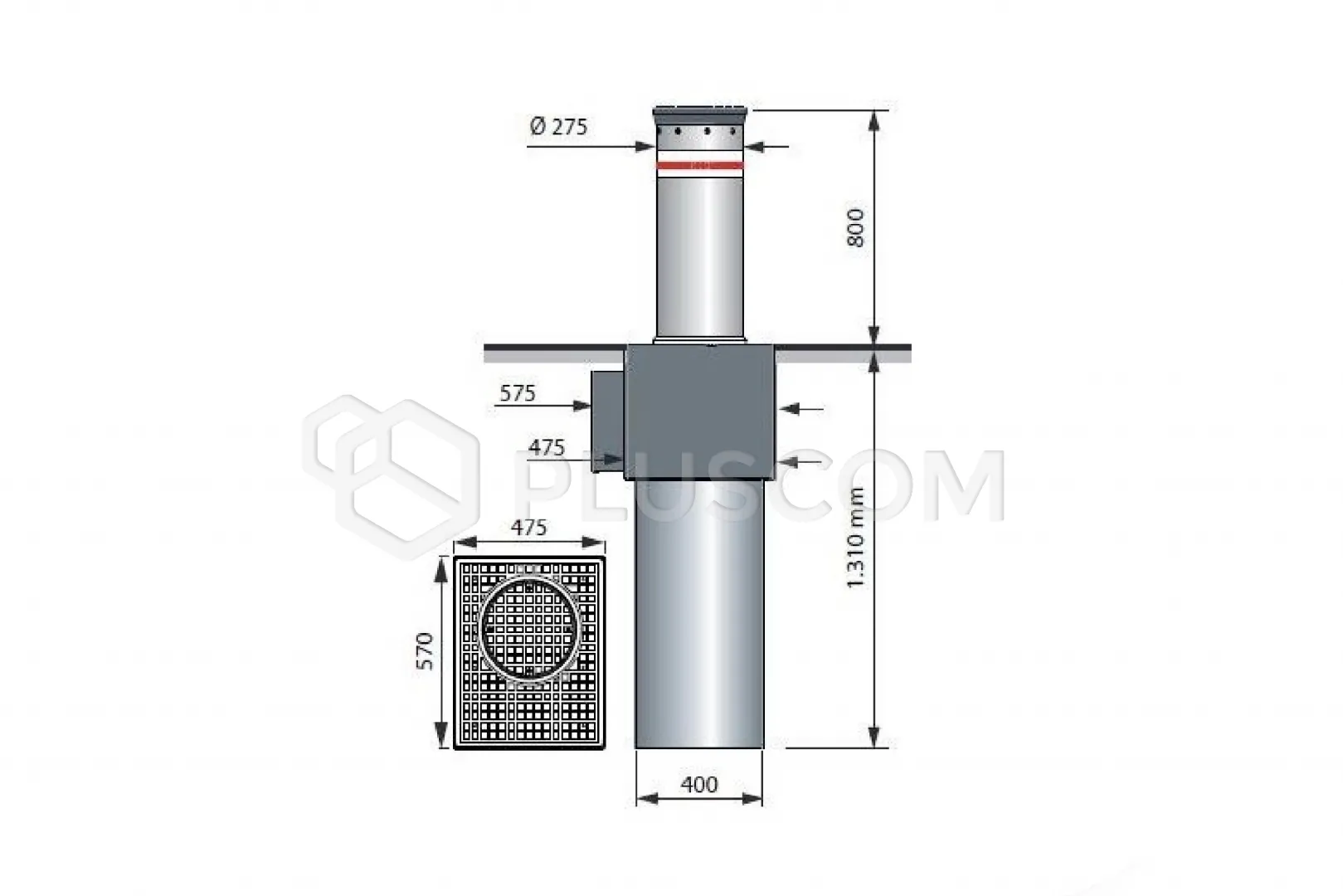

  • Cylinder height above ground: 800 mm
  • Cylinder diameter: 275 mm
  • Well depth: 1310 mm
  • Well depth: 1310 mm
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

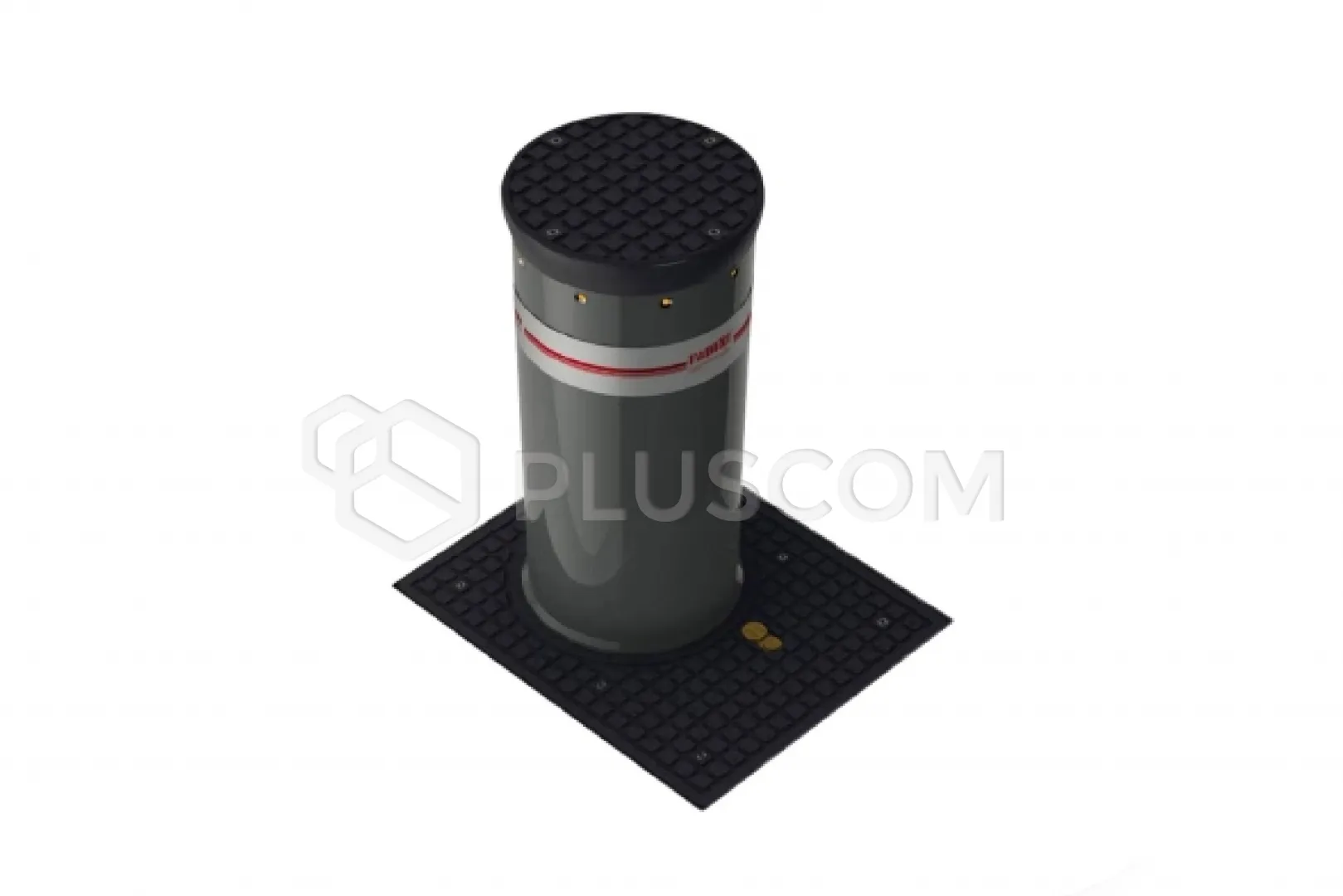

Fadini 9682L TALOS M30 Automatic hydraulic parking bollard 275/800 anti-terrorist

AUTOMATIC BOLTS FOR AREA SECURITY

Automatic hydraulic actuator 230 V AC.

AREA SECURITY

Created for vehicle access control and protection of particularly sensitive areas, where a high level of area security is required. Designed in accordance with the requirements of ASTM F2656-07, PAS 68:2013, IWA 14-1.

HYDRAULIC MECHANISM

Hydraulic lock holding the bollard column in the extended position (as standard) and emergency manual lowering using the key supplied with the device. Anti-burglary cover prevents access to the lock release mechanism for unauthorized lowering of the post.

DURABLE CONSTRUCTION

Scratch-resistant steel cylinder protected by cataphoresis and covered with polyester powder coating. Also available with a cover made of 12/10 AISI 304 satin stainless steel. Break-resistant: 700,000 joules. IP 66 connector and junction box. Hall effect limit switches, rubber seal on the cover of the post, integrated LED warning lights.

VERSALITY

A wide range of control and safety accessories allows reliable and precise control of the devices. Audible signal that activates when the post is raised and lowered. Heater enabling the post to operate at low temperatures down to -40 °C in areas where weather phenomena such as snow and frost often occur. The control unit can be configured to operate several posts simultaneously.

Technical data:

  • Cylinder diameter (mm)L: 275
  • Cylinder thickness (mm)L: 12
  • Cylinder height above ground (mm): 800
  • Cylinder material: S355J2H steel
  • Cylinder treatment and finish: cataphoresis and polyester powder coating RAL 7016 | AISI 304 brushed steel sleeve
  • Housing: hot-dip galvanized
  • Lifting time (s) [cm/s]: ~4.50 [18]
  • Falling time (s) [cm/s]: ~3.42 [23]
  • Operating temperature (°C): -20 ÷ +80 (-40 with heater)
  • Oil type: 708L
  • Power supply (Vac – Hz): 230 - 50
  • Power consumption (W): 1.100
  • Current consumption (A): 1.8 ÷ 3.5
  • IP protection class/engine-pump: 67
  • Frequency of use (cycles/day): heavy load / 2.000
  • Impact resistance (J): 150.000
  • Break resistance (J): 700.000
  • Max. static load (kg): 20.000
Download
User manual 2.5 MB
