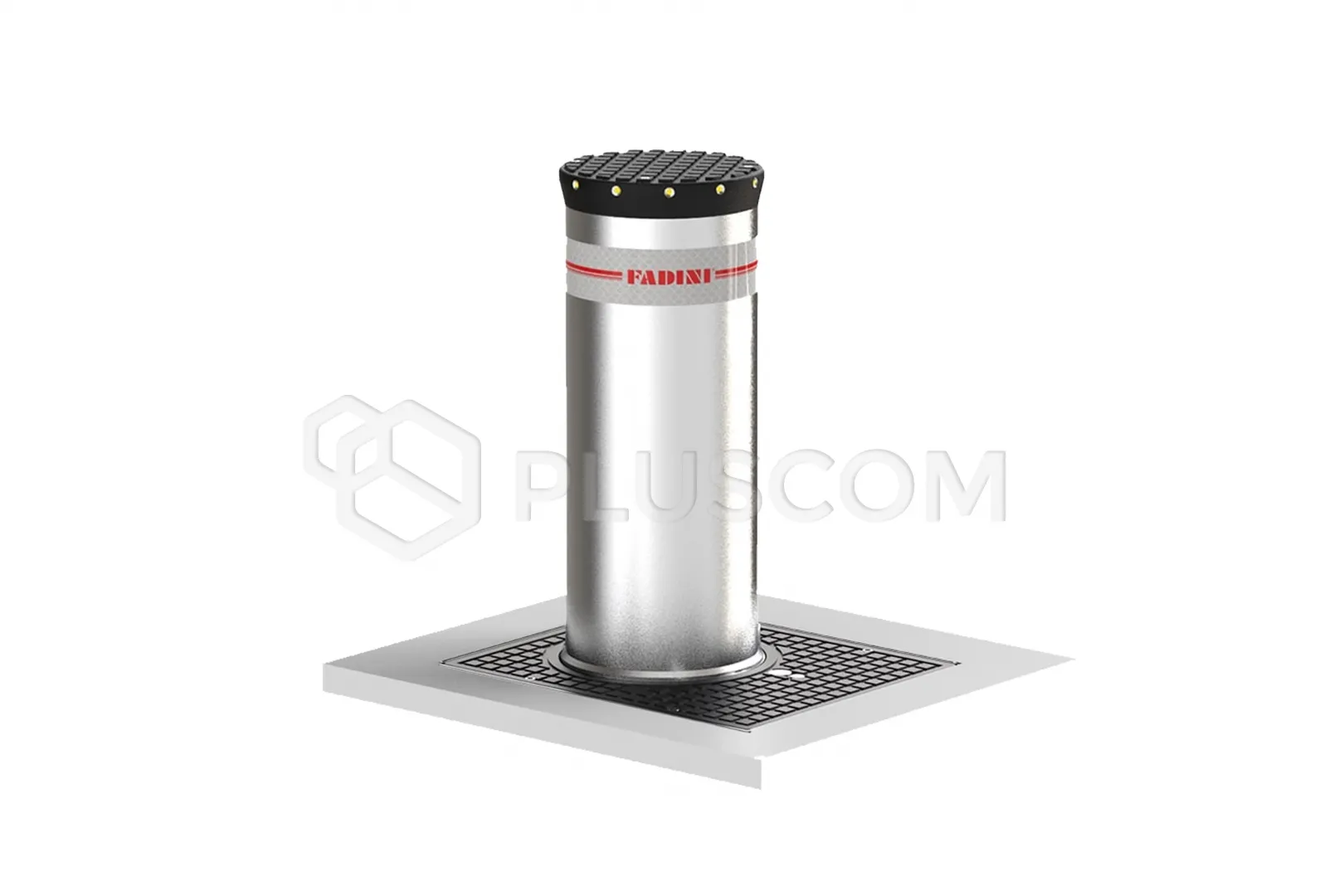

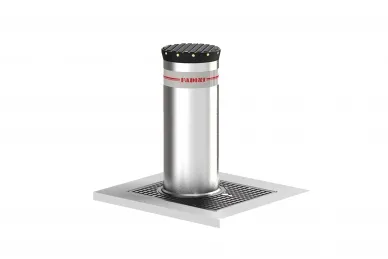

Fadini 9470A4L TALOS 94 automatic parking bollard, diameter 275mm, height
700mm
The bollard features a fully retractable 275mm diameter cylinder that recesses
flat into the ground. Designed for access control in residential areas and
areas with high daily traffic, such as shopping centers, industrial complexes,
and urban areas.
The scratch-resistant cylinder is made of cataphoretically treated steel ,
while the movable cylinder is made of brushed AISI 304 stainless steel. The
bollard's structure is scratch-resistant, the foundation casing is fully
hot-dip galvanized, and the internal structure is electrolytically galvanized.
The two-stroke oil-hydraulic cylinder is located inside the bollard, which is
maintained at a depth of 20 cm.
It features two limit switches (one for the bollard in the raised position and
one for the bollard in the lowered position), a rubber seal on the column
cover, integrated LED warning lights (12 built-in LEDs), and a release key with
a triangular cap.
The hydraulic unit was designed with two main goals in mind: reliability and
operational usability.
The post is supplied pre-wired, and all internal electrical connections are
factory-wired in a waterproof junction box equipped with an IP 67 quick-connect
connector. This innovative solution allows for the complete wiring of the post
in the easiest and most straightforward manner, as only one cable needs to be
run. Similarly, if the post needs to be removed or serviced, the power cable
can be easily disconnected from the connector.
EASY ACCESS TO HYDRAULIC COMPONENTS
The convenient location of the hydraulic unit and the hydraulic cylinder piston
located inside the post simplify maintenance and reduce service time. This
provides better protection for components, reducing rust and other factors that
can degrade the device.
TECHNICAL DATA:
- Post diameter: 275mm
- Post thickness: 4mm
- Post height: 700mm
- Constraint: 200mm
- Power supply: 230Vac - 50Hz
- Max. absorbed power: 1.10W
- Current: 1.8-3,5A
- Output power: 0.25kW (0.33HP)
- Impact resistance: 52,000J
- Break resistance: 320,000J
- Underground housing: Hot-dip galvanized
- Lifting time: ~2.57s
- Lower time: ~2.40s
- Operating temperature: -20°C + 80°C
- Oil type: FADINI oil - code 708L
- Oil pump protection class: IP67
- Use frequency: Intensive
- Weight: 234kg
