Fadini 9330L STRABUC 930 OPINAT Set

Fadini 9330L STRABUC 930 OPINAT Set with automatic parking bollard, diameter 275mm, height 700mm, with acoustic traffic signal and solenoid valve

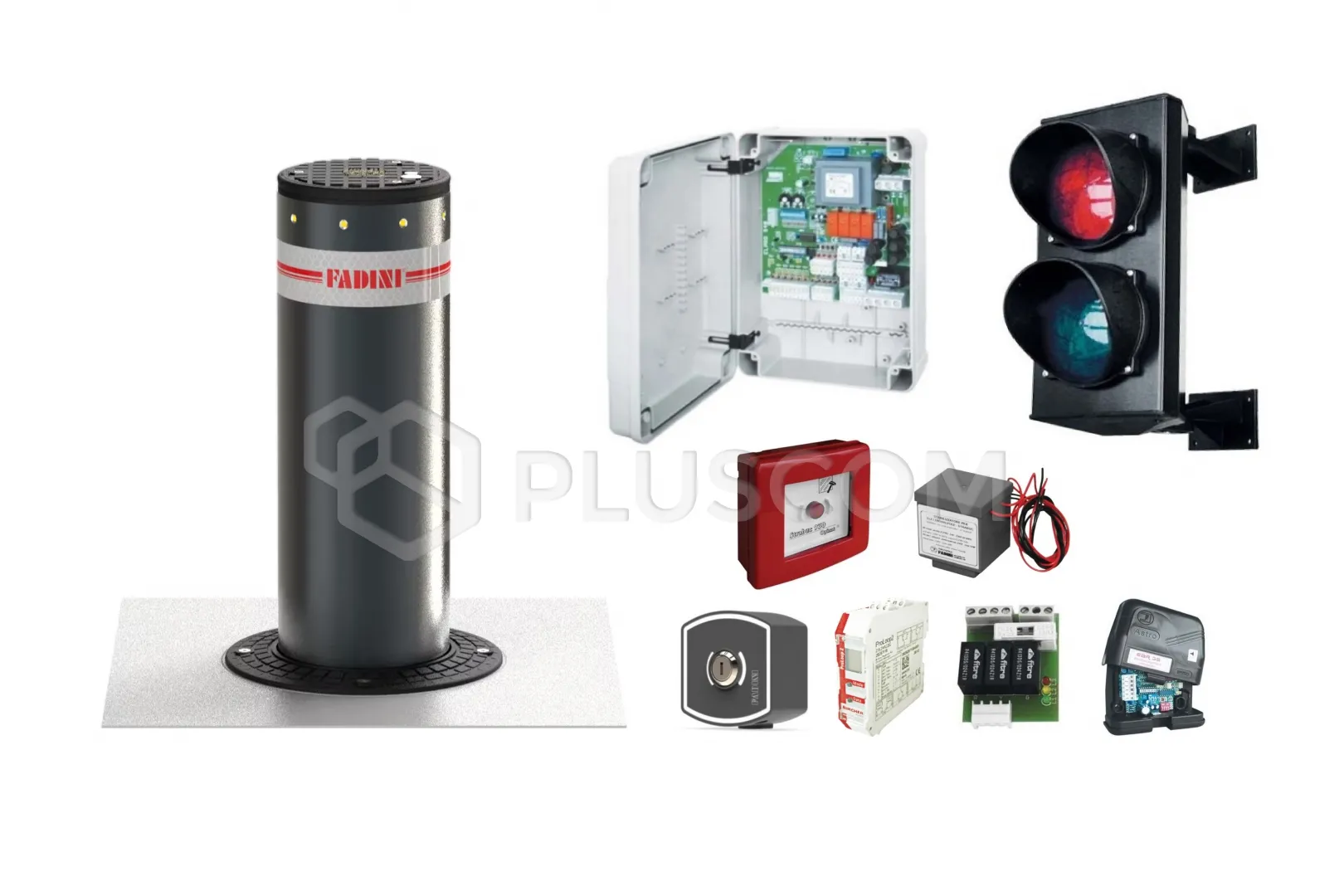

KIT INCLUDES: 9328L STRABUC 930 OPINAT automatic bollard Fadini 7280L ELPRO S40 control unit for automatic posts Fadini 2032L-1PL 1-channel induction loop detector 24V Fadini 142L ZERO.K Surface-mounted key switch with standard insert and two keys Fadini 3203L Light semaphore 70W 230V with red and green light 3220L Road Warning Sign Fadini 7282L Plug-in module for controlling semaphores and for ELPRO control units Fadini 7285L Waterproof Polyester Case Fadini 7288L Emergency acoustic detector E.A.R. 35 Fadini 9321L 24V DC transformer for each device equipped with a solenoid valve Fadini 9331L Emergency control with illuminated button and two contacts 9555L Housing with Steel Anchors

Fadini 9330L STRABUC 930 OPINAT Set

A ready-made set with the 9328L STRABUC 930 OPINAT parking bollard for regulating vehicle traffic on public roads and demarcating squares, city centers, streets, restricted traffic zones, pedestrian zones, or city parking lots. Minimal impact on architecture, urban planning, and the environment.
The bollard is equipped with an integrated hydraulic unit and hydraulic actuator piston, which are located inside the bollard column. A solenoid valve allows the bollard to lower within 5 seconds in the event of a power failure.

DURABLE CONSTRUCTION
Polyester powder-coated steel structure, 9 integrated LED lights, aluminum cylinder cover with a rubber seal, cataphoresis-treated, anti-slip, abrasion-resistant finish. Mechanical limit switches, release key included. Tested for intensive use even in extremely low and high temperatures.

A wide range of control and safety accessories included in the set enables reliable and precise control of the devices. An audible signal sounds when the post is raised and lowered. A heater enables the post to operate at temperatures down to -40°C in areas where weather phenomena such as snow and frost frequently occur. The control unit can be configured to operate multiple posts simultaneously.

TECHNICAL DATA:

• Post diameter: 275mm
• Post thickness: 12mm
• Post height: 700mm
• Power supply: 230Vac - 50Hz
• Power consumption: 330W
• Current consumption: 1.8A
• Impact resistance: 45,000J
• Break resistance: 410,000J
• Lifting time: ~6s
• Drop time: ~7s
• Operating temperature: -20°C + 80°C
• Oil type: FADINI oil - code 708L
• Oil pump protection class: IP67
• Use frequency: intensive
• Weight: 180kg
