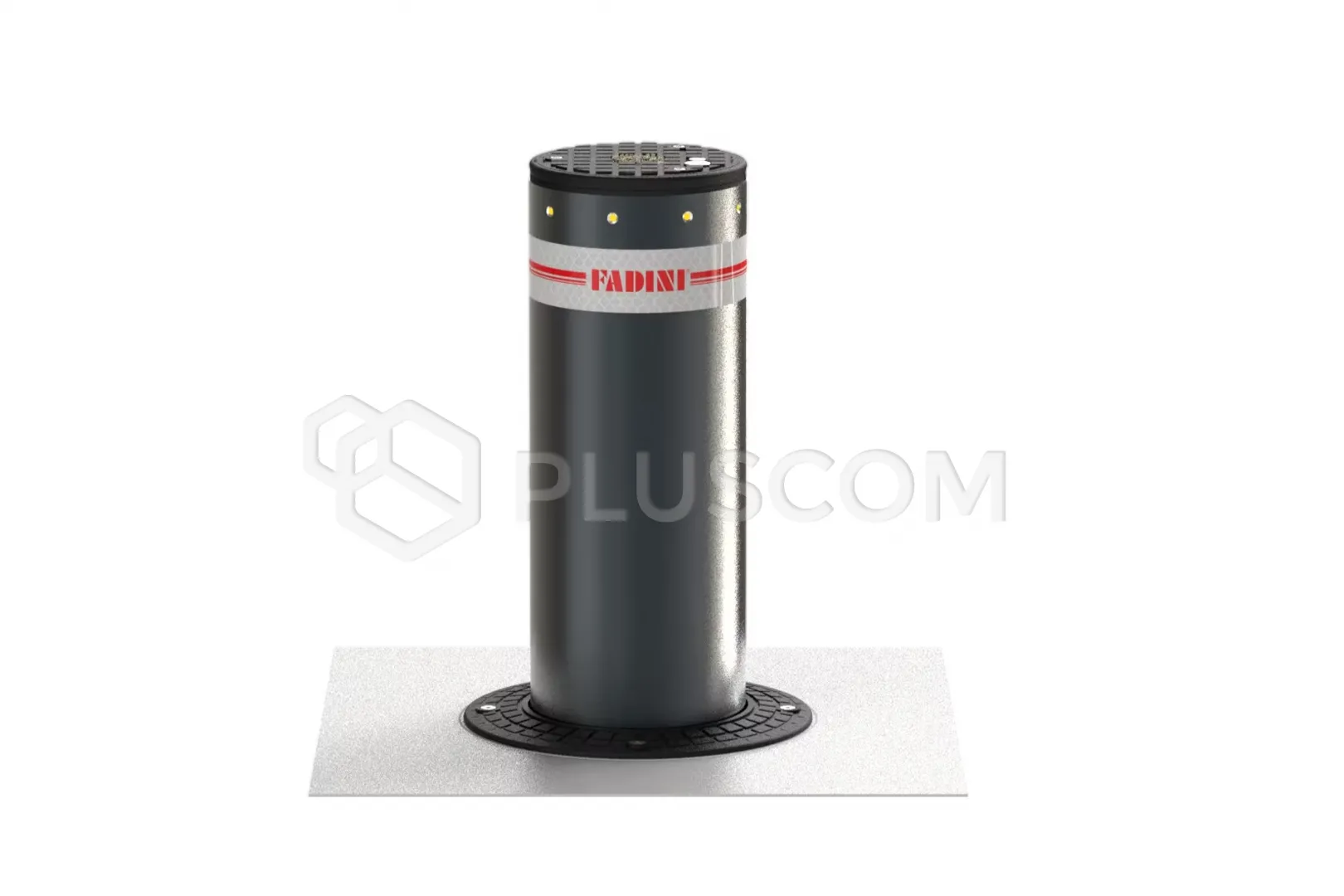

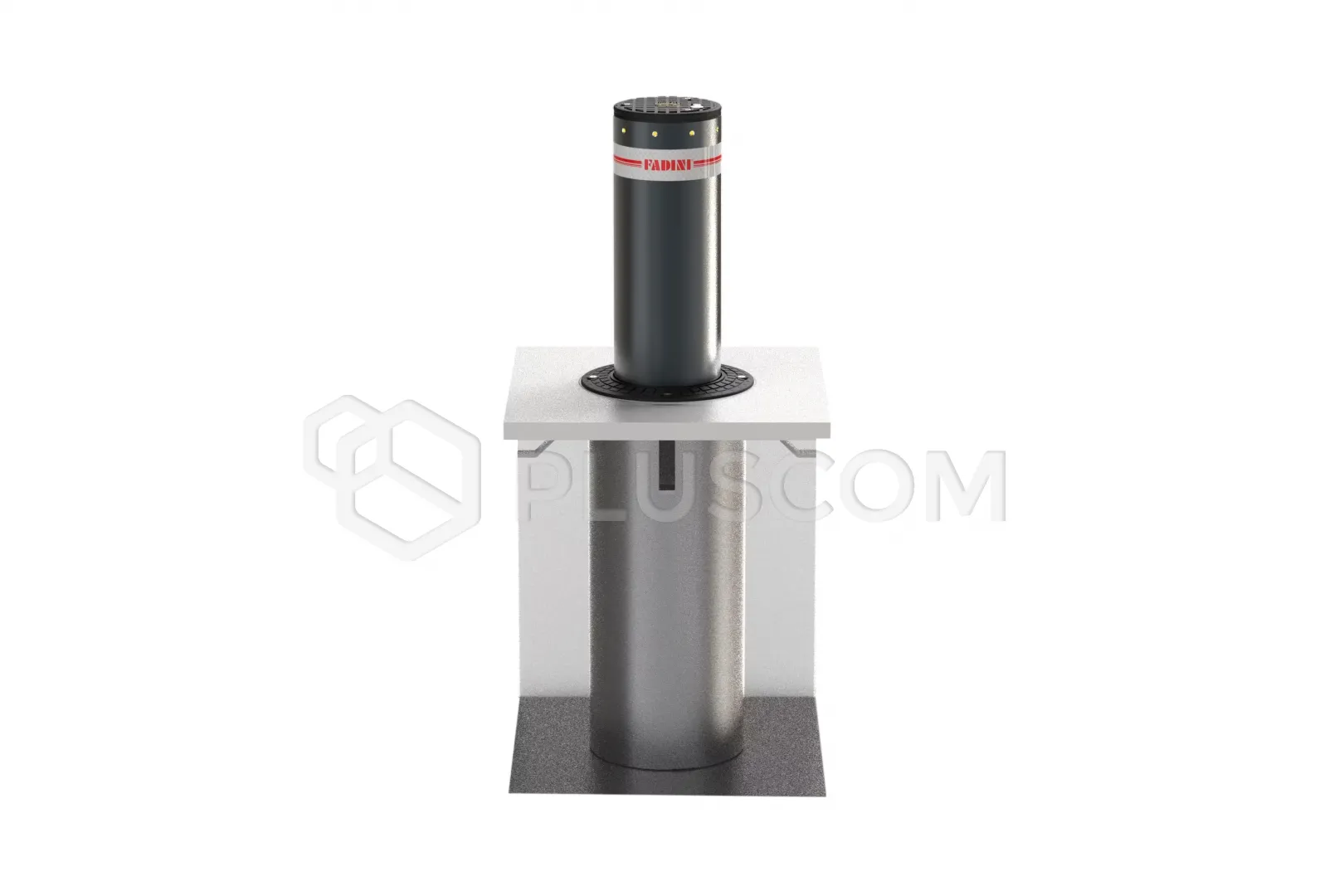

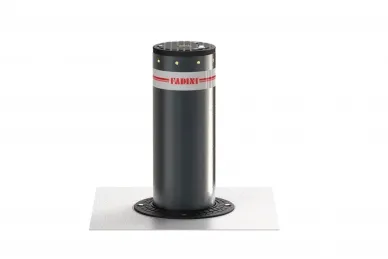

Fadini 9328L STRABUC 930 OPINAT automatic parking bollard diameter 275mm, height 600mm

Fadini 9328L STRABUC 930 OPINAT automatic parking bollard, diameter 275mm, height 700mm, with acoustic traffic alarm and solenoid valve

The 9328L STRABUC 930 OPINAT bollard is designed to regulate vehicle traffic on public roads and to demarcate squares, city centers, streets, restricted traffic zones, pedestrian zones or city parking lots. Minimal impact on architecture, urban planning, and the environment.
It is equipped with an integrated hydraulic unit and hydraulic actuator piston, which are located inside the bollard column. A solenoid valve allows the post to lower within 5 seconds in the event of a power failure.

DURABLE CONSTRUCTION
Steel construction with a polyester powder coating, 9 integrated LED lights, aluminum cylinder cover with a rubber seal, cataphoresis treated and with a non-slip, abrasion-resistant finish. Mechanical limit switches, a release key included with the device. Tested for intensive use even in extremely low and high temperatures.

A wide range of control and safety accessories enables reliable and precise control of the devices. An audible signal activates when the post is raised and lowered. A heater allows the post to operate in temperatures as low as -40°C in areas where weather phenomena such as snow and frost frequently occur. The control unit can be configured to operate multiple posts simultaneously.

TECHNICAL DATA:

• Post diameter: 275mm
• Post thickness: 12mm
• Post height: 700mm
• Power supply: 230Vac - 50Hz
• Power consumption: 330W
• Current consumption: 1.8A
• Impact resistance: 45,000J
• Break resistance: 410,000J
• Lifting time: ~6s
• Drop time: ~7s
• Operating temperature: -20°C + 80°C
• Oil type: FADINI oil - code 708L
• Oil pump protection class: IP67
• Use frequency: intensive
• Weight: 180kg
