Fadini 889L HINDI 880 SPRINT Actuator with lock on closing and opening

716,16 EUR including 23.00% VAT
Product code: #37126
Manufacturer: Fadini
  • Power supply: 230V AC

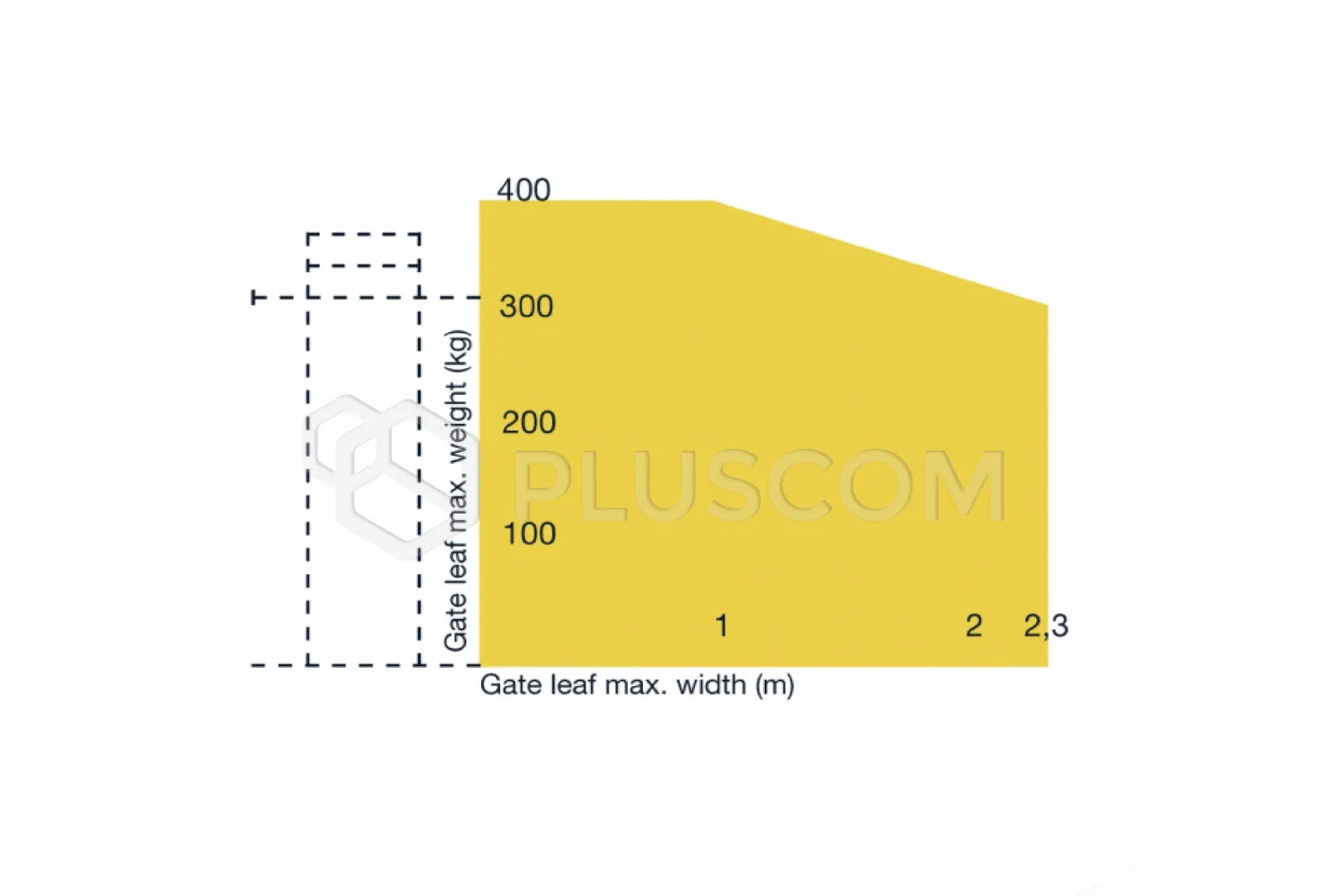

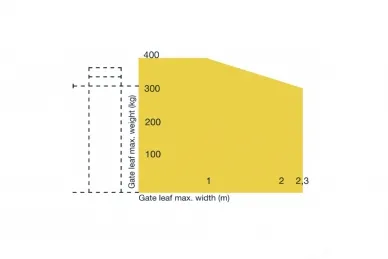

  • Max. leaf length: 2.3 m
  • Max. wing weight: 400kg
  • For intensive work
  • Protection class: IP 67
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 708L FADINI HF.PLI oil for hydraulic installations canister 2L

Fadini 889L HINDI 880 SPRINT Actuator with lock on closing and opening

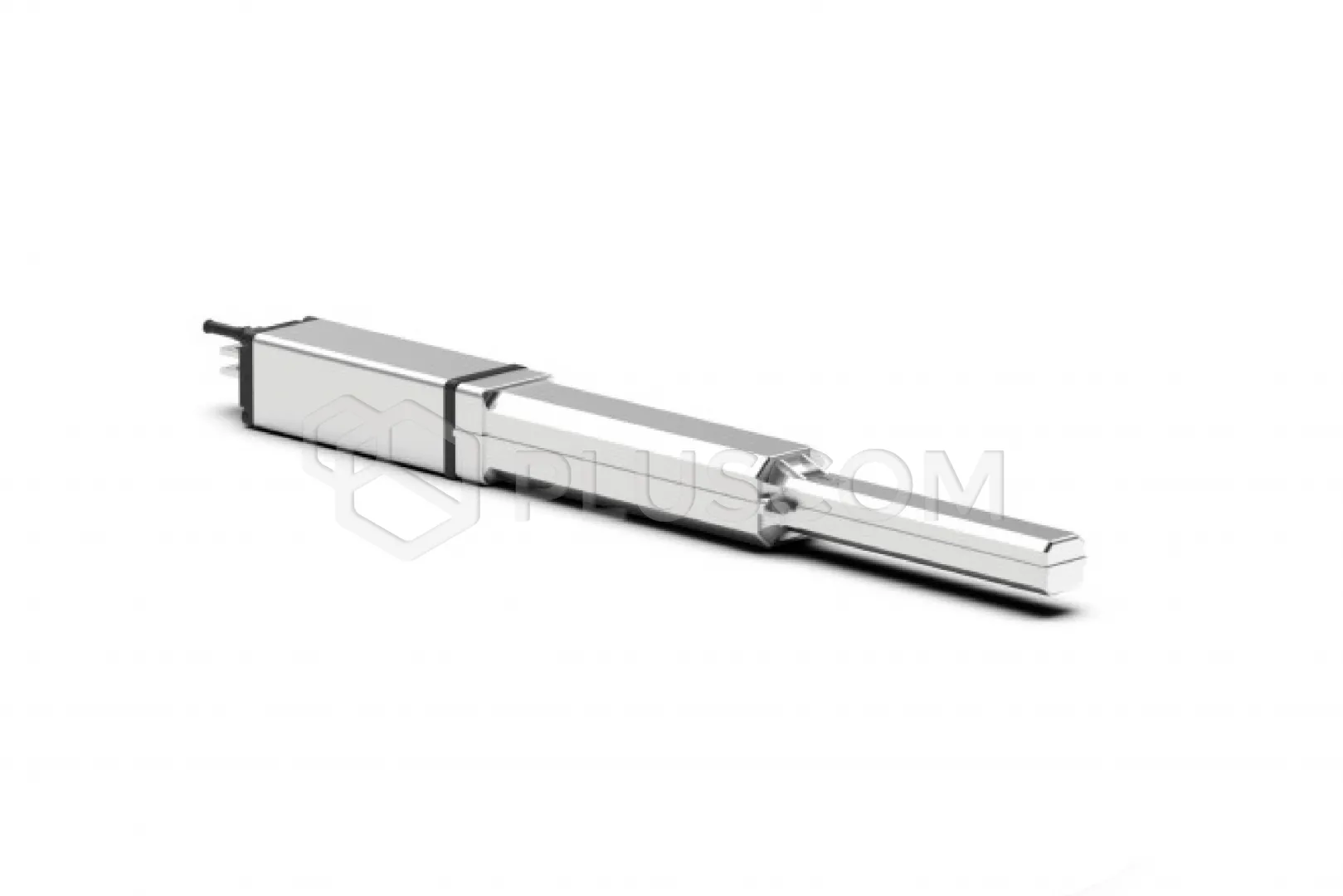

HINDI 880 SPRINT 230V 1PH (0.18 kW / 0.25 HP) oil-hydraulic actuator with lock on closing and opening for swing gates up to 400 kg and with a leaf length of up to 2.3 m. For intensive use on the property.

ATTENTION! The drive does not include the ELPRO 27 control unit.

HYDRAULIC

Safety is ensured by two valves built into the actuator. Easy release system using a key.

SOLID

Construction made entirely of aluminum. Easy to install and adjust. Available in a set with all accessories.Construction made entirely of aluminum. Easy to assemble and adjust. Available in a set with all accessories.

UNIVERSAL

Non-self-locking cylinders, without hydraulic lock, with hydraulic lock in the closing phase or with bidirectional hydraulic lock.

Technical data:

  • Power supply: 230V - 50Hz
  • Power consumption: 250W
  • Power efficiency: 180W
  • Max. current consumption: 1.2A
  • Rod stroke: 16 mm
  • Linear opening/closing speed: ~ 16 mm/s
  • Opening force: 0 ÷ 5,100 N
  • Closing force: 0 ÷ 6,200 N
  • Operating temperature: -25°C ÷ +80°C *
  • Oil type: 708L
  • Protection class: IP67
  • Use frequency: intensive
  • Weight: 9.5 kg
Download
User manual 0.52 MB
