Fadini 887L HINDI 880 SPRINT Actuator with manual opening function (not self-locking)

653,88 EUR including 23.00% VAT
Product code: #37124
Manufacturer: Fadini
  • Power supply: 230V AC

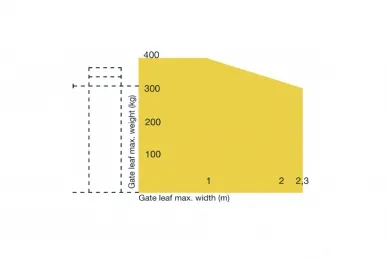

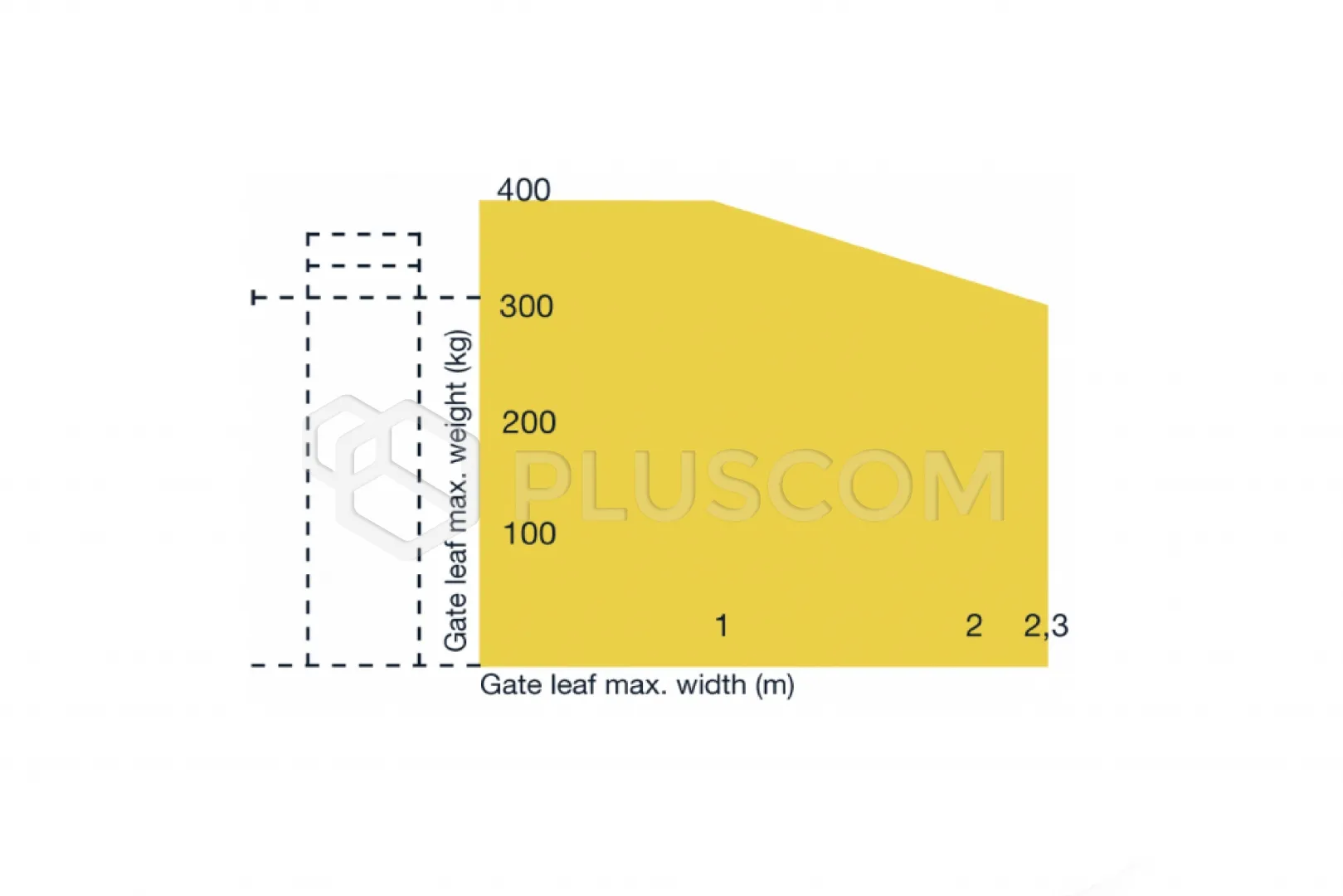

  • Max. leaf length: 2.3 m
  • Max. wing weight: 400kg
  • For intensive work
  • Protection class: IP 67
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 708L FADINI HF.PLI oil for hydraulic installations canister 2L

Fadini 887L HINDI 880 SPRINT Actuator with manual opening function (not self-locking)

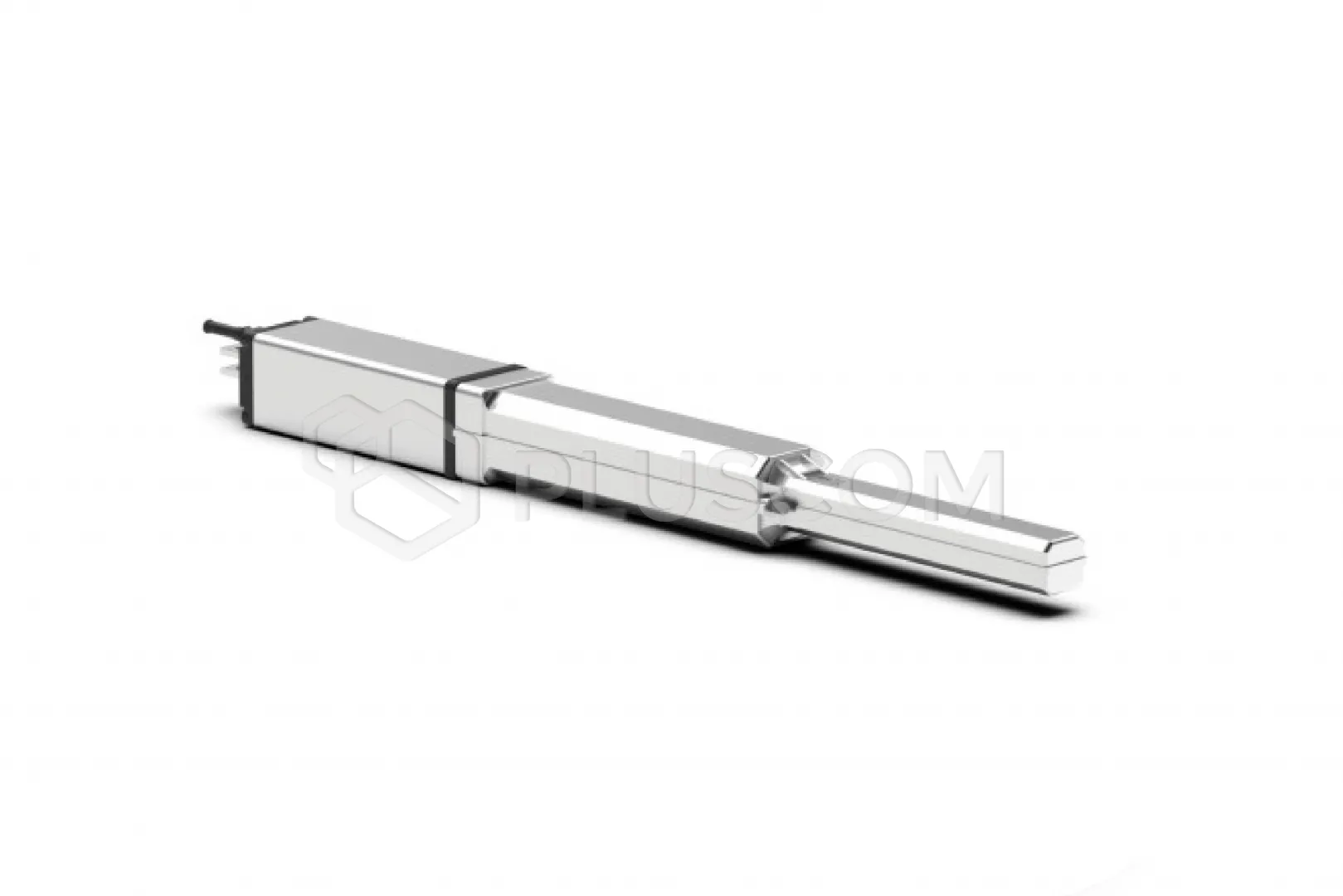

HINDI 880 SPRINT 230V 1PH oil-hydraulic actuator with manual opening function (not self-locking) for swing gates up to 400 kg and with a leaf length of up to 2.3 m. For intensive use on properties.

ATTENTION! The drive does not include the ELPRO 27 control unit.

HYDRAULIC

Safety is ensured by two valves built into the actuator. Easy release system using a key.

SOLID

Structure made entirely of aluminum. Easy to assemble and adjust. Available in a set with all accessories.Structure made entirely of aluminum. Easy to install and adjust. Available in a set with all accessories.

UNIVERSAL

Non-self-locking cylinders, without hydraulic lock, with hydraulic lock in closing phase or with bidirectional hydraulic lock.

Technical data:

  • Power supply: 230V - 50Hz
  • Power consumption: 250W
  • Power efficiency: 180W
  • Max. current consumption: 1.2A
  • Rod stroke: 16 mm
  • Linear opening/closing speed: ~ 16 mm/s
  • Opening force: 0 ÷ 5,100 N
  • Closing force: 0 ÷ 6,200 N
  • Operating temperature: -25°C ÷ +80°C *
  • Oil type: 708L
  • Protection class: IP67
  • Use frequency: intensive
  • Weight: 9.5 kg
Download
User manual 0.52 MB
