Fadini 88484P3L HINDI 880 EVO P3 Brake actuator slow version

1297,12 EUR including 22.00% VAT
Product code: #37122
Manufacturer: Fadini
  • Power supply: 230V AC

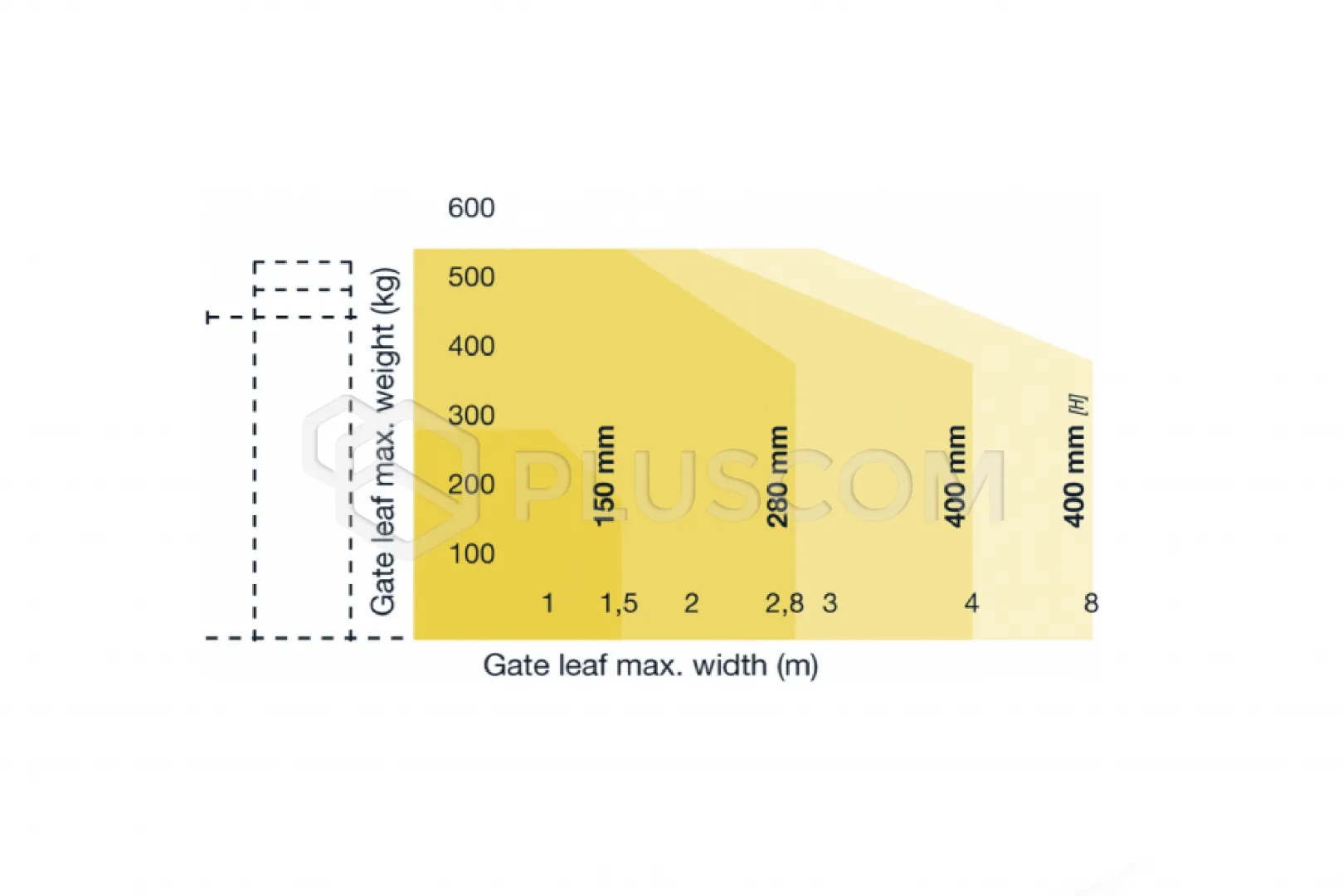

  • Max. leaf length: 8m
  • Max. leaf weight: 550kg
  • For very intensive use
  • Protection class: IP 67
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 8312L Galvanized base 85 x 85 mm for HINDI 880 EVO drive Fadini 8311L Galvanized base 150 x 150 mm to be welded to the HINDI 880 EVO drive Fadini 8310L Galvanized base 120 x 120 mm to be welded to the HINDI 880 EVO drive Fadini 708L FADINI HF.PLI oil for hydraulic installations canister 2L

Fadini 88484P3L HINDI 880 EVO P3 Brake actuator slow version

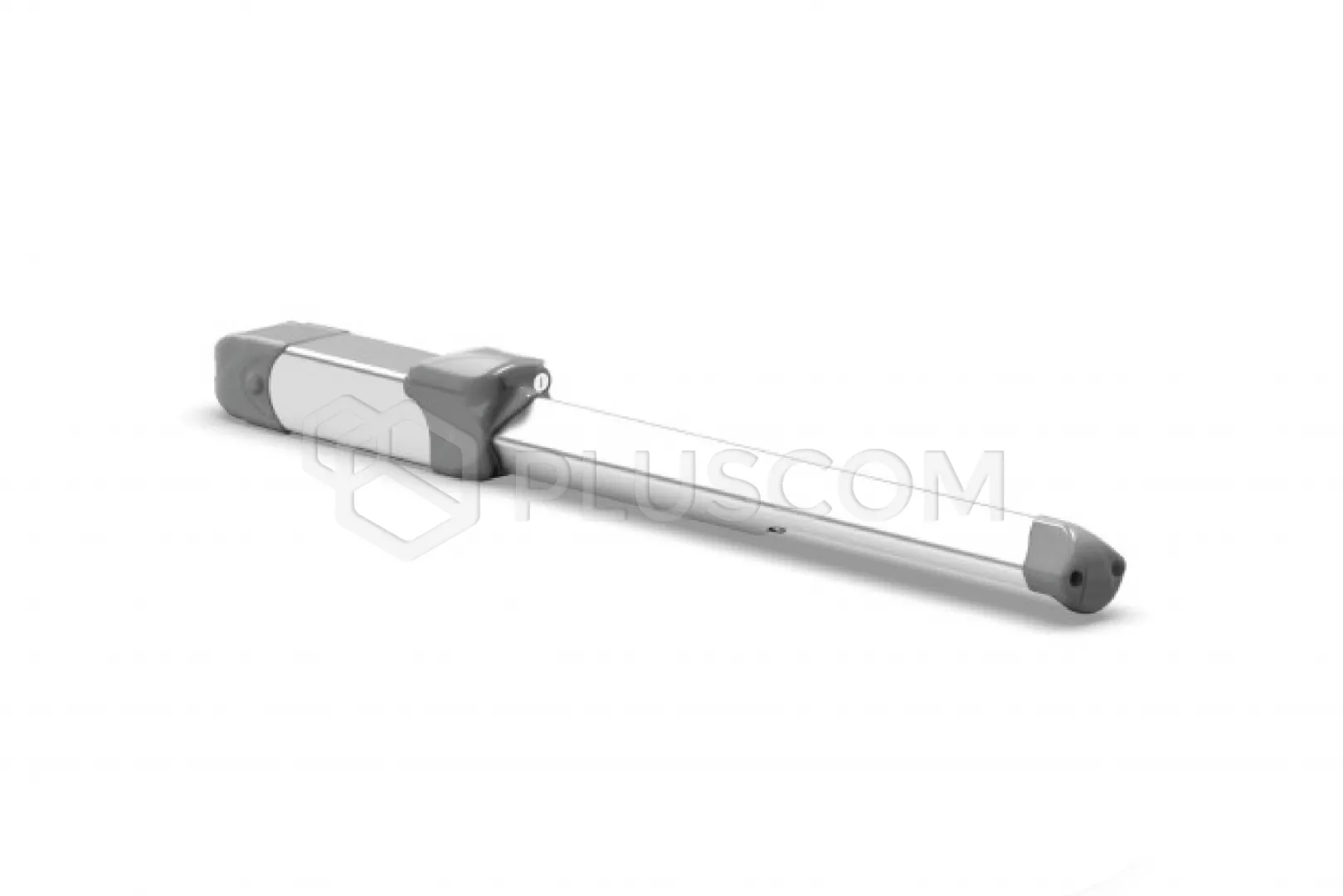

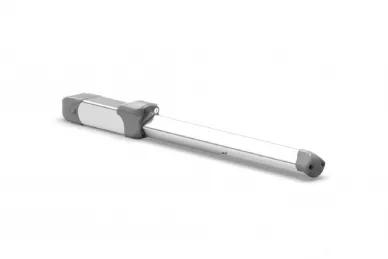

HINDI 880 EVO 230V oil-hydraulic actuator with brake for swing gates up to 550 kg and with a leaf length of up to 8 m. For intensive residential and industrial use.

Oil-hydraulic actuator equipped with EVO valve units without the possibility of configuring a hydraulic lock: the actuator is always non-self-locking and non-blocking.

HYDRAULIC

The innovative EVO valve allows you to set the desired type of hydraulic lock in a single model:
  • N non-self-locking without locking
  • A hydraulic locking in opening
  • B hydraulic locking in closing
  • BB hydraulic locking in closing and opening.
Hydraulic slowing (self-locking) in the opening and closing phases. Only in the opening phase or only in the closing phase and without slowing down.

PRACTICAL

Safety against crushing is ensured by a pair of bypass valves mounted on the cylinder. Convenient unlocking using a key.

QUALITY

Stylish design, external structure made of anodized, extruded aluminum and high quality materials that provide excellent resistance to weather conditions. Easy to install: attachment to the door leaf using an adjustable ball head.

TESTED AND CERTIFIED

CE marked.

Technical data:

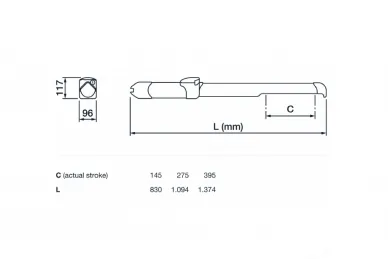

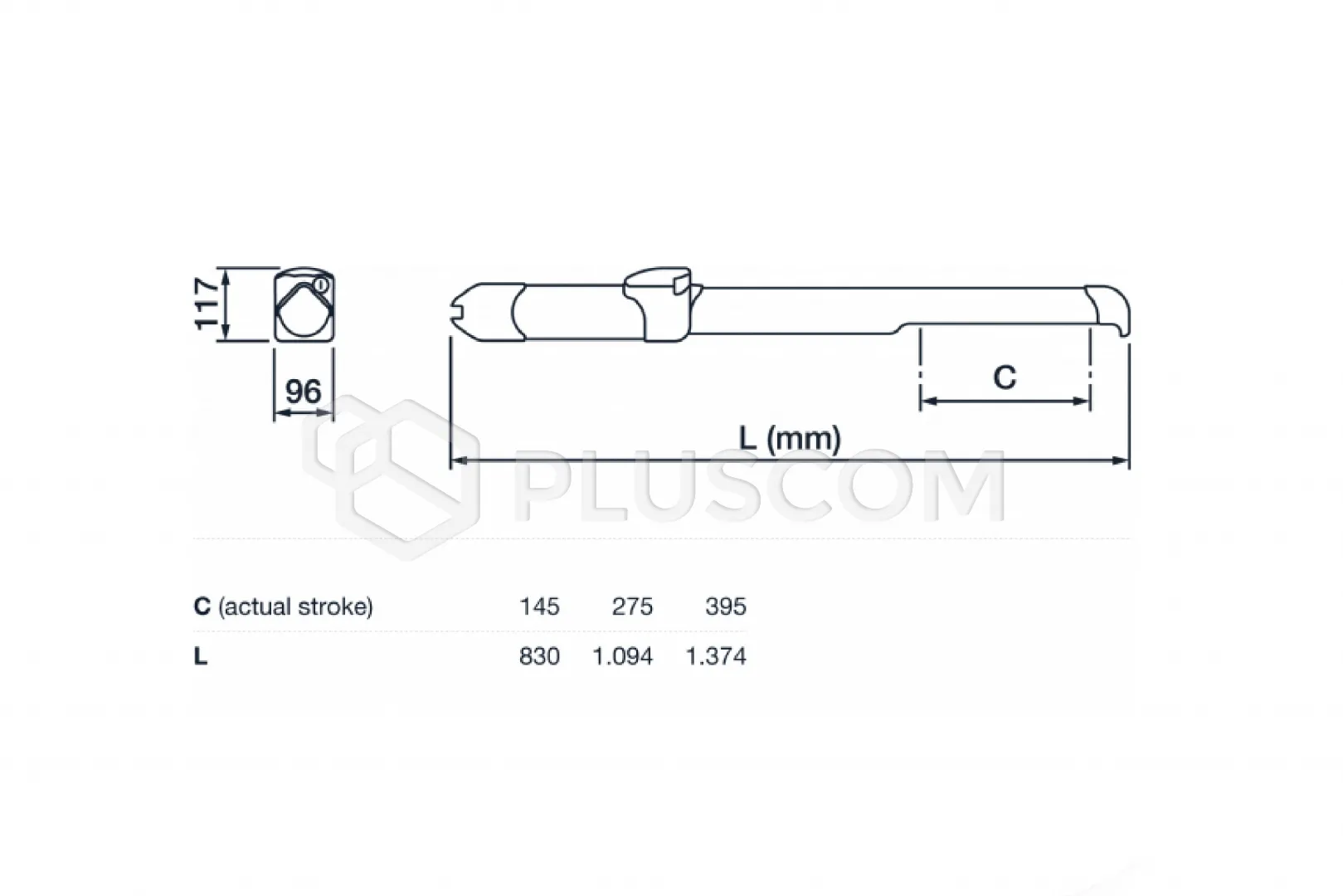

  • Rod stroke: 400 mm
  • Power supply: 230V - 50Hz
  • Power consumption: 250W
  • Power efficiency: 180W
  • Max. current consumption: 1.2A
  • Pump capacity: 0.85 l/min
  • Rod diameter: 20 mm
  • Linear opening speed: ~ 11 mm/s
  • Linear closing speed: ~ 9 mm/s
  • Opening force: 0 ÷ 4,700 N
  • Closing force: 0 ÷ 6,300 N
  • Operating temperature: -25°C ÷ +80°C *
  • Oil type: 708L
  • Protection class: IP67
  • Frequency of use: very intensive
  • Weight: 14 kg
