Fadini 88084P5L HINDI 880 EVO P5 Hybrid actuator with lock and brake, fast version

902,97 EUR including 23.00% VAT
Product code: #37119
Manufacturer: Fadini
  • Power supply: 230V AC

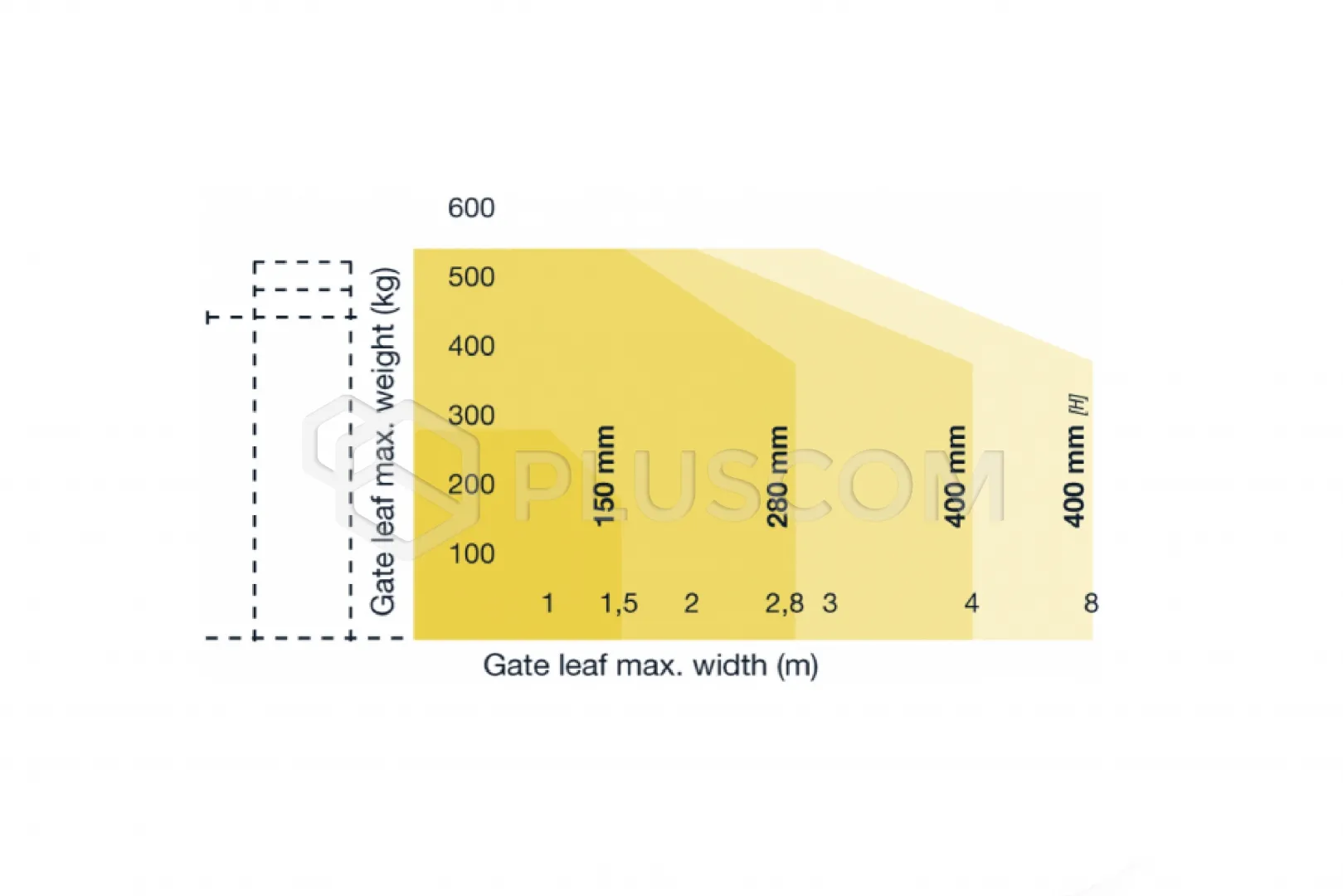

  • Max. leaf length: 2.8 m
  • Max. leaf weight: 550kg
  • For very intensive use
  • Protection class: IP 67
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 8312L Galvanized base 85 x 85 mm for HINDI 880 EVO drive Fadini 8311L Galvanized base 150 x 150 mm to be welded to the HINDI 880 EVO drive Fadini 8310L Galvanized base 120 x 120 mm to be welded to the HINDI 880 EVO drive Fadini 708L FADINI HF.PLI oil for hydraulic installations canister 2L

Fadini 88084P5L HINDI 880 EVO P5 Hybrid actuator with lock and brake fast version

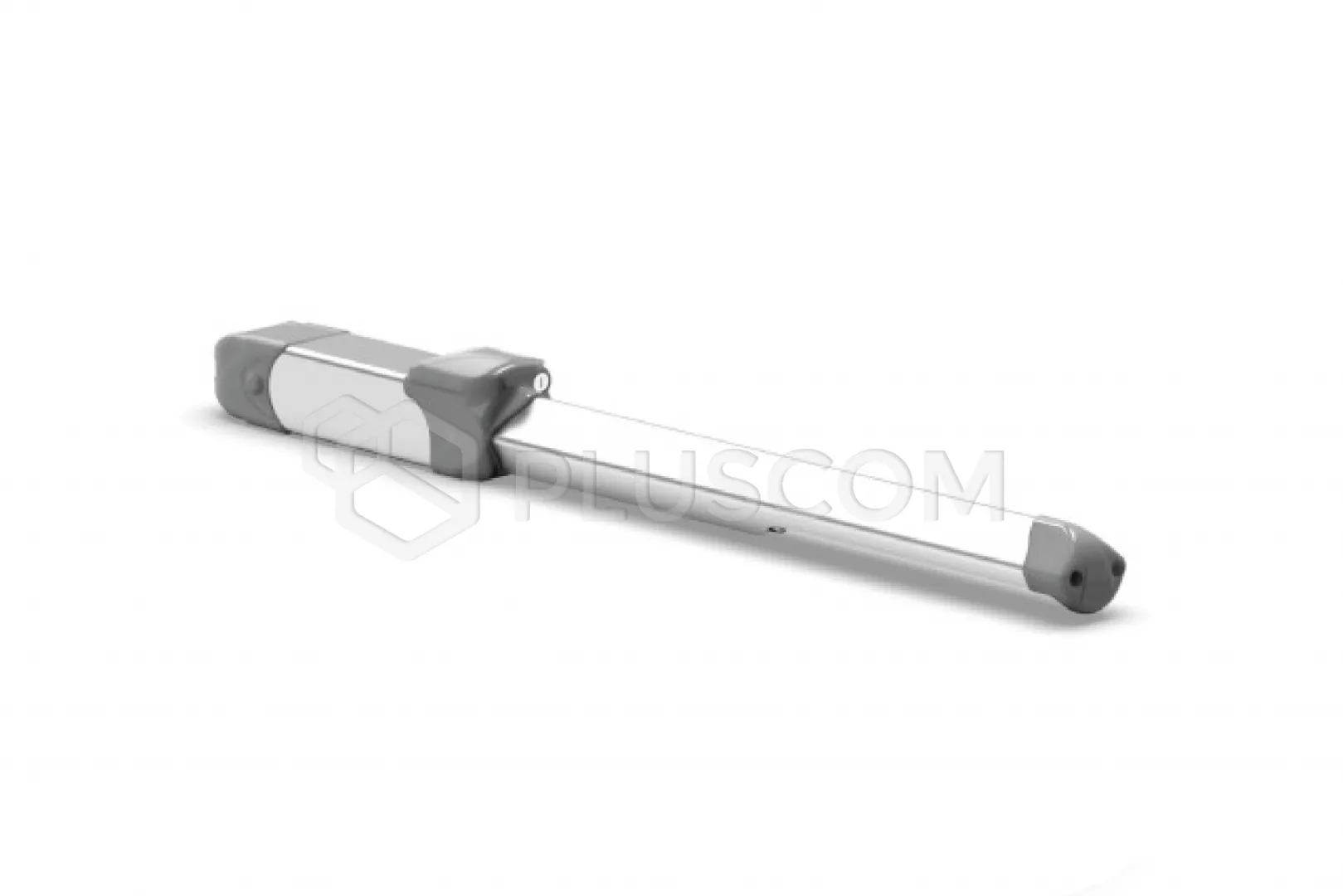

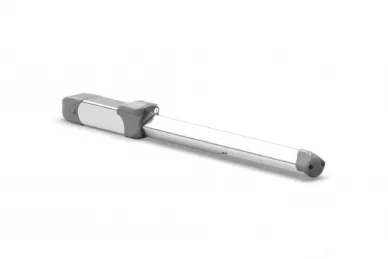

HINDI 880 EVO 230V oil-hydraulic actuator with lock and brake for swing gates up to 550 kg and with a leaf length of up to 2.8 m. For intensive residential and industrial use.

HYDRAULIC

The innovative EVO valve allows you to set the desired type of hydraulic lock in one model:
  • N non-self-locking without lock
  • A hydraulic lock on opening
  • B hydraulic lock on closing
  • BB hydraulic lock on closing and opening.
Hydraulic slowing (self-locking) in the opening and closing phase. Only in the opening phase or only in the closing phase and without slowing down.

PRACTICAL

The safety against crushing is ensured by a pair of bypass valves mounted on the actuator. Convenient unlocking using a key.

QUALITY

Stylish design, external structure made of anodized, extruded aluminum and high-quality materials that provide excellent resistance to weather conditions. Easy to install: fixing to the door leaf using an adjustable ball head.

TESTED AND CERTIFIED

CE marking.

Technical data:

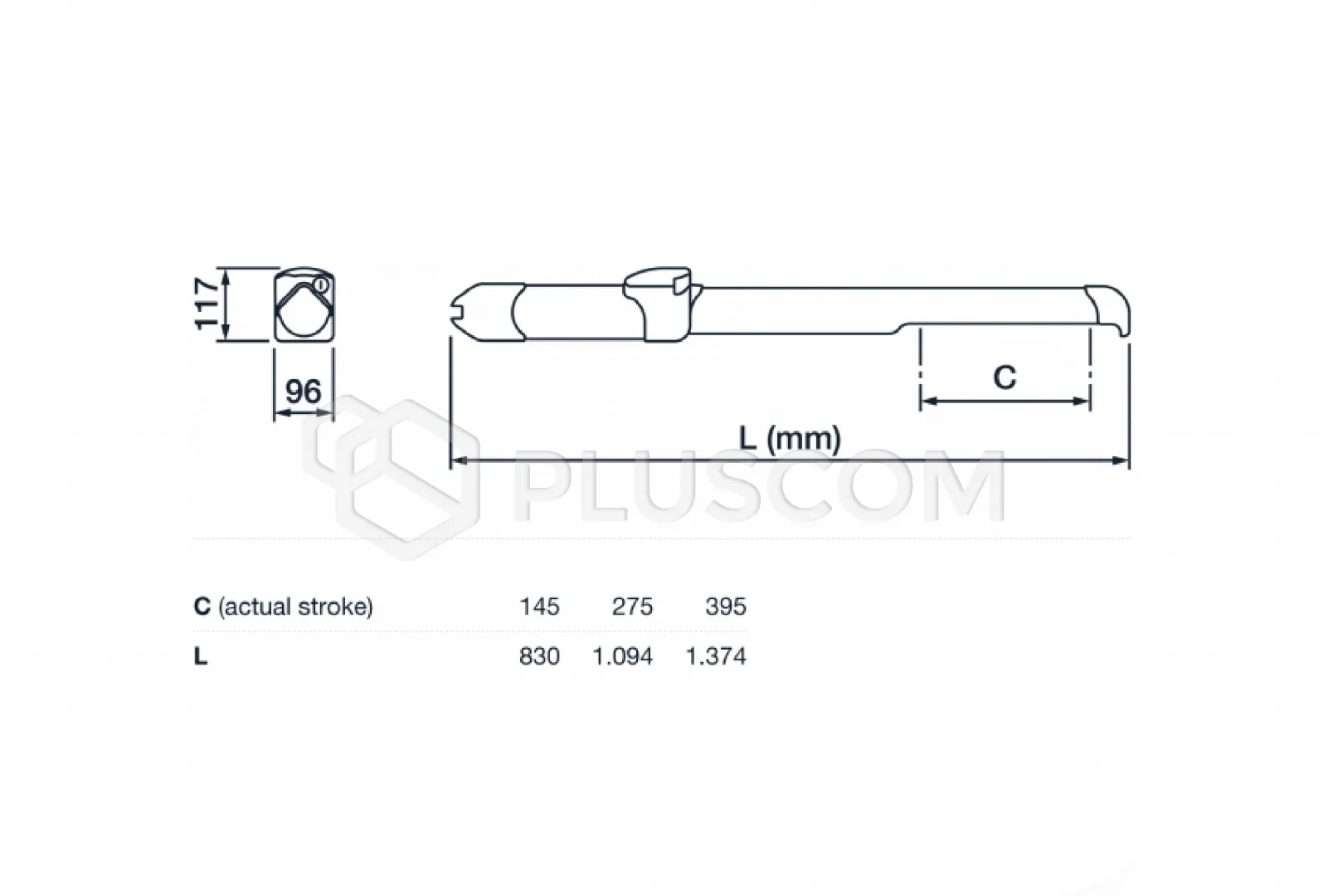

  • Rod stroke: 280 mm
  • Power supply: 230V - 50Hz
  • Power consumption: 250W
  • Power efficiency: 180W
  • Max. current consumption: 1.2A
  • Pump capacity: 1.4 l/min
  • Rod diameter: 20 mm
  • Linear opening speed: ~ 17 mm/s
  • Linear closing speed: ~ 14 mm/s
  • Opening force: 0 ÷ 4,200 N
  • Closing force: 0 ÷ 5,400 N
  • Operating temperature: -25°C ÷ +80°C *
  • Oil type: 708L
  • Protection class: IP67
  • Frequency of use: very intensive
  • Weight: 11 kg
