Fadini 787N3L COMBI 787 P3 Underground actuator for swing gates

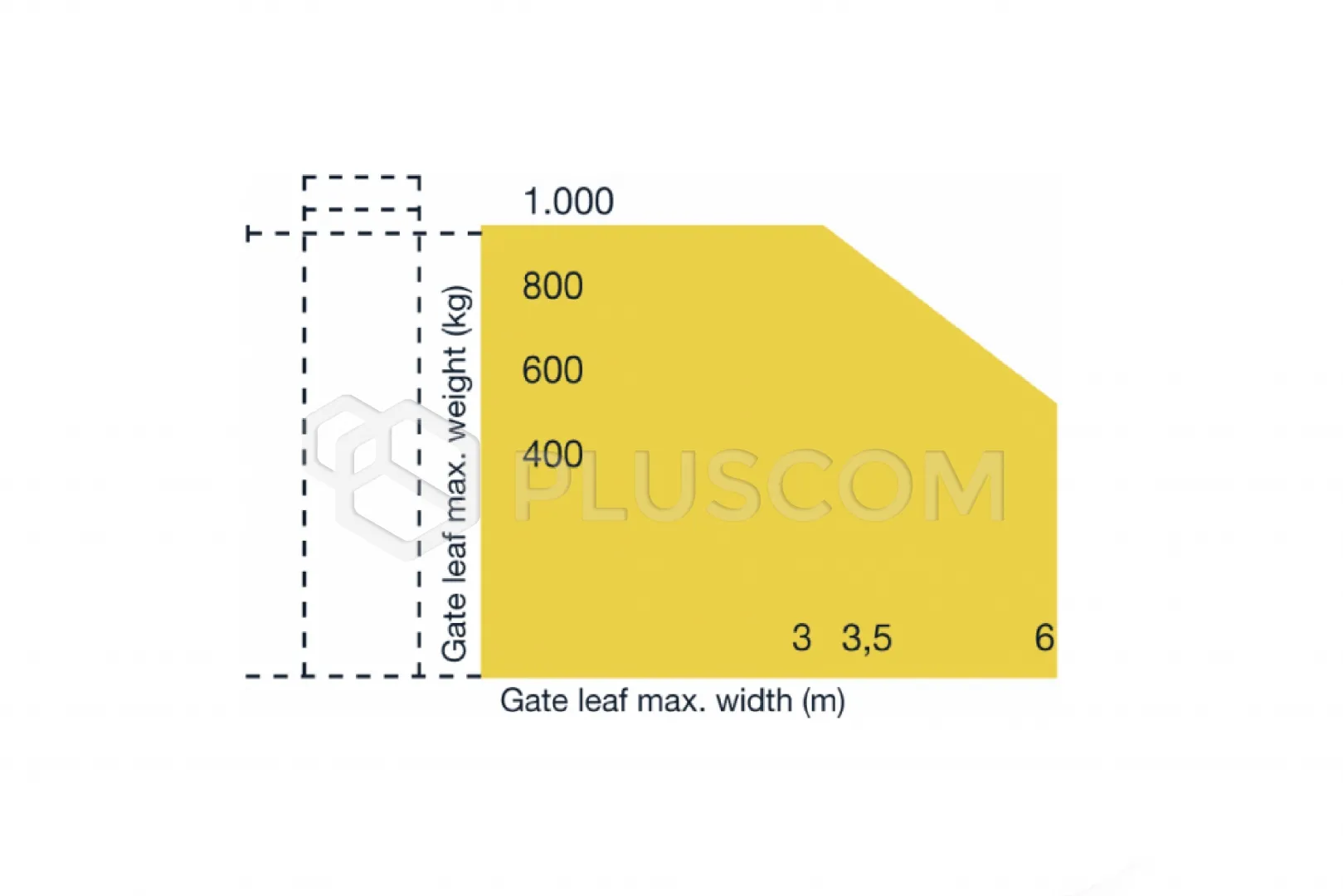

COMBI 787 230V oil-hydraulic actuator with electric power supply cable for
swing gates up to 1000 kg and with a leaf length of up to 6 m. For residential
and industrial use.
ATTENTION! For non-locking - non-self-locking actuators, an
electric lock is required.
COMPACT, STRONG AND HIDDEN

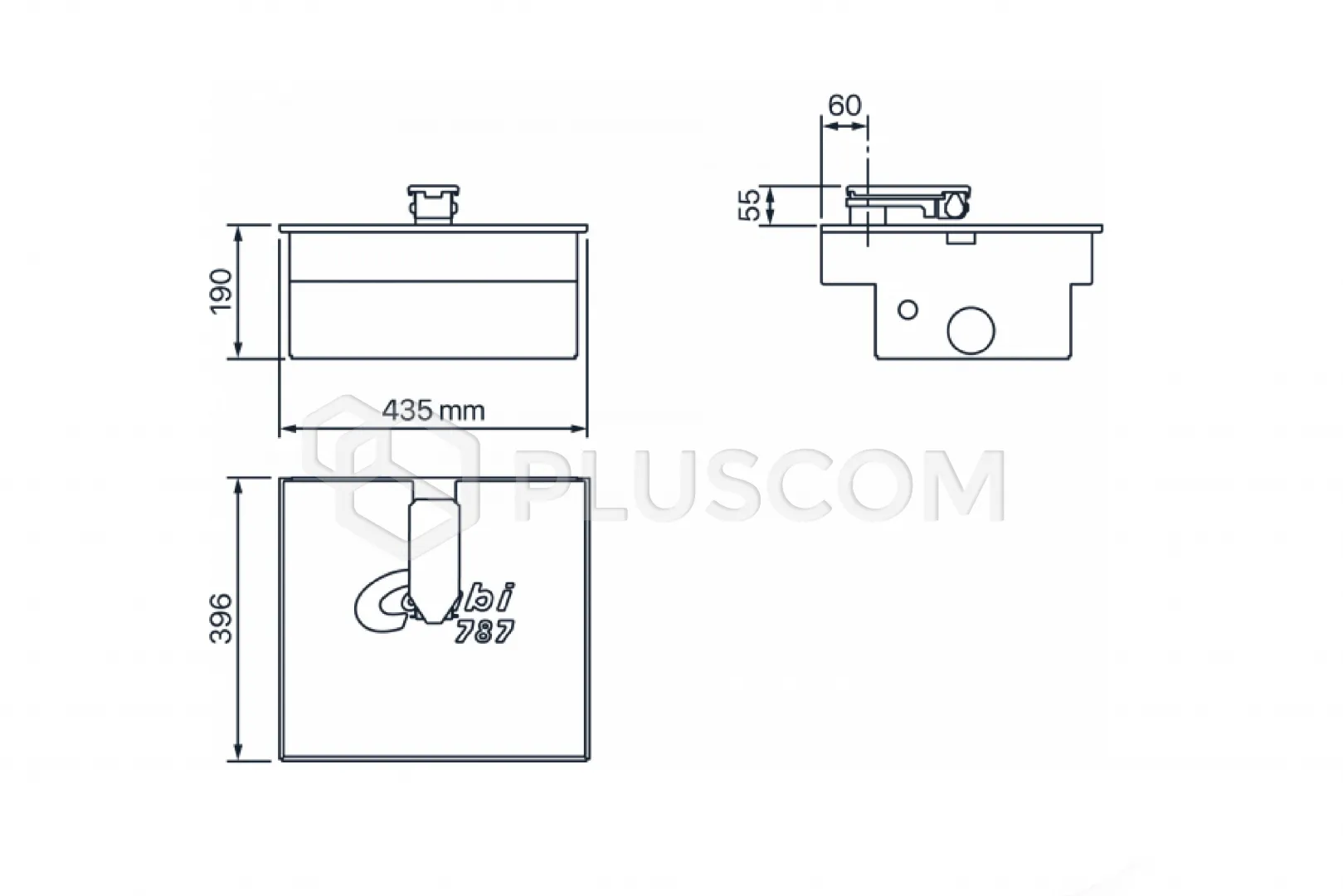

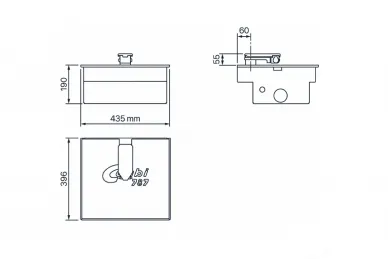

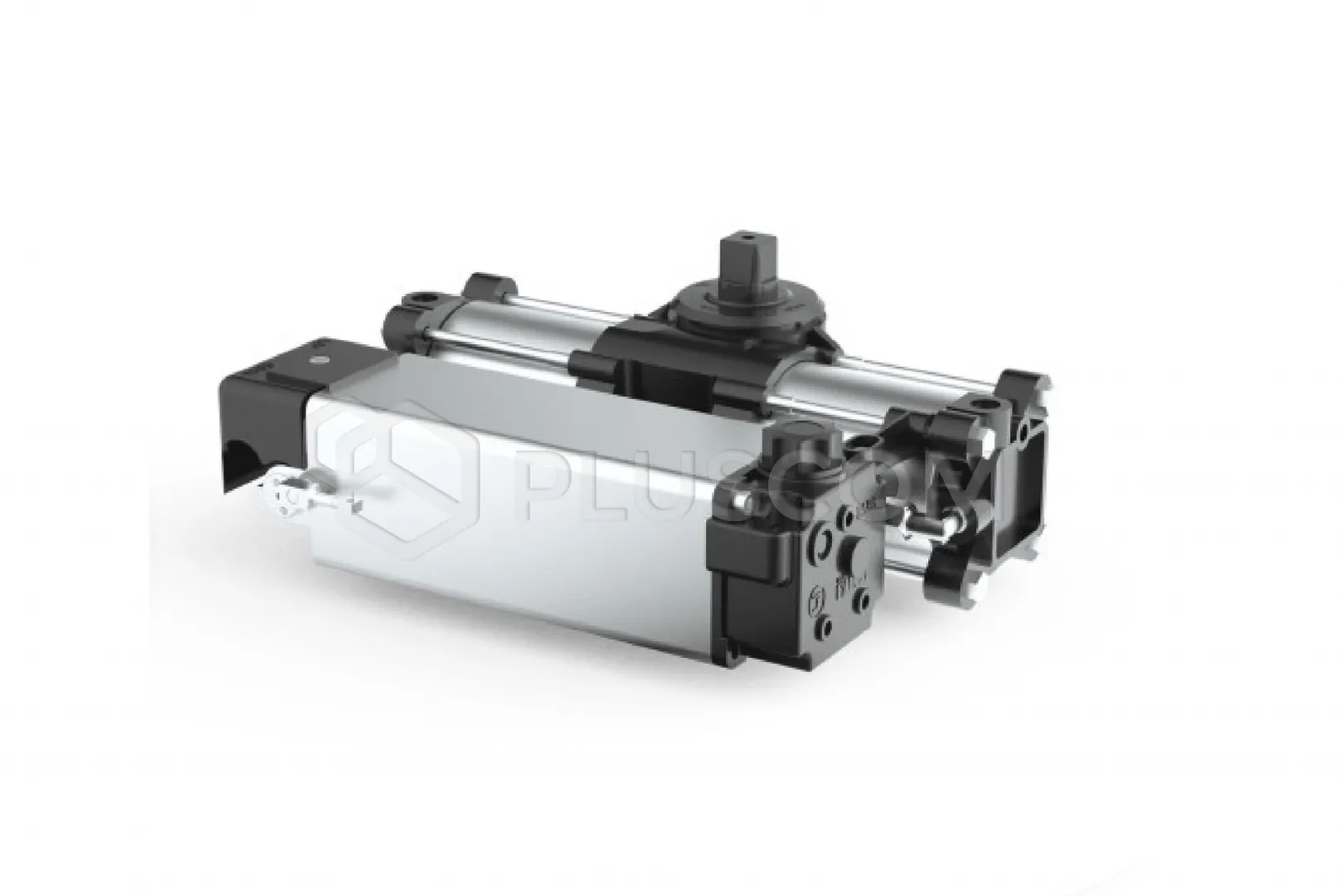

Hydraulic actuator with pump, placed in a
machined steel housing (5 mm thick electrolytically galvanized) to ensure high
corrosion resistance. The box is available in AISI 304 stainless steel.
Mechanical stops, adjustable both in closing and opening, can be mounted
directly inside the housing. The actuator can be mounted or dismantled without
having to dismantle the gate leaf. It does not require any particular
maintenance.
HYDRAULIC
A wide range of versions suitable for any type of
installation: non-self-locking without hydraulic lock, with bidirectional
hydraulic lock (self-locking), with the possibility of hydraulic self-locking
slowing down in opening and closing and with flow regulator. Safety against
crushing is ensured by by-pass valves mounted on the actuator. Opening angle up
to 110°; safe and silent movement.
SAFE
Emergency release pressed steel lock, easy to operate both from
the inside and outside using a special key with an ergonomic handle.
REVERSIBLE WITHOUT LOCKING
Without hydraulic locking. Manual opening
and closing of the gate leaf is always possible. In this type of installation,
an electric lock or latch must be used to keep the gate closed.
HYDRAULICS POWER TECHNOLOGY
A cylinder using a system of transferring
movement using hydraulic oil under pressure.
Technical data:
- Power supply: 230V - 50Hz
- Power consumption: 330W
- Current consumption: 1.8A
- Power efficiency: 0.24 kW / 0.33 HP
- Torque: 250 - 400 Nm
- Operating temperature: -20°C ÷ +80°C *
- Protection class: IP67
- Oil type: 708L
- Opening / closing time: ~ 23 s
- Weight with box: 34 kg
- Use frequency: intensive
* -40°C with specific optional accessories
