Fadini 7879N3L COMBI 787 P3 Underground cylinder with manual opening function and flow regulator

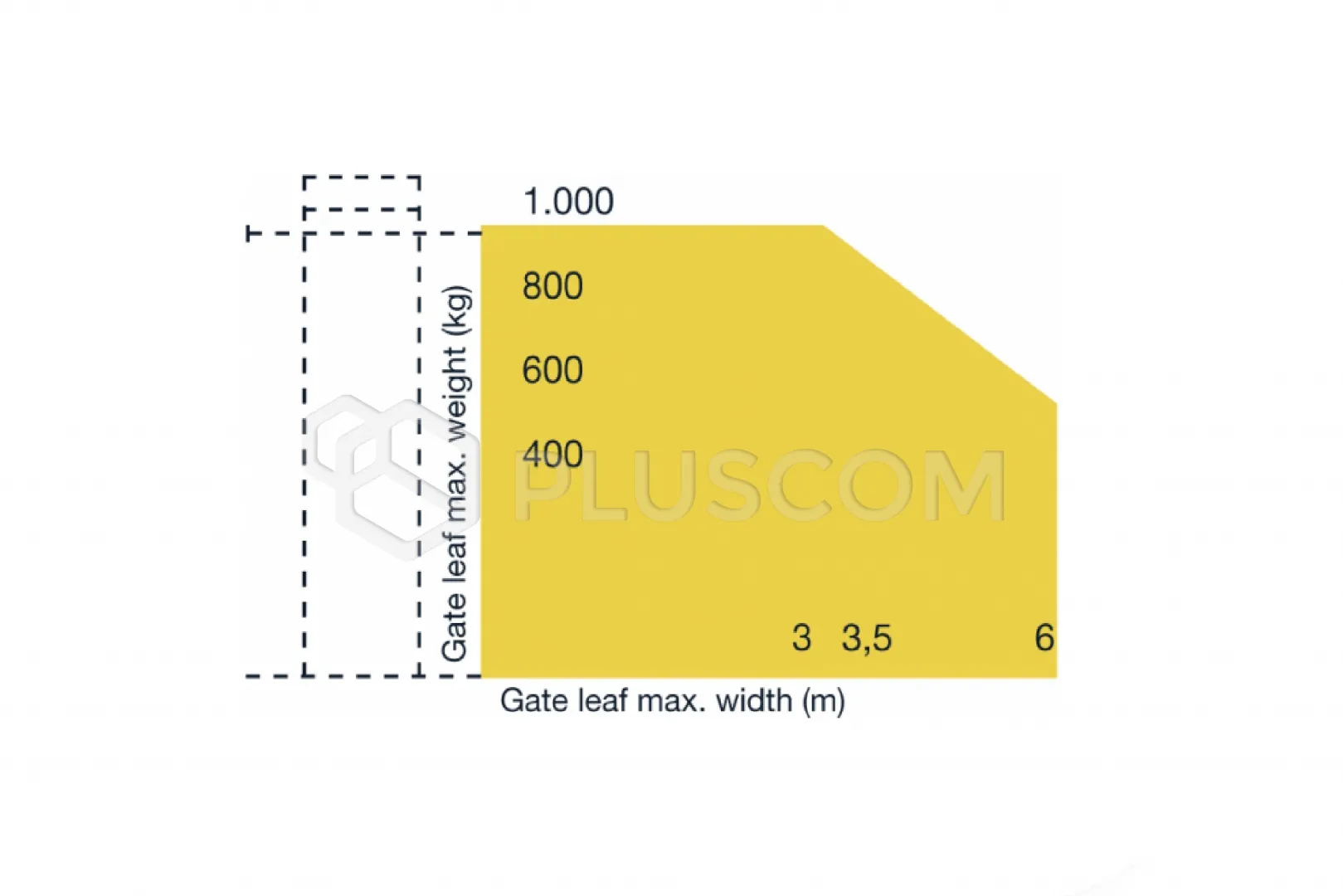

COMBI 787 230V oil-hydraulic cylinder with manual opening function, flow regulator and electric power supply cable for swing gates up to 1000 kg and with a leaf length of up to 6 m. For residential and industrial use.
ATTENTION! For non-locking - non-self-locking cylinders, an electric lock is required.
COMPACT, STRONG AND HIDDEN

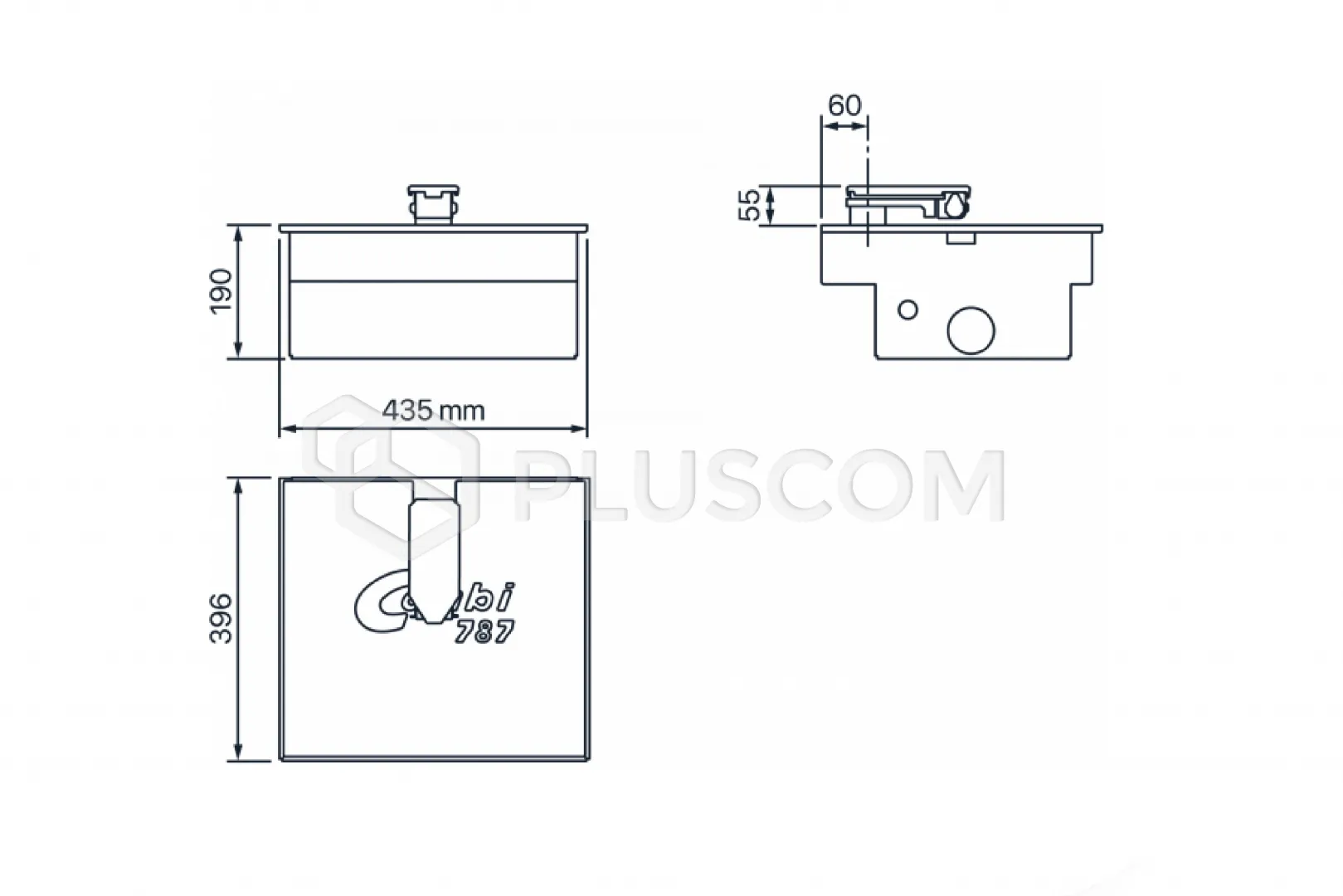

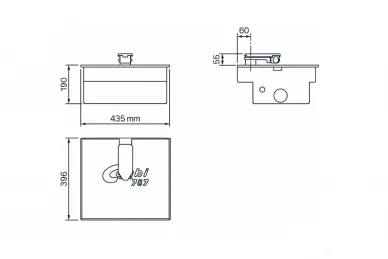

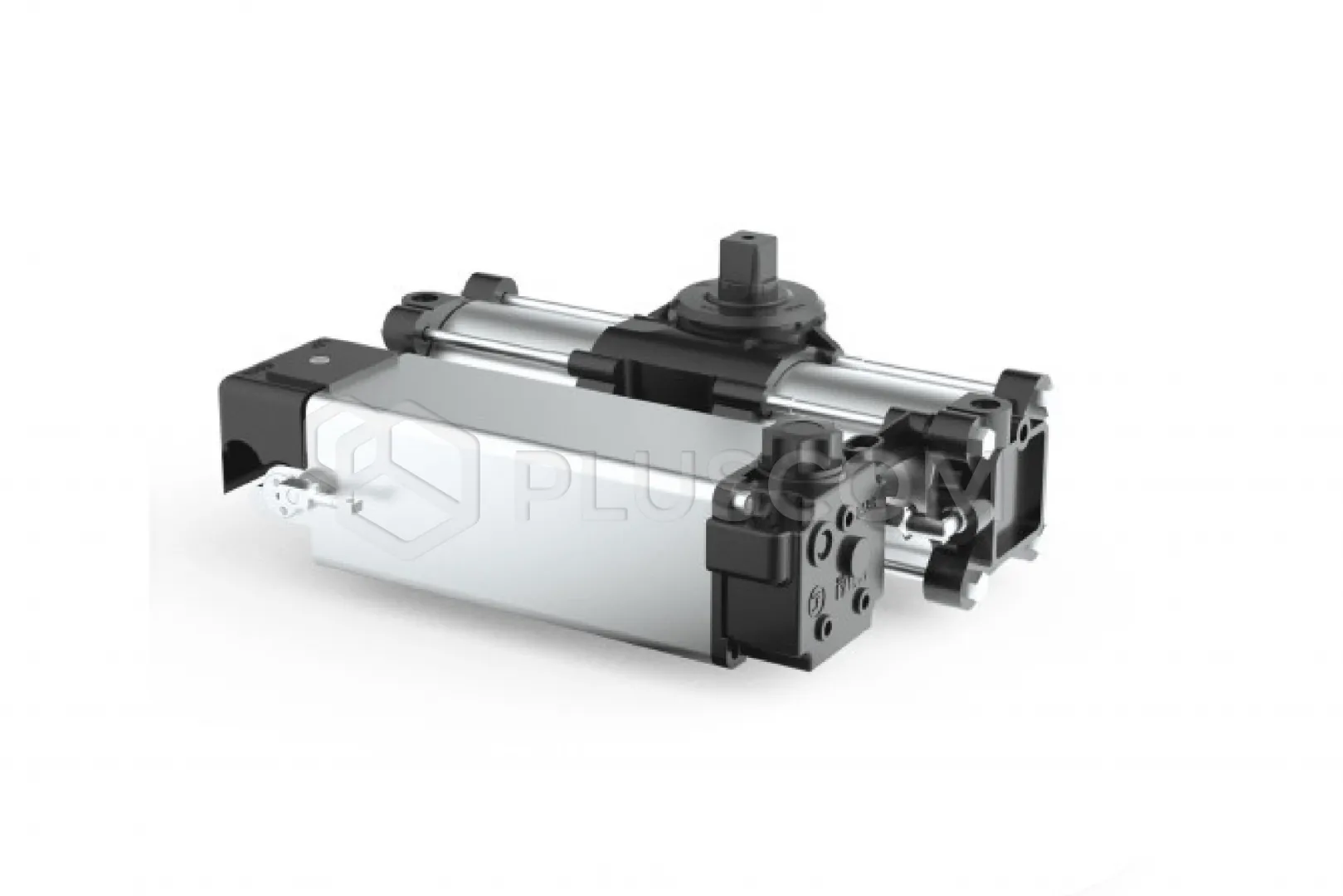

Hydraulic cylinder with pump, placed in a machined steel housing (5 mm thick electrolytically galvanized) to ensure high corrosion resistance. The box is available in AISI 304 stainless steel.
Mechanical stops, adjustable both in closing and opening, can be mounted directly inside the housing. The actuator can be mounted or dismantled without having to dismantle the gate leaf. It does not require any particular maintenance.
HYDRAULIC
A wide range of versions suitable for any type of installation: non-self-locking without hydraulic lock, with bidirectional hydraulic lock (self-locking), with the possibility of hydraulic self-locking slowing down in opening and closing and with flow regulator. Safety against crushing is ensured by by-pass valves mounted on the actuator. Opening angle up to 110°; safe and silent movement.
SAFE
Emergency release pressed steel lock, easy to operate both from the inside and outside using a special key with an ergonomic handle.
FLOW REGULATOR
A hydraulic actuator equipped with a flow regulator that allows you to control the speed of the gate leaf during the entire opening and closing phase.
REVERSIBLE WITHOUT LOCKING
Without hydraulic locking. Manual opening and closing of the gate leaf is always possible. In this type of installation, an electric lock or latch must be used to keep the gate closed.
HYDRAULICS POWER TECHNOLOGY
An actuator that uses a system of transferring movement using hydraulic oil under pressure.
Technical data:
- Power supply: 230V - 50Hz
- Power consumption: 330W
- Current consumption: 1.8A
- Power efficiency: 0.24 kW / 0.33 HP
- Torque: 250 - 400 Nm
- Operating temperature: -20°C ÷ +80°C *
- Protection class: IP67
- Oil type: 708L
- Open / close time: ~ 23 s
- Weight with box: 34 kg
- Use frequency: intensive
* -40°C with specified optional accessories
