Fadini 7878N3L COMBI 787 P3 Underground actuator with manual opening and slowdown function

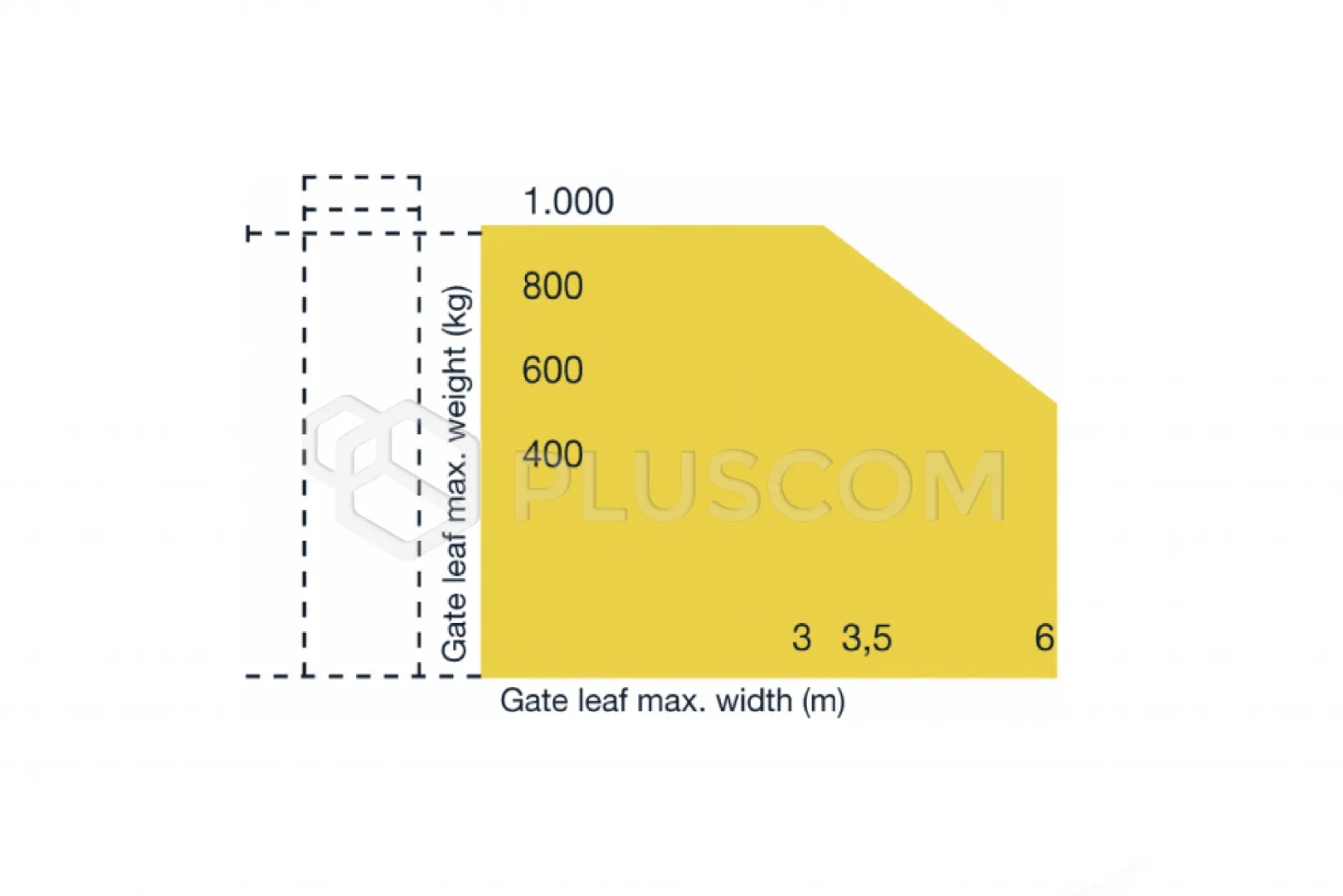

COMBI 787 230V oil-hydraulic actuator with manual opening function, slowdown function and electric power supply cable for swing gates up to 1000 kg and with a leaf length of up to 6 m. For residential and industrial use.
COMPACT, STRONG AND HIDDEN

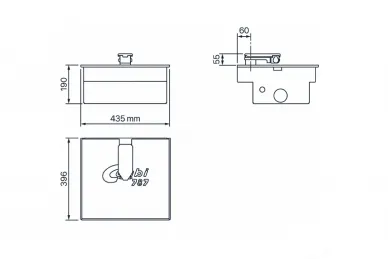

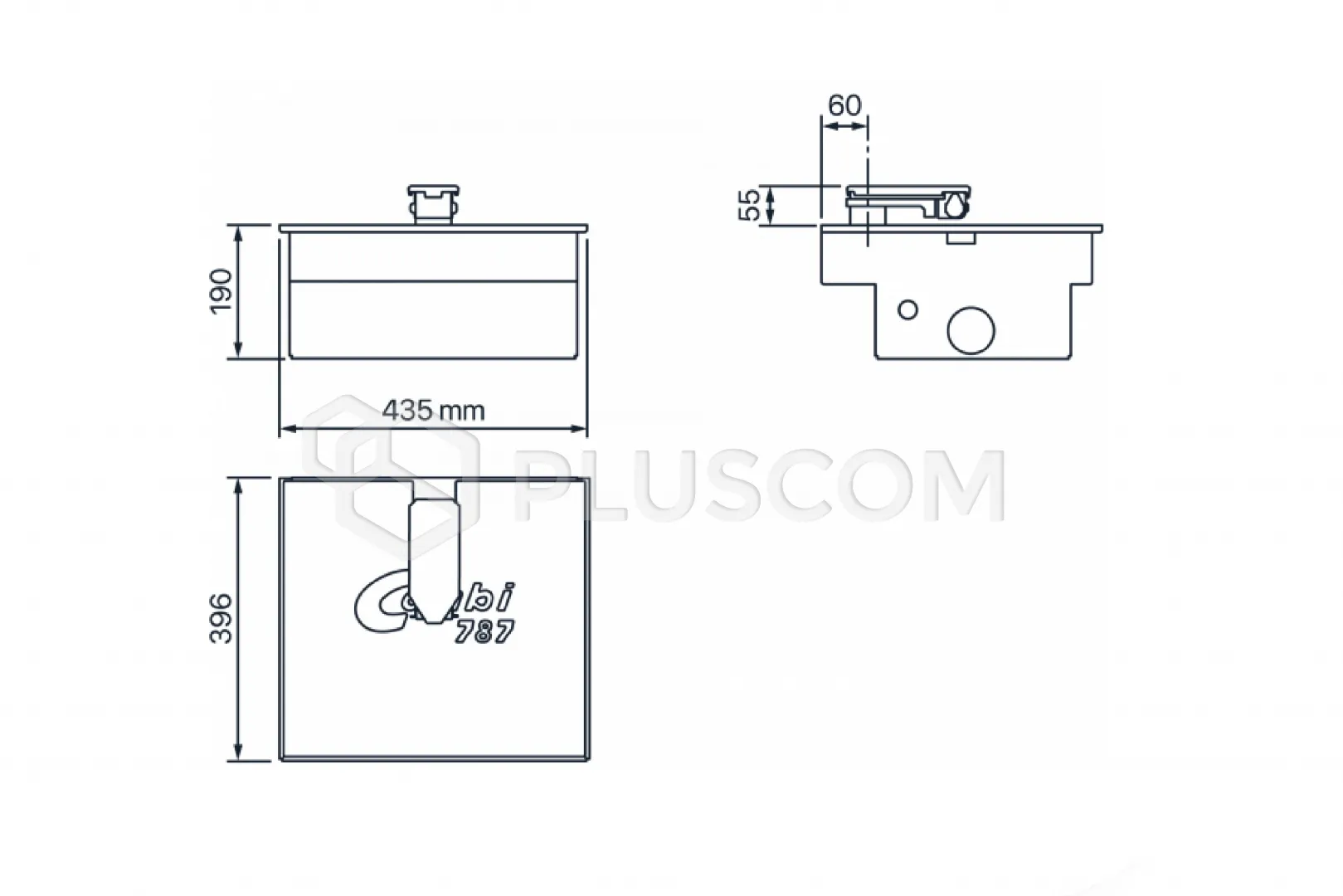

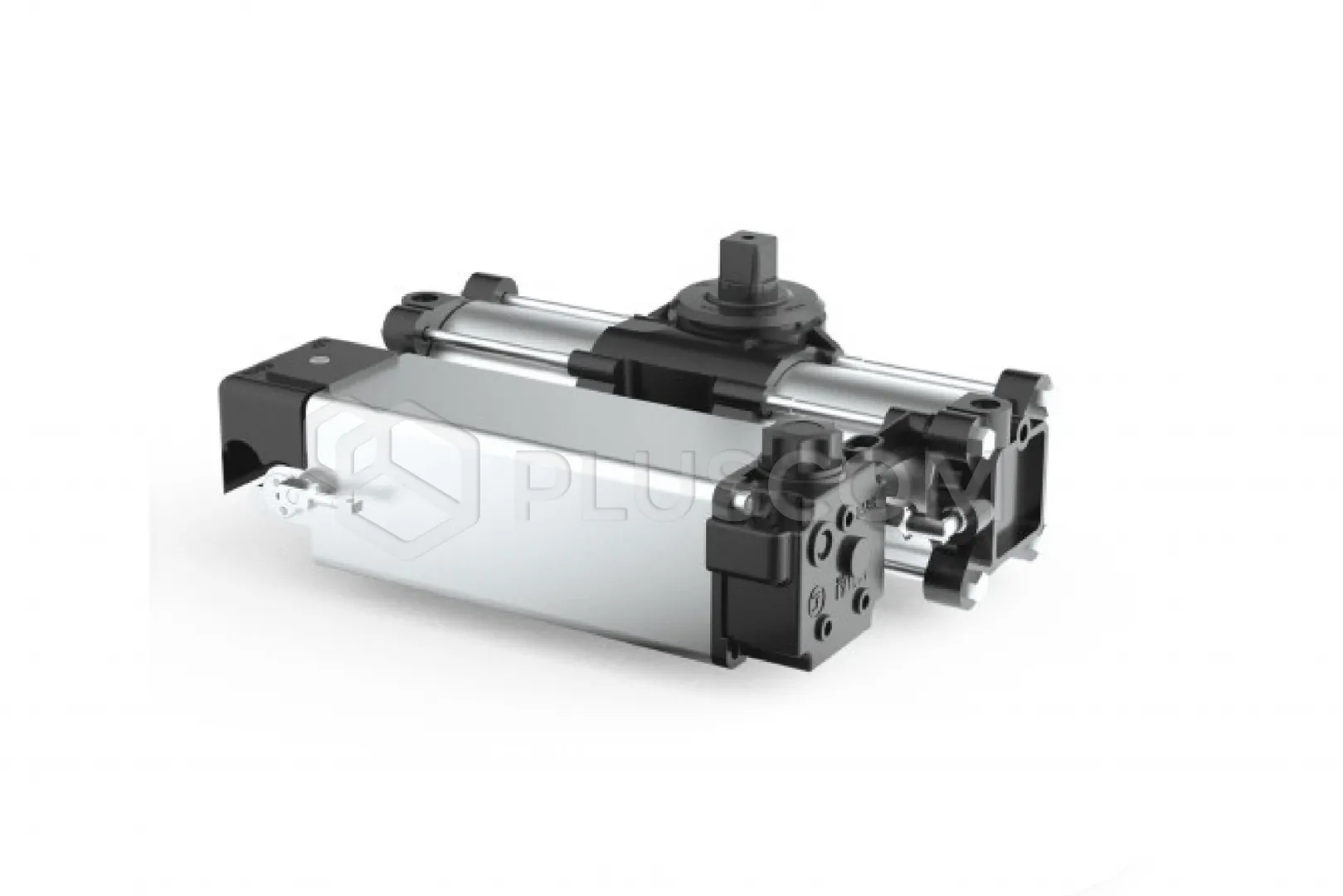

Hydraulic actuator with pump, housed in a machined steel housing (5 mm thick electrolytically galvanized) to ensure high corrosion resistance. The box is available in AISI 304 stainless steel.
Mechanical stops, adjustable both in closing and opening, can be mounted directly inside the housing. The actuator can be installed or removed without having to dismantle the gate leaf. It does not require any particular maintenance.
HYDRAULIC
A wide range of versions suitable for any type of installation: non-self-locking without hydraulic lock, with two-way hydraulic lock (self-locking), with the possibility of hydraulic self-locking slowing down on opening and closing and with a flow regulator. Safety against crushing is ensured by the bypass valves mounted on the actuator. Opening angle up to 110°; safe and silent movement.
SAFE
Emergency release pressed steel lock, easy to operate both from the inside and outside using a special key with an ergonomic handle.
REVERSIBLE WITHOUT LOCKING
Without hydraulic lock. Manual opening and closing of the gate leaf is always possible. In this type of installation, an electric lock or latch must be used to keep the gate closed.
HYDRAULICS POWER TECHNOLOGY
A cylinder that uses a system of transferring movement using hydraulic oil under pressure.
Technical data:
- Power supply: 230V - 50Hz
- Power consumption: 330W
- Current consumption: 1.8A
- Power efficiency: 0.24 kW / 0.33 HP
- Torque: 250 - 400 Nm
- Operating temperature: -20°C ÷ +80°C *
- Protection class: IP67
- Oil type: 708L
- Open / close time: ~ 23 s
- Weight with box: 34 kg
- Use frequency: intensive
* -40°C with specified optional accessories
