Fadini 7877BB3L COMBI 787 P3 Underground cylinder with two-way locking system

902,97 EUR including 23.00% VAT
Product code: #37106
Manufacturer: Fadini
  • Power supply: 230V AC

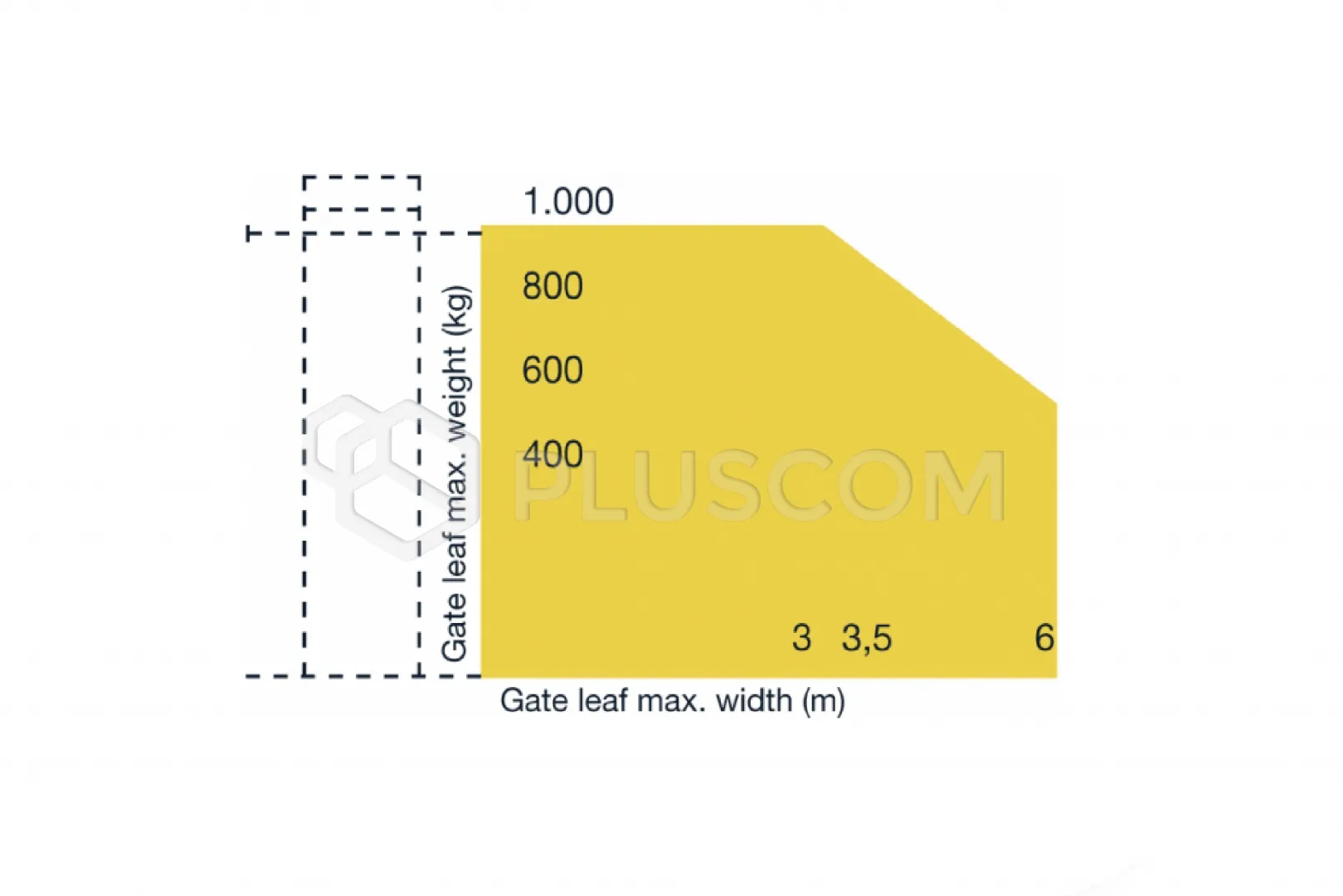

  • Max. leaf length: 6m
  • Max. leaf weight: 1000kg
  • Opening angle up to 110°
  • Protection class: IP 67
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
4,56 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 7873L Gate support foundation casing, complete with cover, galvanized steel Fadini 7872L Complete emergency opening kit with key for COMBI 787 drive Fadini 7871L Foundation support casing supporting the gate, complete with cover, galvanized steel Fadini 708L FADINI HF.PLI oil for hydraulic installations canister 2L

Fadini 7877BB3L COMBI 787 P3 Underground actuator with two-way locking system

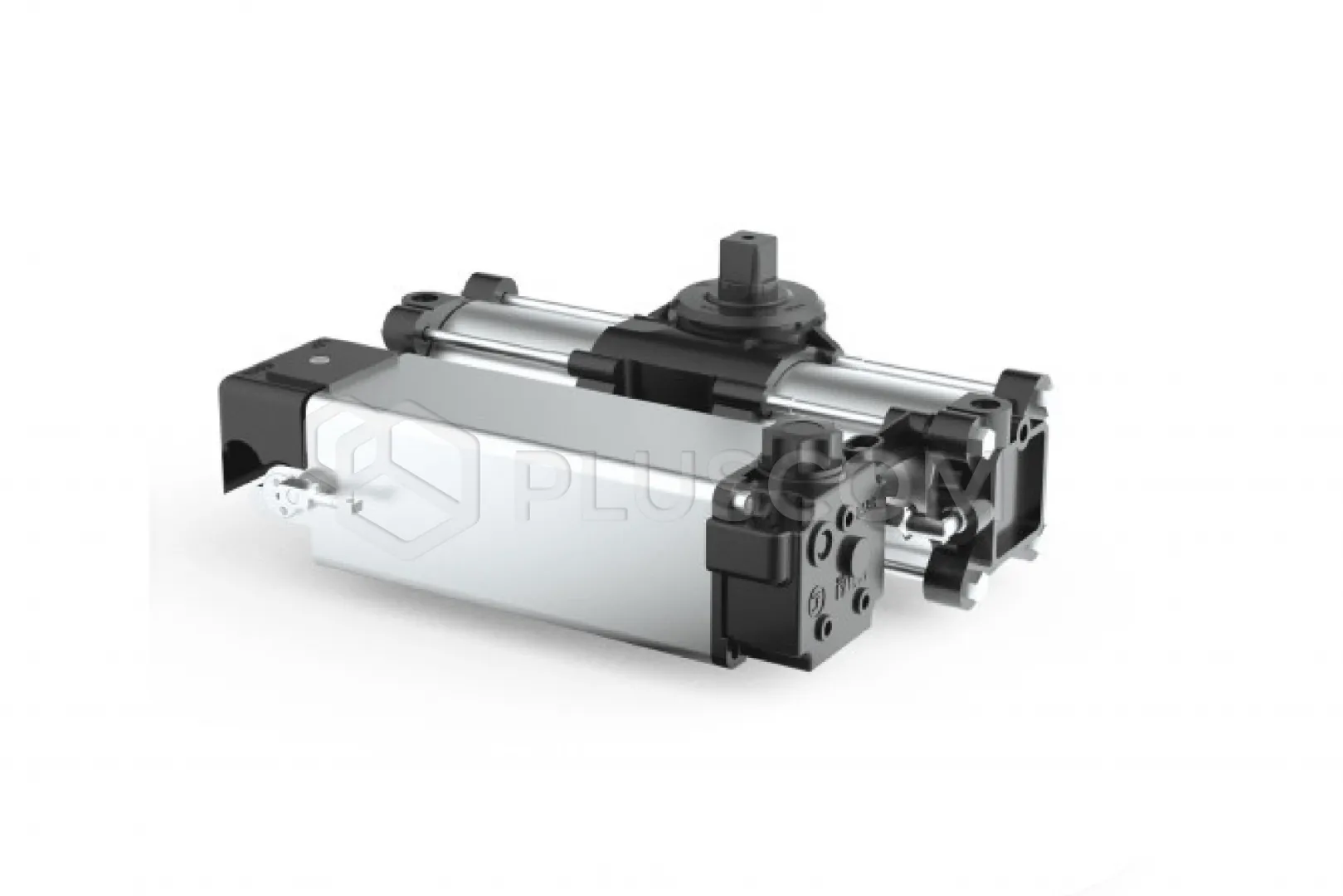

Underground actuator 7877BB3L COMBI 787 P3 hydraulic two-way locking system (without manual opening function) (self-locking), 230 V AC 50 Hz 1-phase power supply. For swing gates weighing up to 1000 kg and a leaf length of up to 6 m, opening angle up to 110°. Hydraulic actuator with hydraulic release system and power cable.

COMPACT, STRONG AND HIDDEN

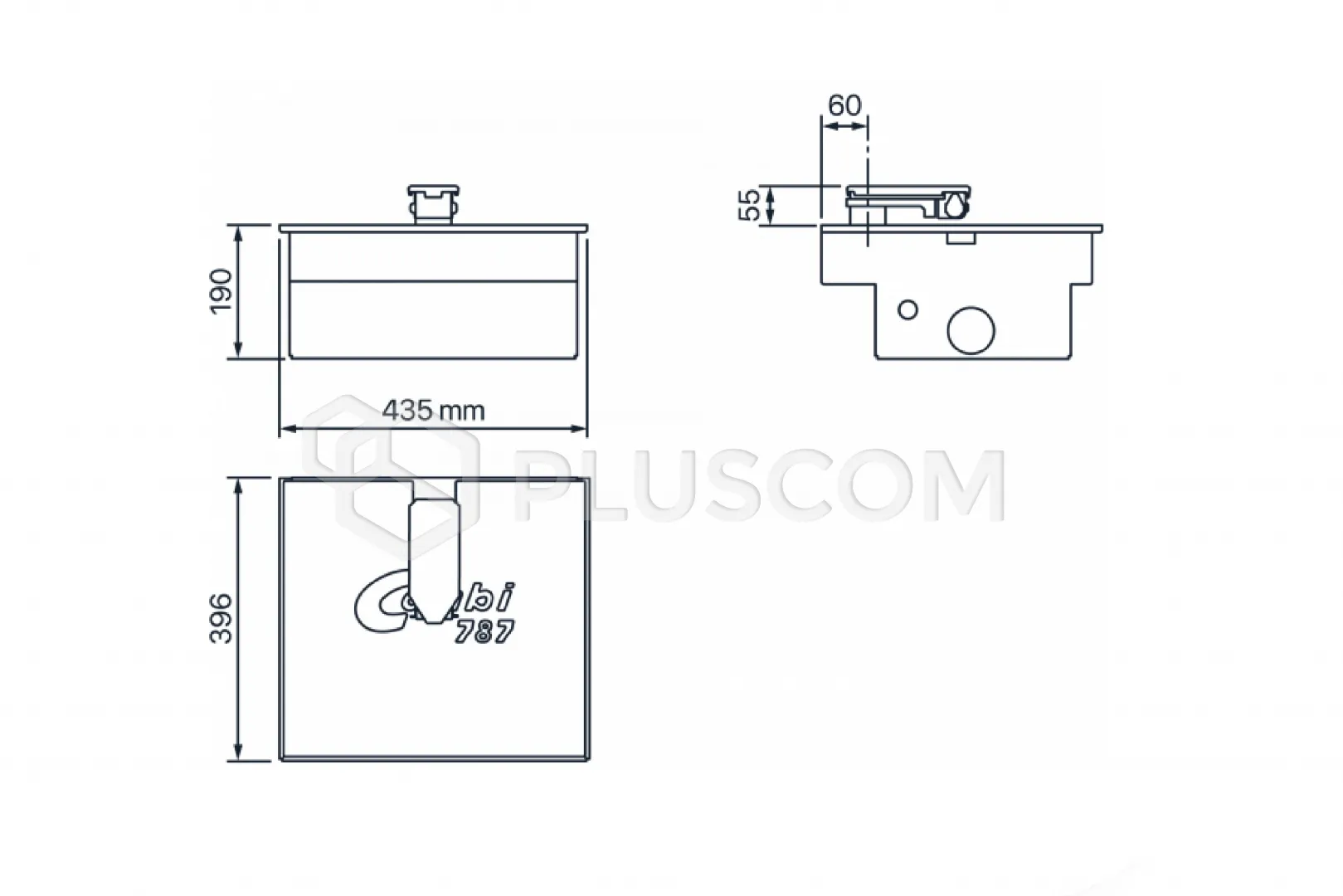

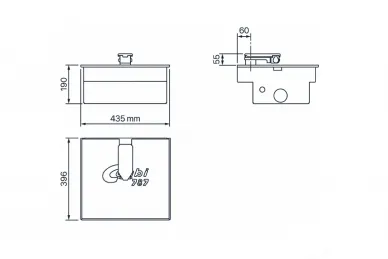

Hydraulic actuator with pump, housed in a machined steel housing (5 mm thick electrolytically galvanized) to ensure high corrosion resistance. The box is available in AISI 304 stainless steel. The mechanical stops, adjustable both in closing and opening, can be fixed directly inside the housing. The actuator can be installed or removed without having to dismantle the gate leaf. It does not require any particular maintenance.

HYDRAULIC

A wide range of versions suitable for any type of installation: non-self-locking without hydraulic lock, with bidirectional hydraulic lock (self-locking), with the possibility of hydraulic self-locking slowing down in opening and closing and with flow regulator. Safety against crushing is ensured by the bypass valves mounted on the actuator. Opening angle up to 110°; safe and silent movement.

SAFE

Emergency release pressed steel lock, easy to operate both from the inside and outside using a special key with an ergonomic handle.

Technical data:

  • Power supply (Vac – Hz): 230 - 50
  • Power consumption (W): 330
  • Current consumption (A): 1.8
  • Power efficiency (kW / HP): 0.24 / 0.33
  • Torque (Nm): 250-400
  • Operating temperature (°C): -20 ÷ +80
  • Protection class: IP 67
  • Oil type: 708L
  • Opening/closing time (s): ~ 23 [110°]
  • Weight with box (kg): 34
  • Use frequency: intensive
Download
User manual 2.7 MB
