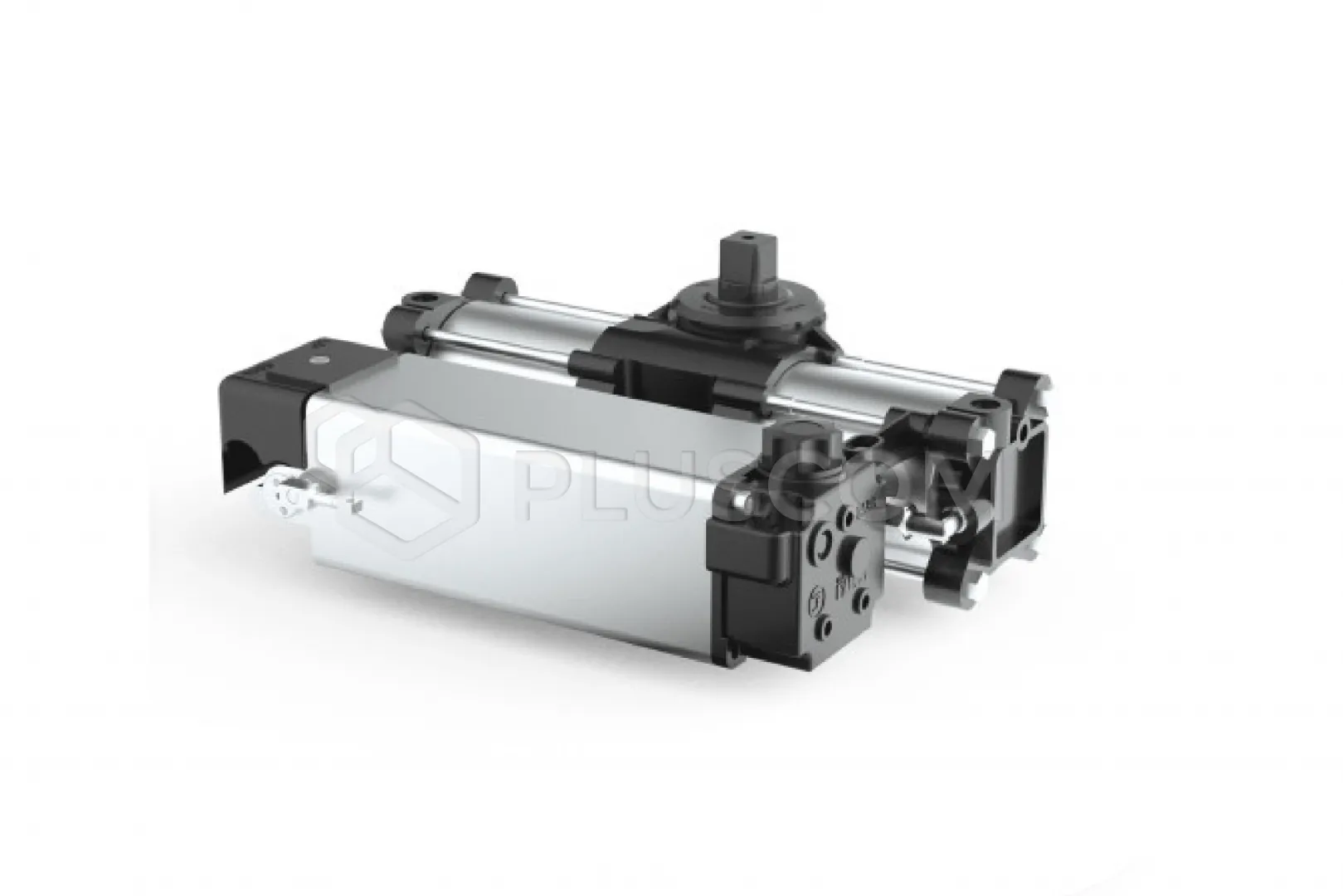

Fadini 787789BB3L COMBI 787 P3 Underground actuator without manual opening function, with slow-down function and flow regulator

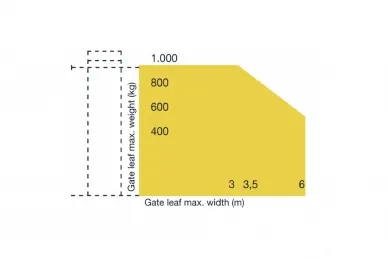

COMBI 787 230V oil-hydraulic actuator without manual opening function and with slow-down function, flow regulator and electric power cable for swing gates up to 1000 kg and with a leaf length of up to 6 m. For residential and industrial use.
COMPACT, STRONG AND HIDDEN
Hydraulic actuator with pump, housed in a machined steel housing (5 mm thick electrolytically galvanized) to ensure high corrosion resistance. The box is available in AISI 304 stainless steel.
Mechanical stops, adjustable both in closing and opening, can be mounted directly inside the housing. The actuator can be installed or removed without having to dismantle the gate leaf. It does not require any special maintenance.
HYDRAULIC
A wide range of versions suitable for any type of installation: non-self-locking without hydraulic lock, with bidirectional hydraulic lock (self-locking), with the possibility of hydraulic self-locking slowing down on opening and closing and with a flow regulator. Safety against crushing is ensured by the bypass valves mounted on the actuator. Opening angle up to 110°; safe and silent movement.
SAFE
Emergency release pressed steel lock, easy to operate both from the inside and outside using a special key with an ergonomic handle.
SELF-LOCKING DEVICE
A hydraulic actuator with a self-locking device that slows down the movement of the gate leaf, depending on the model, during the opening, closing or both phases. An electromechanical actuator equipped with an electronic brake and a slowing system during the opening and closing of the gate leaf.
FLOW REGULATOR
A hydraulic actuator equipped with a flow regulator that allows the speed of the gate leaf to be controlled during the entire opening and closing phase.
BIDIRECTIONAL HYDRAULIC LOCK
The gate remains locked in both the closed and open positions (when the motor is not running). To manually open or close the leaf, the actuator must first be unlocked.
POWER HYDRAULICS TECHNOLOGY
An actuator that uses a system of transferring movement using pressurized hydraulic oil.
Technical data:
- Power supply: 230V - 50Hz
- Power consumption: 330W
- Current consumption: 1.8A
- Power efficiency: 0.24 kW / 0.33 HP
- Torque: 250 - 400 Nm
- Operating temperature: -20°C ÷ +80°C *
- Protection class: IP67
- Oil type: 708L
- Open / close time: ~ 23 s
- Weight with box: 34 kg
- Use frequency: intensive
* -40°C with specified optional accessories
