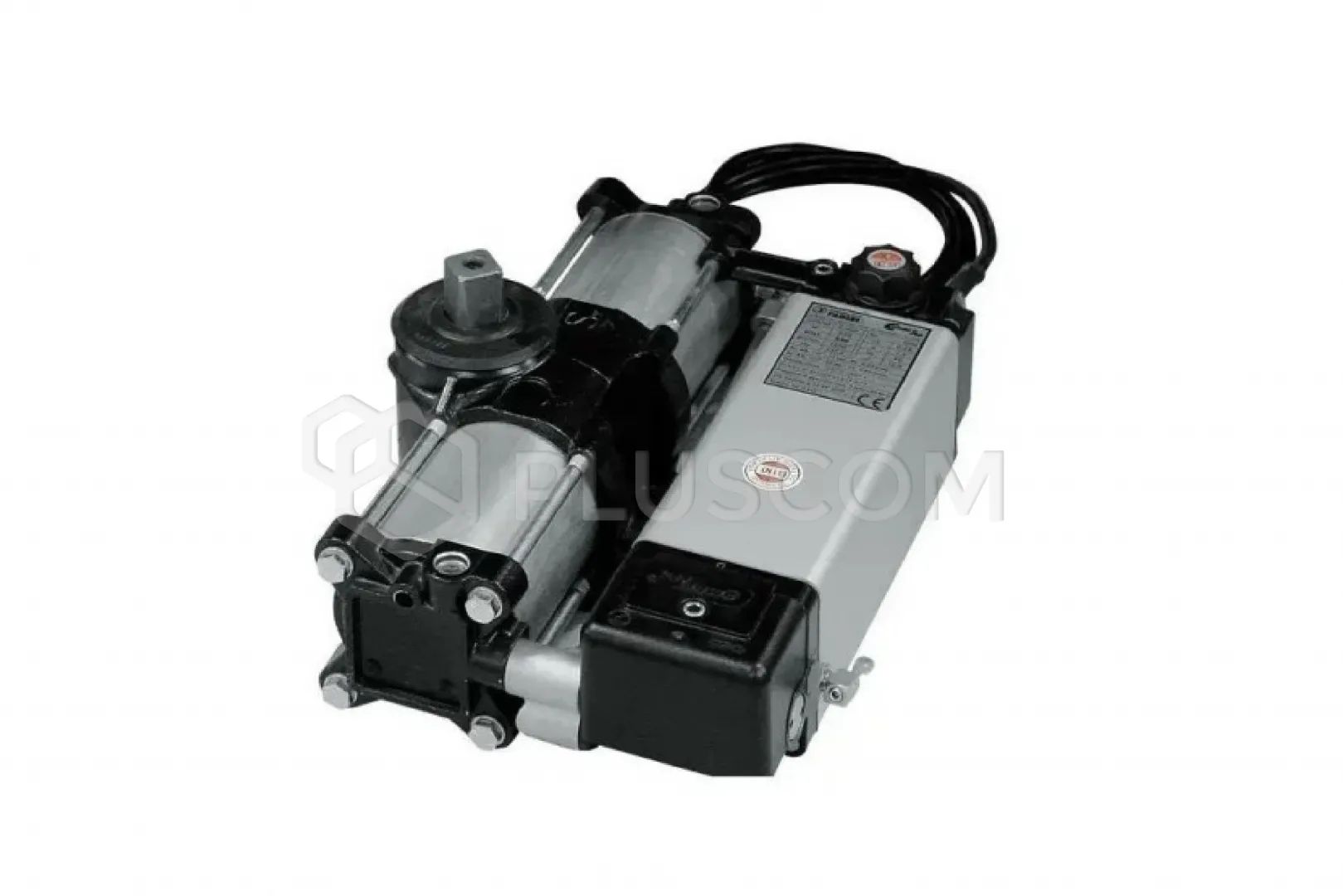

Fadini 769N3SXL COMBI 740 oil-hydraulic actuator with manual
opening function (left)
COMBI 740 (175°) 230V oil-hydraulic actuator with manual
opening function and electric power supply cable for swing gates up to 700 kg
and with a leaf length of up to 3 m (left). For residential and industrial use.
ATTENTION! For non-locking - non-self-locking actuators,
an electric lock is required.
COMPACT, STRONG AND HIDDEN
Hydraulic actuator with pump,
placed in a housing made of machined steel (3 mm thick electrolytically galvanized) to ensure high corrosion resistance. Housing
available in AISI 304 stainless steel. Does not require special
maintenance.
HYDRAULIC
Wide range of versions (right and left) suitable
for any type of installation: non-self-locking without hydraulic lock, with
bidirectional hydraulic lock (self-locking), with possibility of hydraulic
self-locking slowing on opening and closing and with flow
regulator. Safety against crushing is ensured by by-pass valves
mounted on the actuator. Opening angle up to 110° or up to 175°; safe and silent
movement.
SAFE
Emergency release pressed steel lock, easy to
operate both from inside and outside using a special key with
ergonomic handle.
TESTED AND CERTIFIED
CE marked.
-40 °C
Dedicated accessory technology enabling the use of
the hydraulic cylinder at extremely low temperatures, exceeding
-40 °C, without the risk of freezing.
Special accessories for different types of applications:
- HELIOS 29 board for ELPRO control units
- Temperature sensor for hydraulic control units
- Heating element for automatic posts
Technical data:
- Power supply: 230V - 50Hz
- Power consumption: 250W
- Current consumption: 1.2A
- Power efficiency: 0.18 kW / 0.25 HP
- Torque: 250 - 400 Nm
- Operating temperature: -20°C ÷ +80°C *
- Protection class: IP67
- Oil type: 708L
- Opening / closing time: ~ 28 s
- Weight incl. box: 27 kg
- Use frequency: intensive
- Version: left
- Two-way hydraulic locking (self-locking): NO
- Braking slowdown: NO
- Flow regulator: NO
- Max. gate wing width: 3 m
- Max. gate wing weight: 700 kg
* -40°C with specified optional accessories
