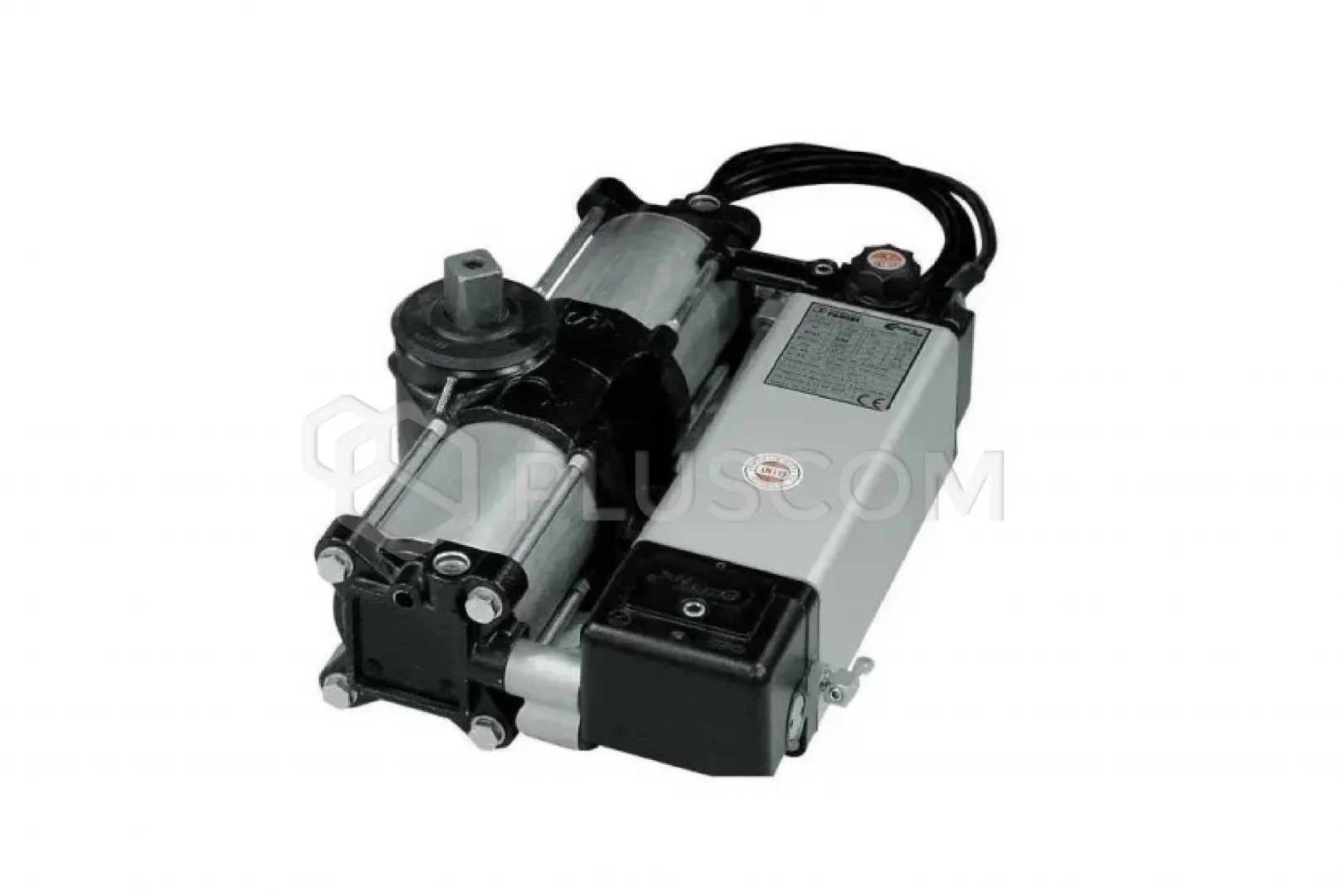

Fadini 767N3SXL COMBI 740 oil-hydraulic actuator for swing gates (left)
COMBI 740 (110°) 230V oil-hydraulic actuator with electric power supply cable for swing gates up to 700 kg and with a leaf length of up to 3 m (left). For residential and industrial use.
ATTENTION! For non-locking - non-self-locking actuators, an electric lock is required.
COMPACT, STRONG AND HIDDEN
Hydraulic actuator with pump, placed in a housing made of machined steel (3 mm thick electrolytically galvanized) to ensure high corrosion resistance. Housing available in AISI 304 stainless steel version. Does not require special maintenance.
HYDRAULIC
A wide range of versions (right and left) suitable for any type of installation: non-self-locking without hydraulic locking, with bidirectional hydraulic locking (self-locking), with the possibility of hydraulic self-locking slowing on opening and closing and with flow regulator. Safety against crushing is ensured by bypass valves mounted on the actuator. Opening angle up to 110° or up to 175°; safe and silent movement.
SAFE
Emergency release pressed steel lock, easy to operate both from the inside and from the outside using a special key with an ergonomic handle.
TESTED AND CERTIFIED
CE marking.
-40 °C
Dedicated accessory technology that allows the use of a hydraulic actuator at extremely low temperatures, exceeding -40 °C, without the risk of freezing.
Special accessories for various types of applications:
- HELIOS 29 plate for ELPRO control units
- Temperature sensor for hydraulic control units
- Heating element for automatic posts
REVERSIBLE WITHOUT LOCKING
Without hydraulic locking. Manual opening and closing of the gate leaf is always possible. In this type of installation, an electric lock or latch should be used to keep the gate closed.
HYDRAULICS POWER TECHNOLOGY
A cylinder using a motion transmission system using hydraulic oil under pressure.
Technical data:
- Power supply: 230V - 50Hz
- Power consumption: 250W
- Current consumption: 1.2A
- Power efficiency: 0.18 kW / 0.25 HP
- Torque: 250 - 400 Nm
- Operating temperature: -20°C ÷ +80°C *
- Protection class: IP67
- Oil type: 708L
- Opening / closing time: ~ 23 s
- Weight with box: 27 kg
- Use frequency: intensive
- Version: left
- Two-way hydraulic locking (self-locking): NO
- Braking slowdown: NO
- Flow regulator: NO

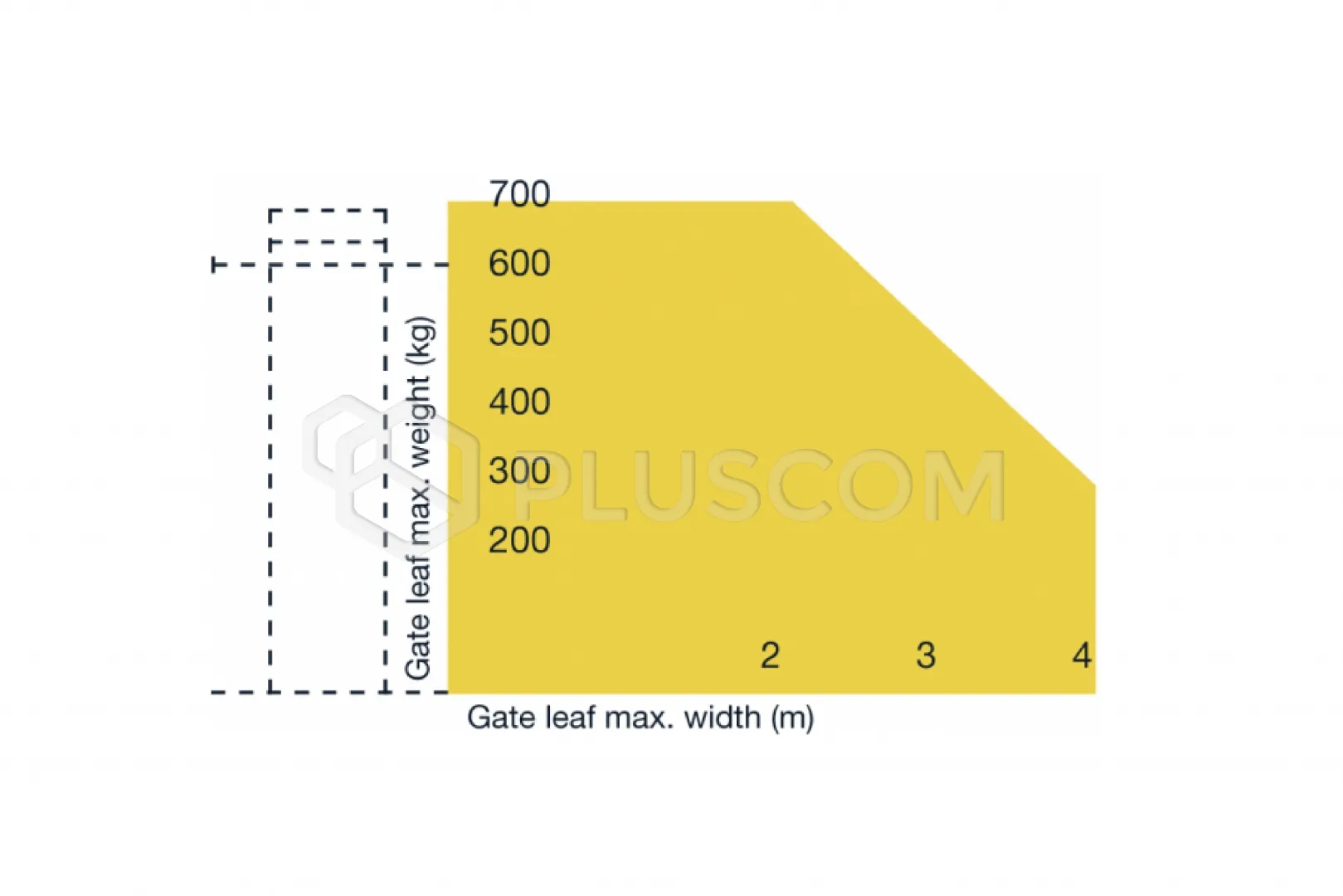

- Max. gate wing width: 3 m
- Max. gate wing weight: 700 kg
* -40°C with specified optional accessories
