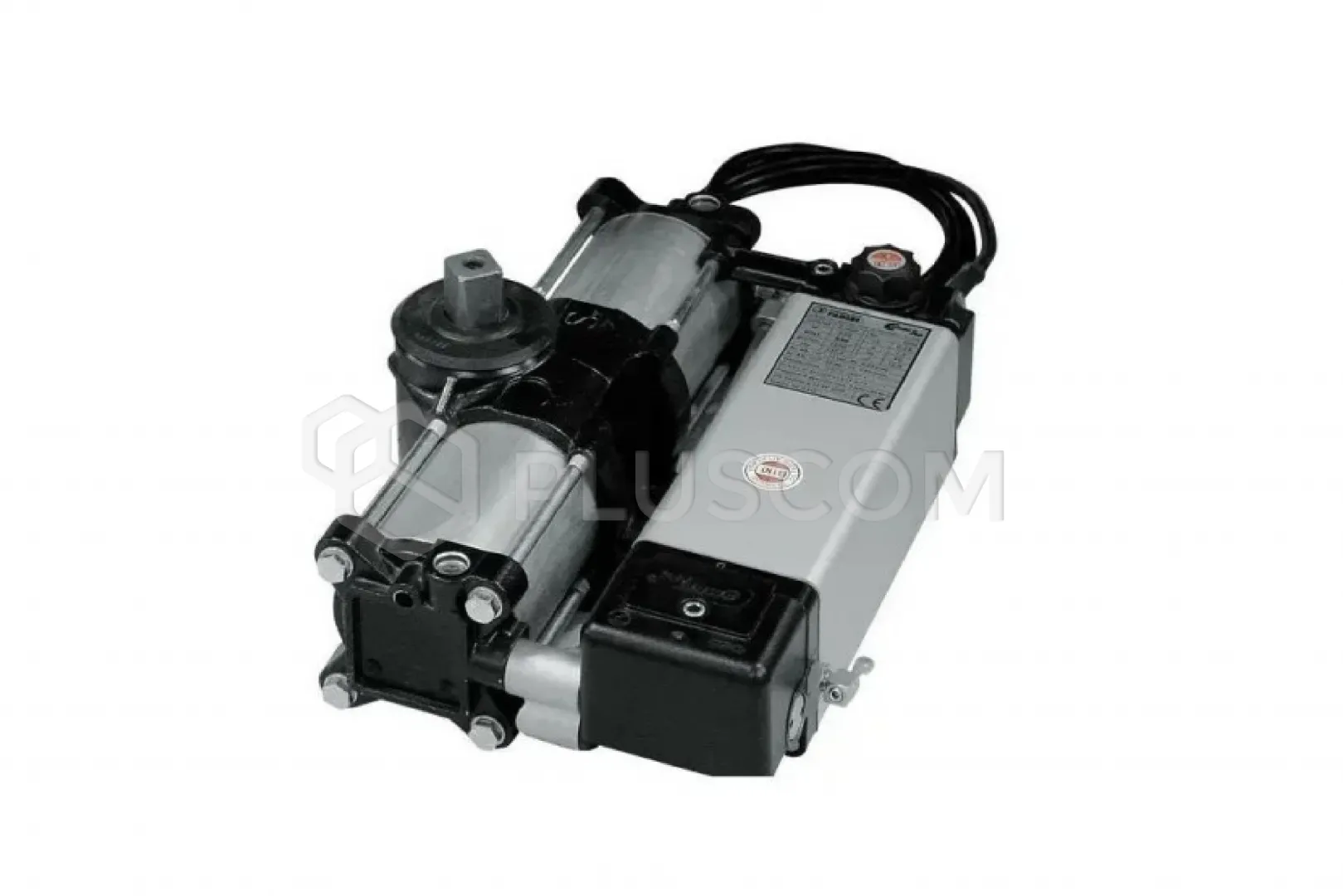

Fadini 7677BB3DXL COMBI 740 oil-hydraulic actuator without manual opening function (right)
COMBI 740 (110°) 230V oil-hydraulic actuator without manual opening function and with electric power cable for swing gates up to 700 kg and with a leaf length of up to 3 m (right). For residential and industrial use.
COMPACT, STRONG AND HIDDEN

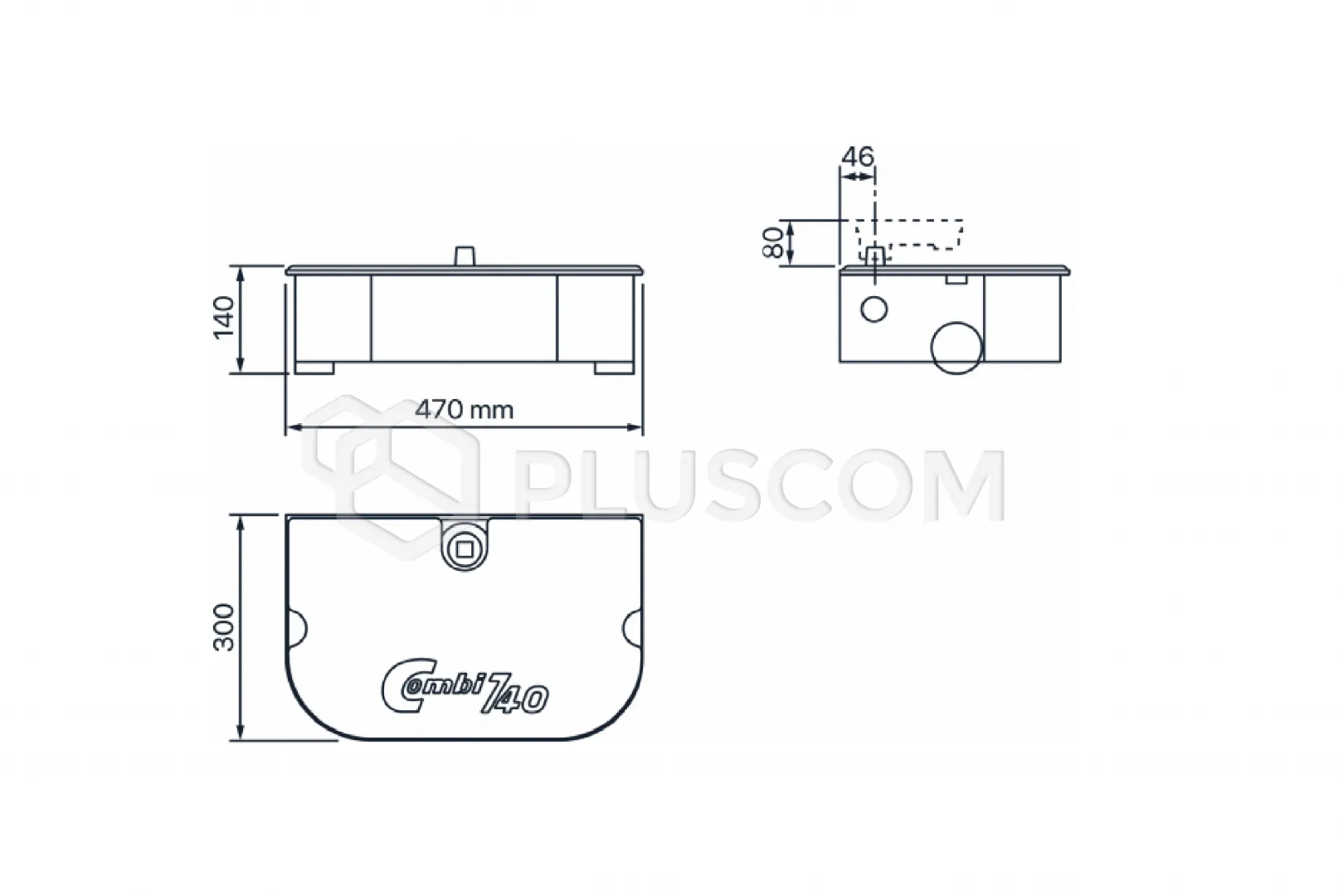

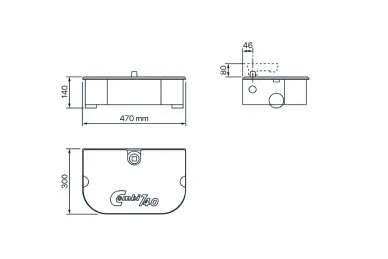

Hydraulic actuator with pump, housed in a housing made of machined steel (3 mm thick electrolytically galvanized) to ensure high corrosion resistance. Housing available in AISI 304 stainless steel. Does not require special maintenance.
HYDRAULIC
A wide range of versions (right and left) suitable for any type of installation: non-self-locking without hydraulic locking, with bidirectional hydraulic locking (self-locking), with the possibility of hydraulic self-locking slowing on opening and closing and with flow regulator. Safety against crushing is ensured by bypass valves mounted on the actuator. Opening angle up to 110° or up to 175°; safe and silent movement.
SAFE
Emergency release pressed steel lock, easy to operate both from the inside and from the outside using a special key with an ergonomic handle.
TESTED AND CERTIFIED
CE marking.
SELF-LOCKING DEVICE
A hydraulic actuator with a self-locking device that slows down the movement of the gate leaf, operating, depending on the model, in the opening, closing or both phases. An electromechanical actuator equipped with an electronic brake and a slowing system during the opening and closing of the gate leaf
-40 °C
A technology of dedicated accessories that allows the use of a hydraulic actuator at extremely low temperatures, exceeding -40 °C, without the risk of freezing.
Special accessories for different types of applications:
- HELIOS 29 board for ELPRO control units
- Temperature sensor for hydraulic control units
- Heating element for automatic posts
BIDIRECTIONAL HYDRAULIC LOCK
The gate remains locked in both the closed and open position (when the engine is not running). To manually open or close the leaf, the actuator must first be unlocked.
HYDRAULICS POWER TECHNOLOGY
A cylinder using a movement transmission system using hydraulic oil under pressure.
Technical data:
- Power supply: 230V - 50Hz
- Power consumption: 250W
- Current consumption: 1.2A
- Power efficiency: 0.18 kW / 0.25 HP
- Torque: 250 - 400 Nm
- Operating temperature: -20°C ÷ +80°C *
- Protection class: IP67
- Oil type: 708L
- Opening / closing time: ~ 23 s
- Weight with box: 27 kg
- Use frequency: intensive
- Version: right
- Two-way hydraulic locking (self-locking): YES
- Braking slowdown: NO
- Flow regulator: NO

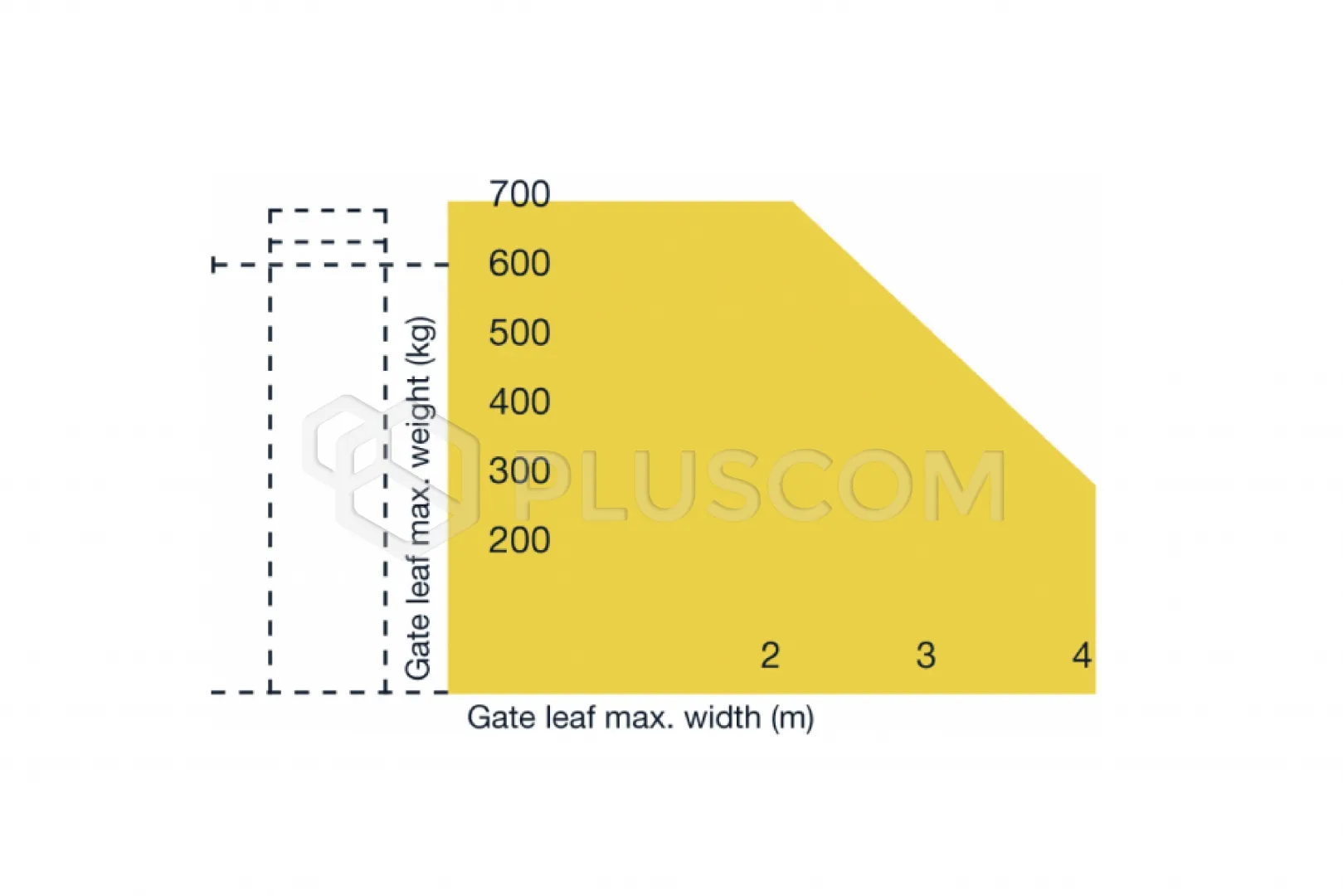

- Max. gate wing width: 3 m
- Max. gate wing weight: 700 kg
* -40°C with specified optional accessories
