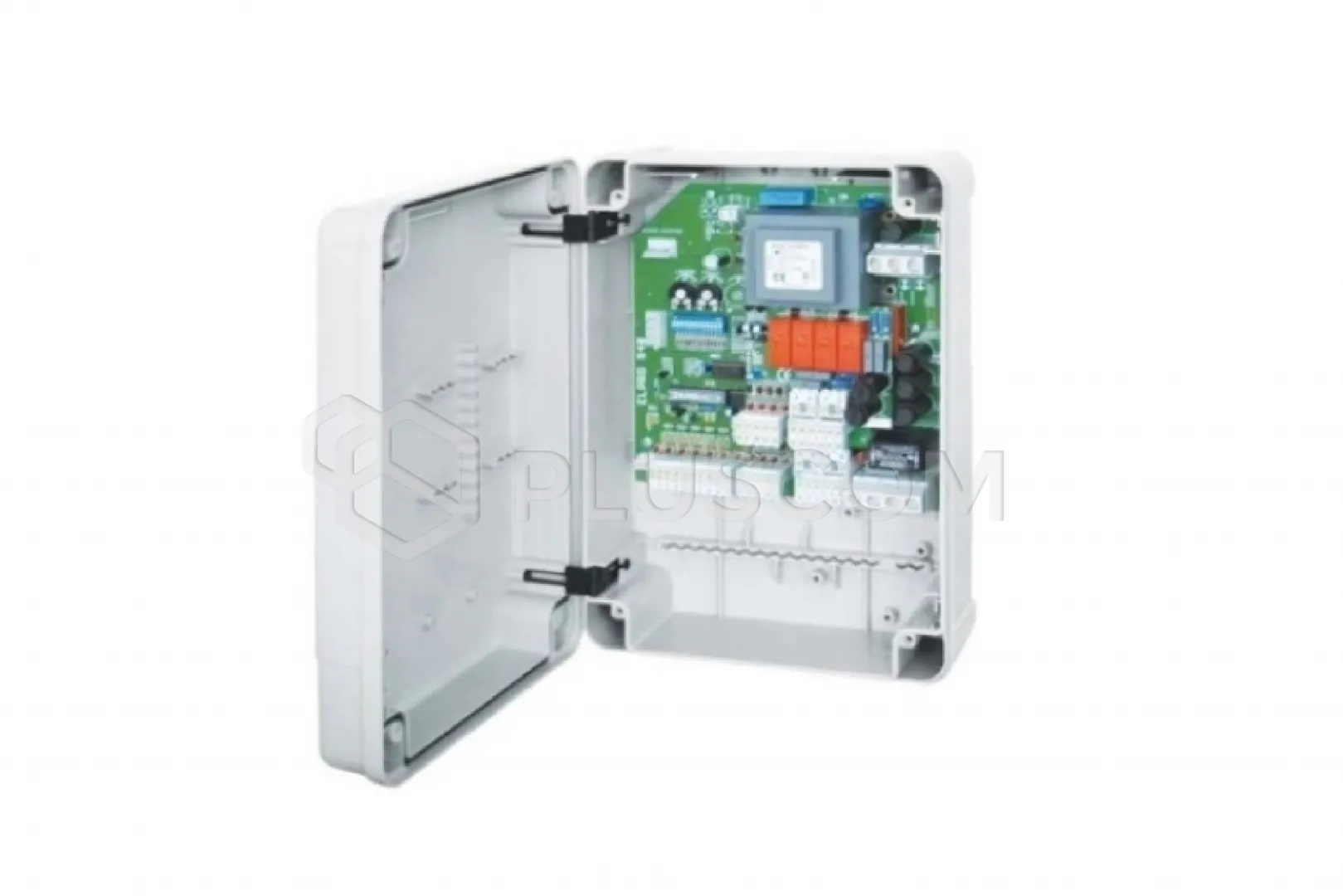

Fadini 7278L ELPRO S20 control unit for automatic posts

342,51 EUR including 23.00% VAT
Product code: #37052
Manufacturer: Fadini
  • Single-phase board power supply: 230V AC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 394SXL APROLI Left-hand hydraulic actuator for folding gates

Fadini 7278L ELPRO S20 control unit for automatic bollards

COMPATIBLE

Control board for controlling the following automatic bollard models: CORAL, VIGILO, STRABUC 930 OPINAT, TALOS line 94, line 96, M30 and C730.

INTEGRATED CONTROL

Max. two automatic bollards.

OPERATING MODES

Automatic, semi-automatic, automatic "step by step", manual control, pedestrian mode with single bollard operation and intermittent light preceding the movement of the bollard column.

BASIC FUNCTIONS

Intuitive adjustment using trimmer and DIP switch: preparation for external clock installation, traffic light control card, radio receiver plug-in card, automation status indication, C.S.I. failure control system. Single-phase power supply 230 V AC.

Technical data:

  • Single-phase board supply (Vac - Hz): 230 -50
  • Three-phase board supply: -
  • Maximum motor power (W): - 1,200
  • Courtesy lighting output -
  • Photocell/key/receiver output (Vdc - mA): 24 - 250
  • Pilot light output (Vac - W): 24 - 3
  • Control output: DSA
  • Flashing light output (Vac - W): 230 - 100
  • Motor working time (s): 1 - 22
  • Downtime (s): 1 - 180
  • Gate closing delay: -
  • Pedestrian opening time: -
  • Housing dimensions (mm): 210 x 295 x 110
  • IP protection class: 64
  • Operating temperature (°C) -20 +55
  • Solenoid valve power supply (Vac - W) 230 - 100
