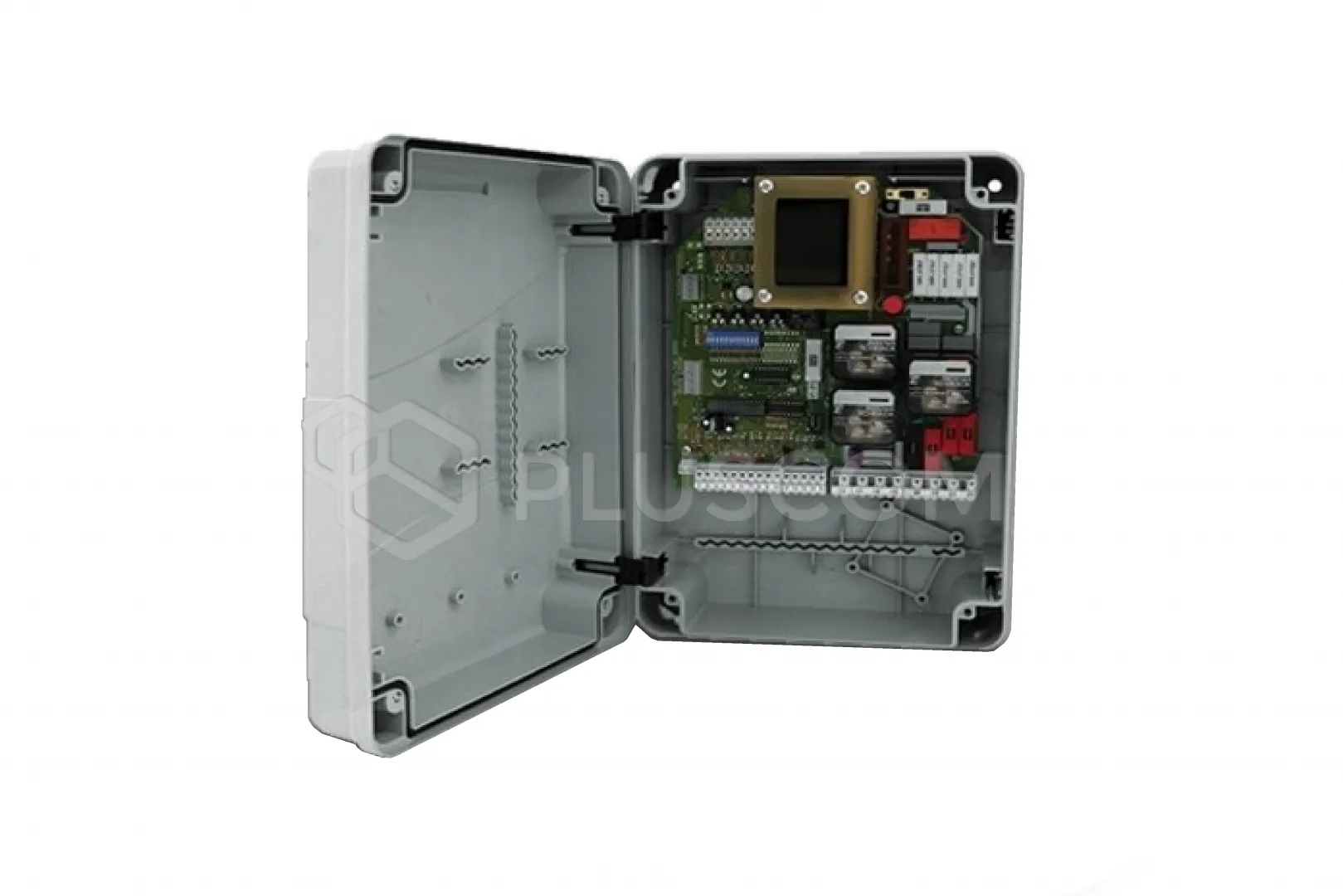

Fadini 7183L ELPRO 37 DB control unit for two actuators with 230/400V power supply
ELPRO 37 DB control unit for double-leaf gates (max. 1.5 HP three-phase or 1 HP single-phase).
OPERATION LOGIC
Automatic, semi-automatic, step-by-step mode, obstacle detection function, wicket function, hydraulic shock and flashing of the lamp before gate opening.
BASIC FUNCTIONS
Intuitive adjustment using trimmers and DIP switches: electric lock power supply, possibility of connecting an external clock, electronic brake, automation status signaling. Automatic photocell test (DSA), automatic safety edge test (DACS), adapted for semaphore installation for up to three lights. Single-phase and three-phase power supply. Housing dimensions 210 x 295 x 110 mm. IP 64 protection level. Operating temperature -20°C +55°C.
The control units are entirely designed and manufactured in Meccanica Fadini plants.
They comply with applicable standards and directives in the field of electromagnetic compatibility and meet the requirements of any type of installation: swing gates, sliding gates, automatic barriers, doors, double-leaf, single-leaf or folding gates, or extendable hydraulic posts.
Each ELPRO control unit has its own logic system adapted to the type of actuator. Easy programming of various functions.
All boards are equipped with a connector for Fadini radio receivers.
To obtain a door lock on the plastic housing, a voltage cut-off switch equipped with a lever can be mounted
FEATURES:
- Three-phase power supply: YES
- Photocell operation on opening: YES
- Second pair of photocells input: YES
- Dedicated safety edge input: YES
- Dedicated second safety edge input: YES
- Photocell safety self-test device (DSA): YES
- Safety edge self-test device (DACS): YES
- Electronic brake: YES
- Memorization of remaining motor operating time in interrupted cycles: NO
- Soft start and deceleration: NO
- Force adjustment: NO
- RT data: NO
- Learning of working times using the remote control: NO
- Slave mode: NO
- Electric lock: YES
- Step-by-step mode: YES
- MOTMAN mode: YES
- Wicket door function: YES
- Pedestrian opening using the remote control: YES
- Change of direction of movement: NO
- External timer: YES
- Gate status indicator: YES
- Automation status indicator: YES
- Semi-automatic mode: YES
- Automatic mode: YES
- Pre-flashing: YES
- No flashing when stationary, automatic mode: YES
- Radio receiver connection: YES
- Residential complex: YES
- Close after photo: YES
- Semaphores: YES
Technical data:
- 1-phase power supply: 230V - 50/60Hz
- 3-phase power supply: 400V - 50/60Hz
- Maximum engine power: 750W 1PH - 1200W 3PH
- Additional lighting output: 12V relay
- Accessories power supply: 24V - 500mA
- Gate status indicator output: 24V - 3W
- DSA control output: 24V - 150mA
- Warning lamp output: 230V - 25W
- Motor operating time: 0 - 120 s
- Pause time: 1 - 220 s
- Gate closing delay: 0 - 10 s
- Pedestrian opening time: -
