Fadini 711L Hydraulic underground cylinder with slow-down function DRIVE 700

576,91 EUR including 23.00% VAT
Product code: #37040
Manufacturer: Fadini
  • Power supply: 230V AC

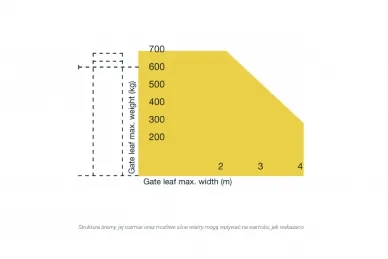

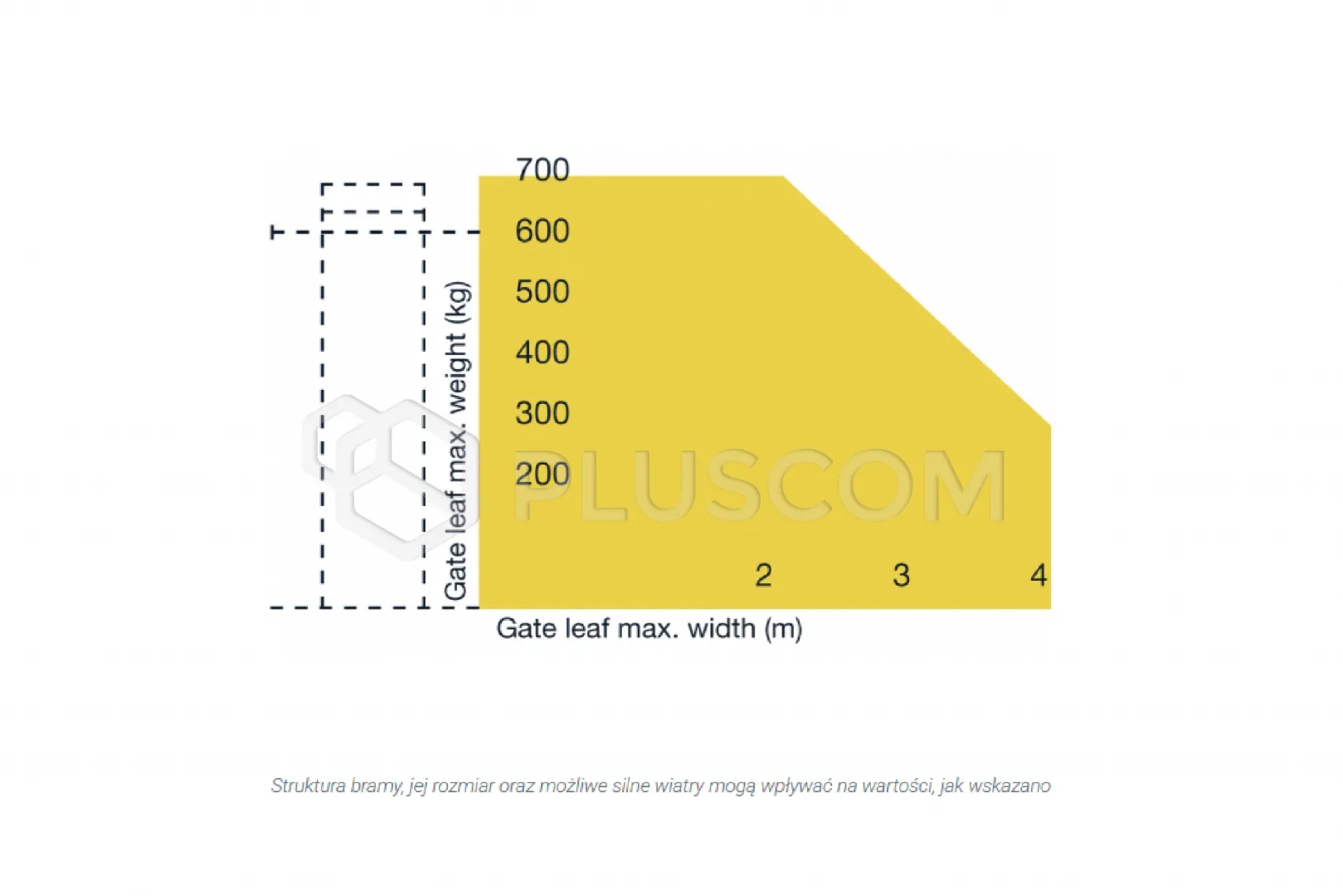

  • Max. wing width: 4 m
  • Max. leaf weight: 700 kg
  • Opening angle up to 110°
  • Protection class: IP 67
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

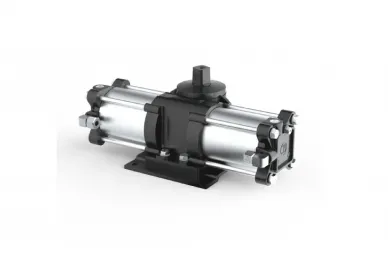

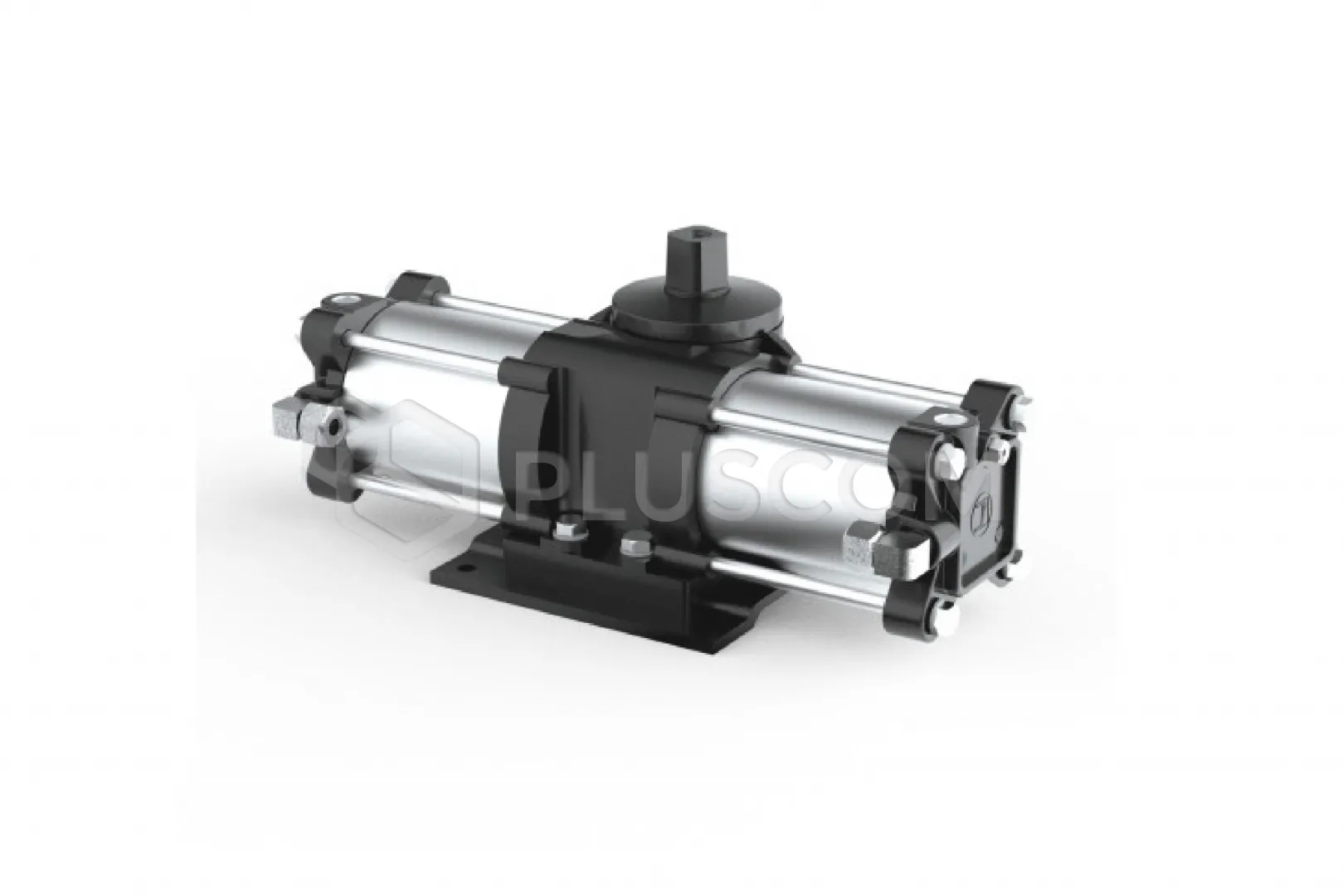

Fadini 711L Underground hydraulic actuator with slow-down function DRIVE 700


Underground oil-hydraulic actuator DRIVE 700 (110°) 230V with slow-down function for swing gates up to 700 kg and with a leaf length of up to 4 m. For residential and industrial use.

ATTENTION! Foundation casing not included.

STRONG AND EFFICIENT

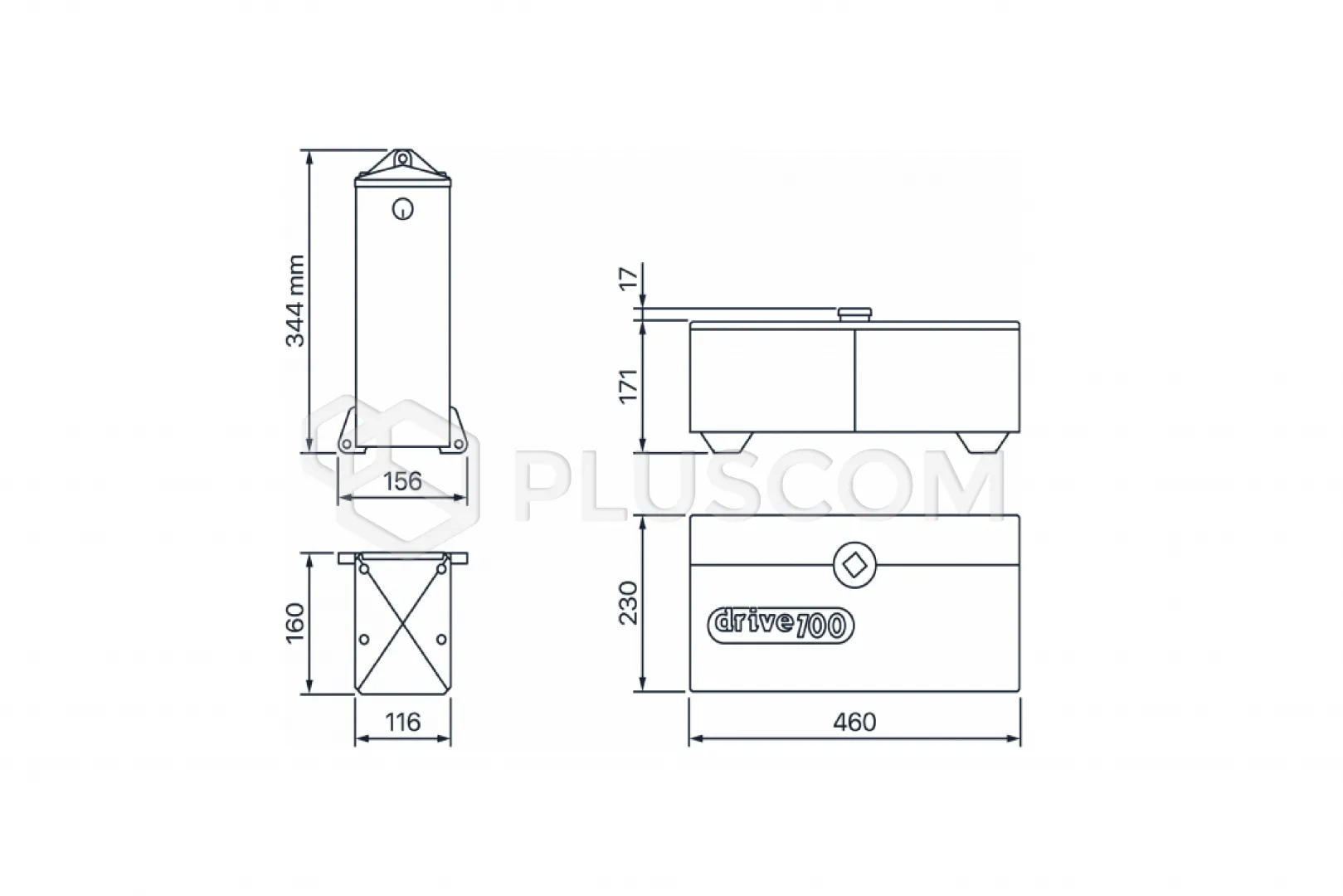

Hydraulic pump separated from the actuator housed in an aluminum box, with electrolytically galvanized steel mounting plate.

HYDRAULIC

A wide range of versions suitable for any type of installation: non-self-locking without hydraulic locking, with bidirectional hydraulic locking (self-locking), with possibility of hydraulic slowing down on opening and closing. Shaft rotation of 110° and 175°. Safety against crushing is ensured by bypass valves mounted on the control unit. Safe and silent movement.

Actuator details:

  • Rotation: 110°
  • Braking slowdown: YES
  • Max. gate wing width: 4 m
  • Max. gate wing weight: 700 kg

Technical data:

  • Power supply: 230V - 50Hz
  • Power consumption: 400W
  • Current consumption: 2A
  • Max. torque: 235 Nm
  • Max. pressure: 30 atm
  • Opening / closing time: ~ 23 s
  • Operating temperature: -20°C ÷ +80°C *
  • Degree of protection: IP67
  • Oil type: 708L
  • Weight with box: 16 kg
  • Frequency of use: semi-intensive
* -40°C with specified optional accessories
Download
User manual 0.97 MB
