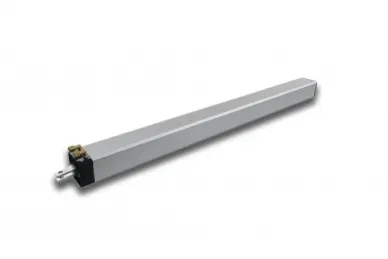

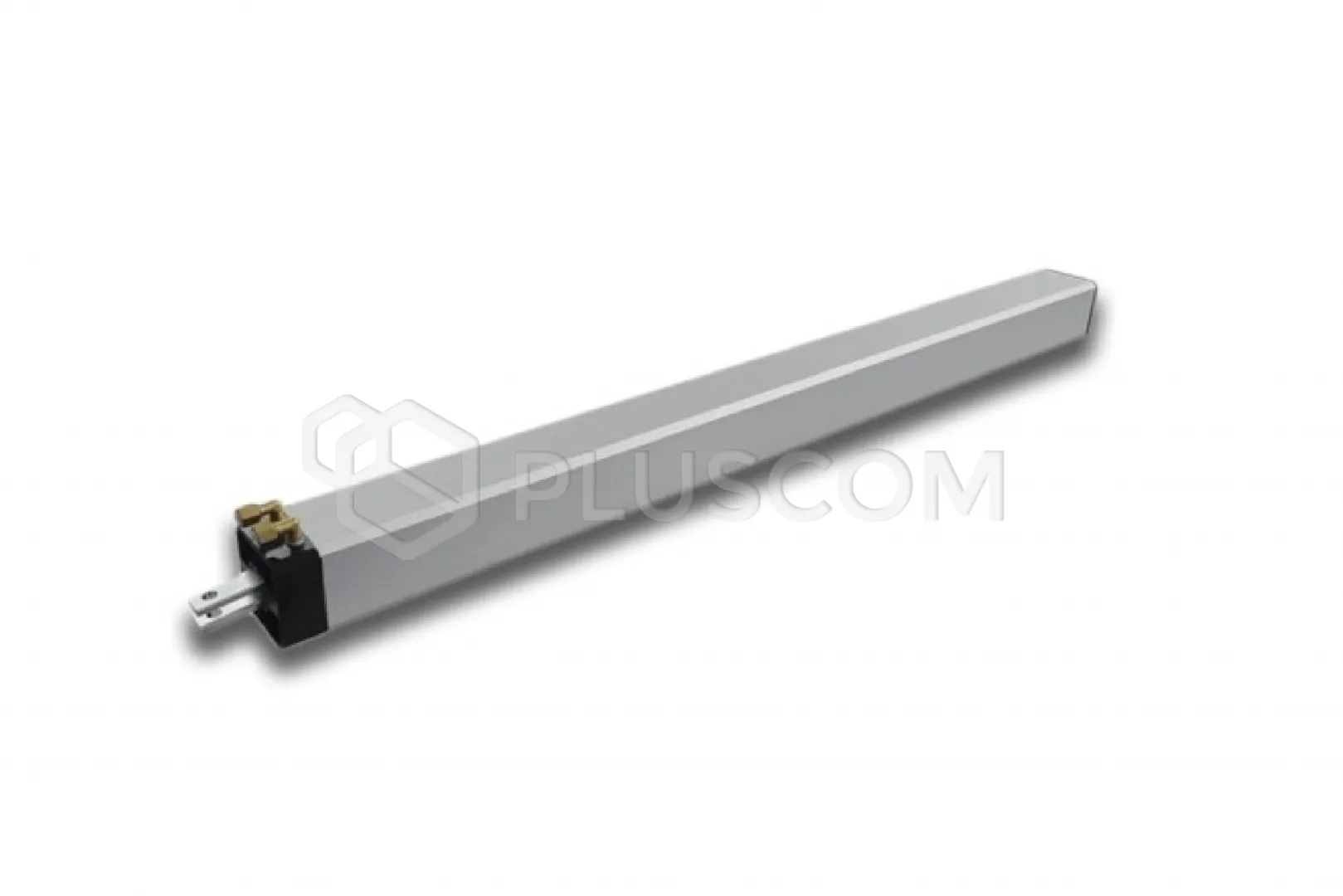

Fadini 711584L MEC 800 SPECIAL oil-hydraulic actuator with slow-down function when opening and closing
MEC 800 SPECIAL 230V oil-hydraulic actuator with slow-down function when opening and closing for swing gates up to 800 kg and a leaf length of up to 6 m. For industrial use.
ATTENTION! MEC 800 SPECIAL actuator for external mounting without a motor pump, the pump must be purchased separately.
POWERFUL
Effective for moving large-sized leaves, doors, gates and hatches (including solid surfaces) without limiting the number of cycles performed.
COMPLETE
Available rod stroke up to 1000 mm. Hydraulic slowdown (self-locking) in opening/closing phase (optional). Possibility of installing two pistons on one leaf thanks to the hydraulic control unit with double tank.
RELIABLE
All components are made of top quality materials and resistant to atmospheric agents. Unlocking using a special key on the hydraulic control unit
SELF-LOCKING DEVICE
Hydraulic actuator with self-locking device that slows down the movement of the gate leaf, operating, depending on the model, in the opening, closing or both phases. Electromechanical actuator equipped with electronic brake and slowdown system during the opening and closing of the gate leaf
BIDIRECTIONAL HYDRAULIC LOCK
The gate remains locked in both the closed and open positions (when the motor is not running). To manually open or close the gate, the actuator must first be unlocked.
REVERSIBLE WITHOUT LOCKING
Without hydraulic locking. Manual opening and closing of the gate leaf is always possible. In this type of installation, an electric lock or bolt must be used to keep the gate closed.
HYDRAULICS POWER TECHNOLOGY
A cylinder that uses a system of transferring movement using hydraulic oil under pressure.

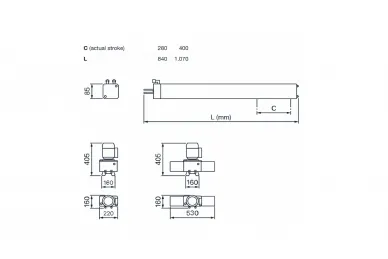

Actuator details:
- Rod diameter: 22 mm
- Piston stroke: 600 mm
- Force: 0 ÷ 7,000 N
- Braking slowdown: on opening / closing
- Max. gate wing width: 6 m
- Max. gate wing weight: 800 kg
