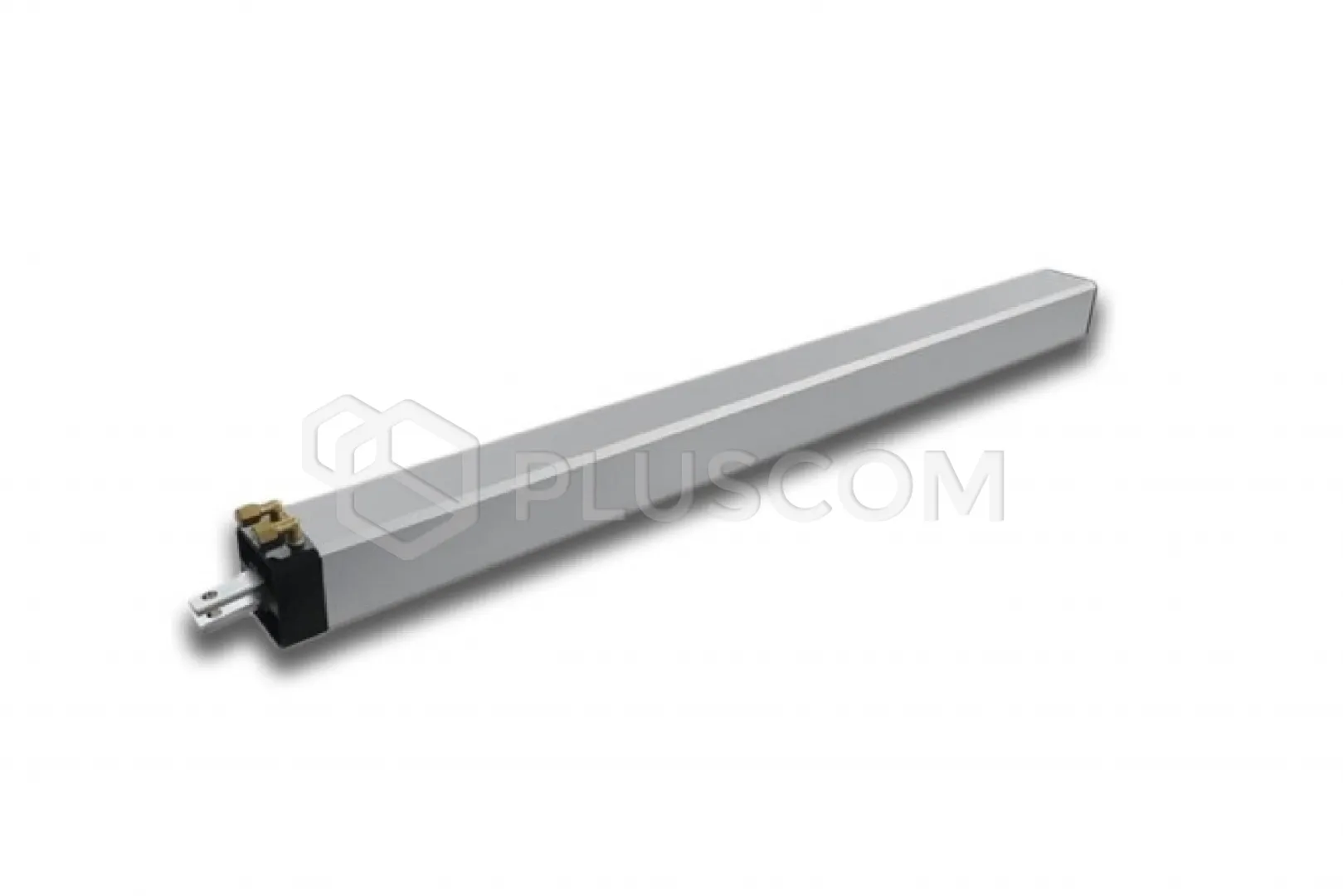

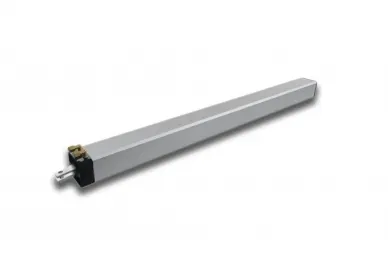

Fadini 7114L MEC 800 SPECIAL oil-hydraulic actuator for swing gates
MEC 800 SPECIAL 230V oil-hydraulic actuator for swing gates up to 700 kg and
with a leaf length of up to 5 m. For industrial use.
ATTENTION! MEC 800 SPECIAL actuator for external mounting
without a motor pump, the pump must be purchased separately.
POWERFUL
Effective for moving large-sized leaves, doors, gates and
hatches (including solid surfaces) without limiting the number of cycles
performed.
COMPLETE
Available rod stroke up to 1000 mm. Hydraulic slowdown
(self-locking) in opening/closing phase (optional). Possibility of installing
two pistons on one leaf thanks to the hydraulic control unit with double tank.
RELIABLE
All components are made of top quality materials and resistant
to atmospheric agents. Unlocking using a special key on the hydraulic control
unit
SELF-LOCKING DEVICE
Hydraulic actuator with self-locking device that
slows down the movement of the gate leaf, operating, depending on the model, in
the opening, closing or both phases. Electromechanical actuator equipped with
electronic brake and slowdown system during the opening and closing of the gate
leaf
BIDIRECTIONAL HYDRAULIC LOCK
The gate remains locked in both the closed
and open positions (when the motor is not running). To manually open or close
the gate, the actuator must first be unlocked.
REVERSIBLE WITHOUT LOCKING
Without hydraulic locking. Manual opening
and closing of the gate leaf is always possible. In this type of installation,
an electric lock or bolt must be used to keep the gate closed.
HYDRAULICS POWER TECHNOLOGY
A cylinder that uses a system of
transferring movement using hydraulic oil under pressure.

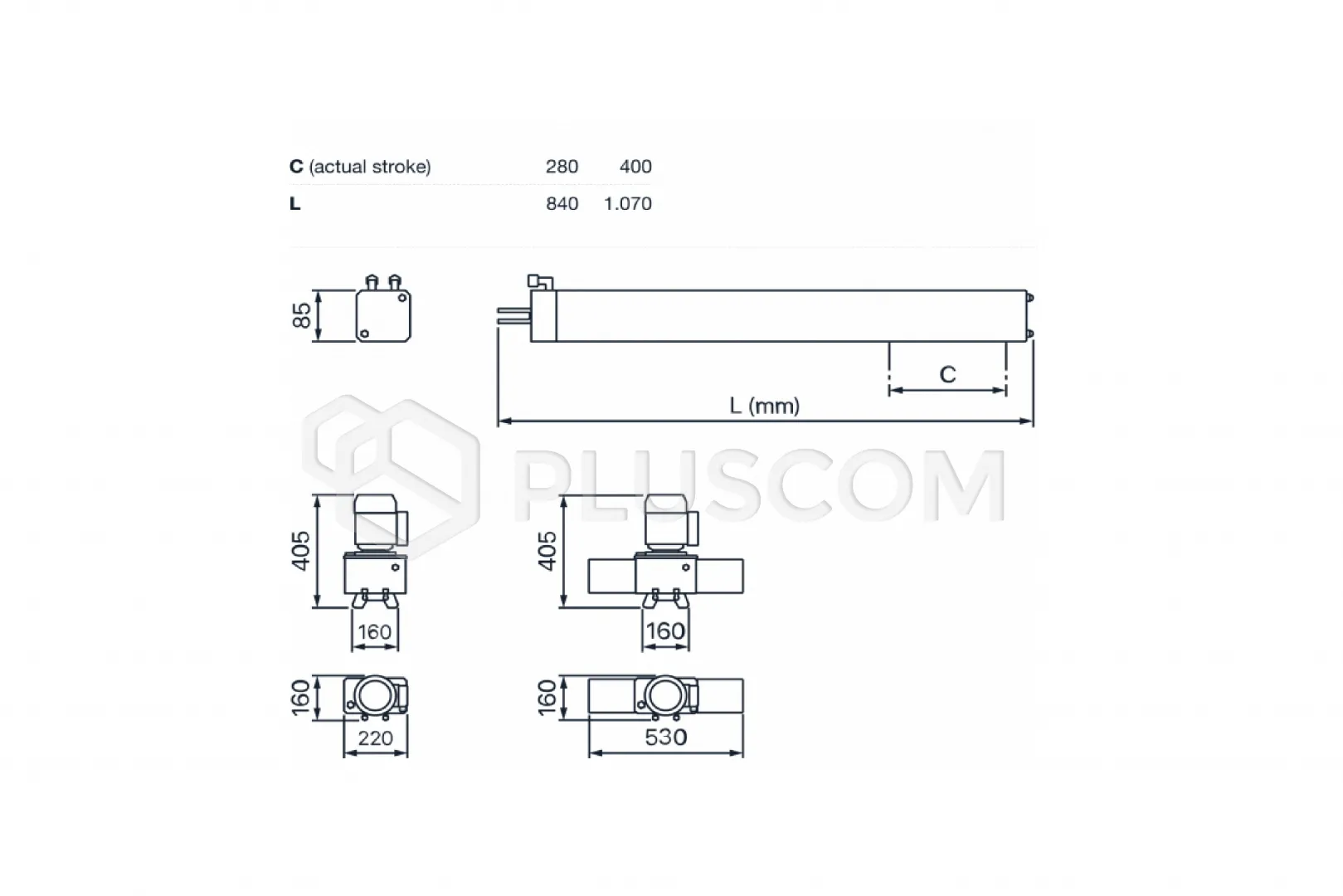

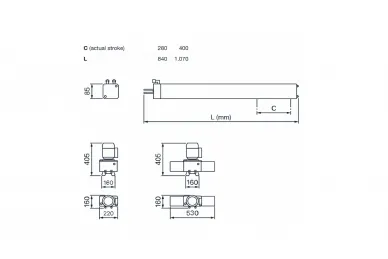

Actuator details:
- Rod diameter: 22 mm
- Piston stroke: 500 mm
- Force: 0 ÷ 7,000 N
- Braking slowdown: NO

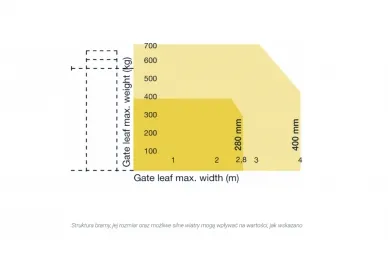

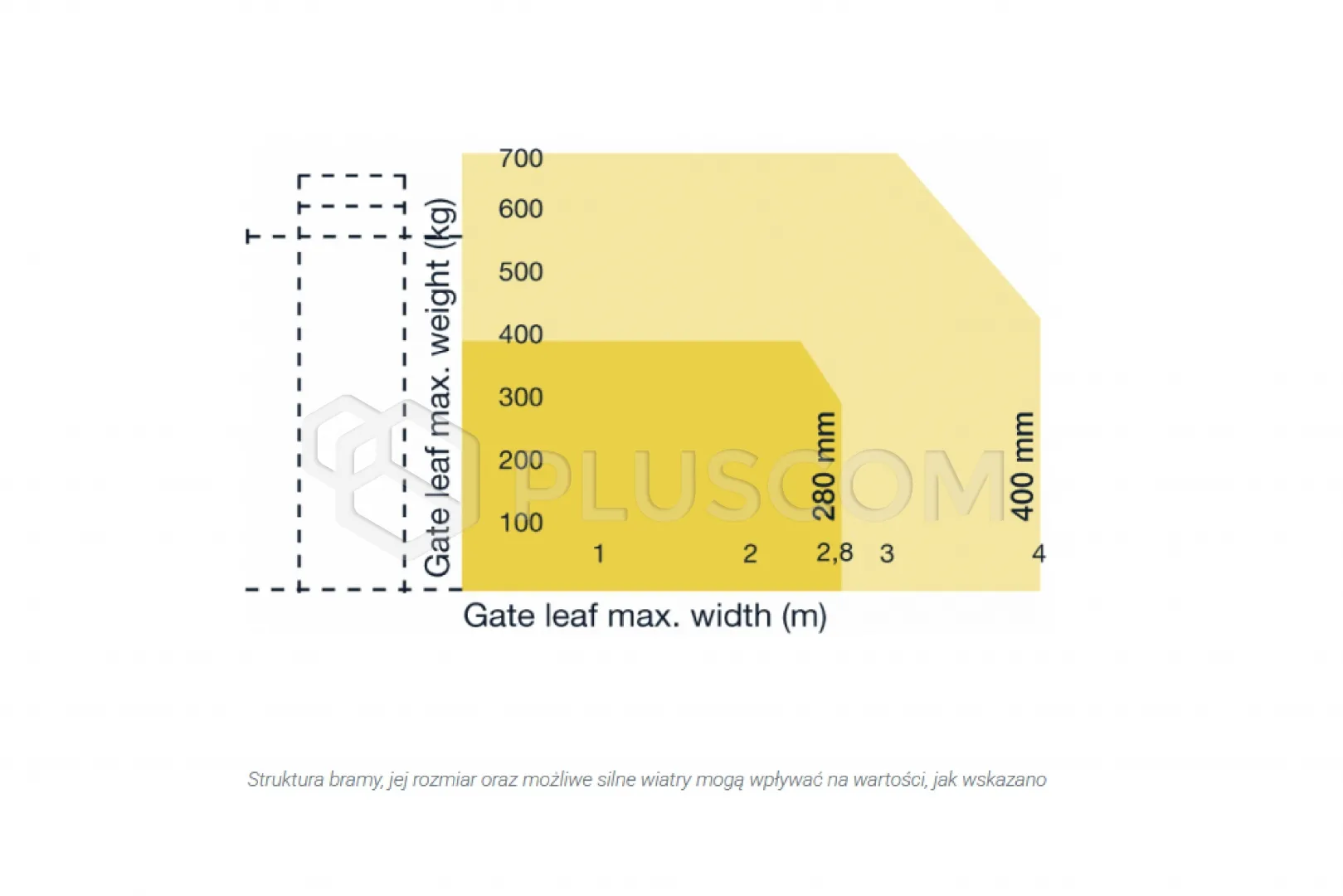

- Max. gate wing width: 5 m
- Max. gate wing weight: 700 kg
