Fadini 710L DRIVE 700 oil-hydraulic underground actuator for swing gates

483,35 EUR including 23.00% VAT
Product code: #37023
Manufacturer: Fadini
  • Power supply: 230V AC

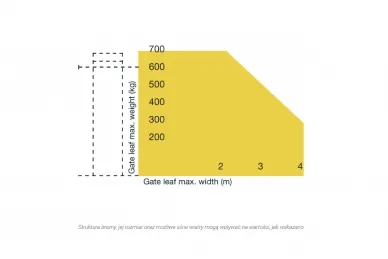

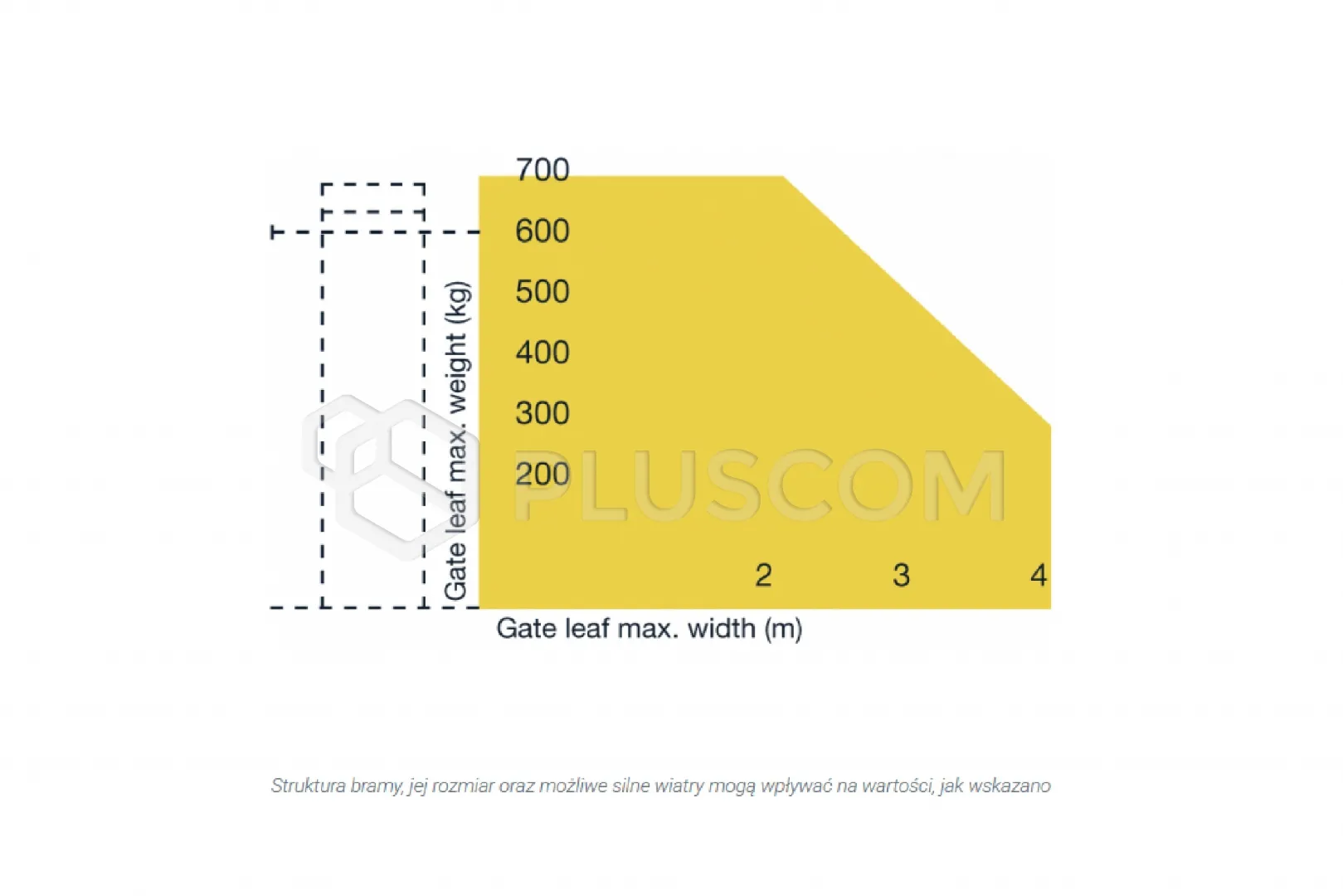

  • Max. leaf length: 3 m
  • Max. leaf weight: 700 kg
  • Rotation: 110°
  • Protection class: IP 67
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

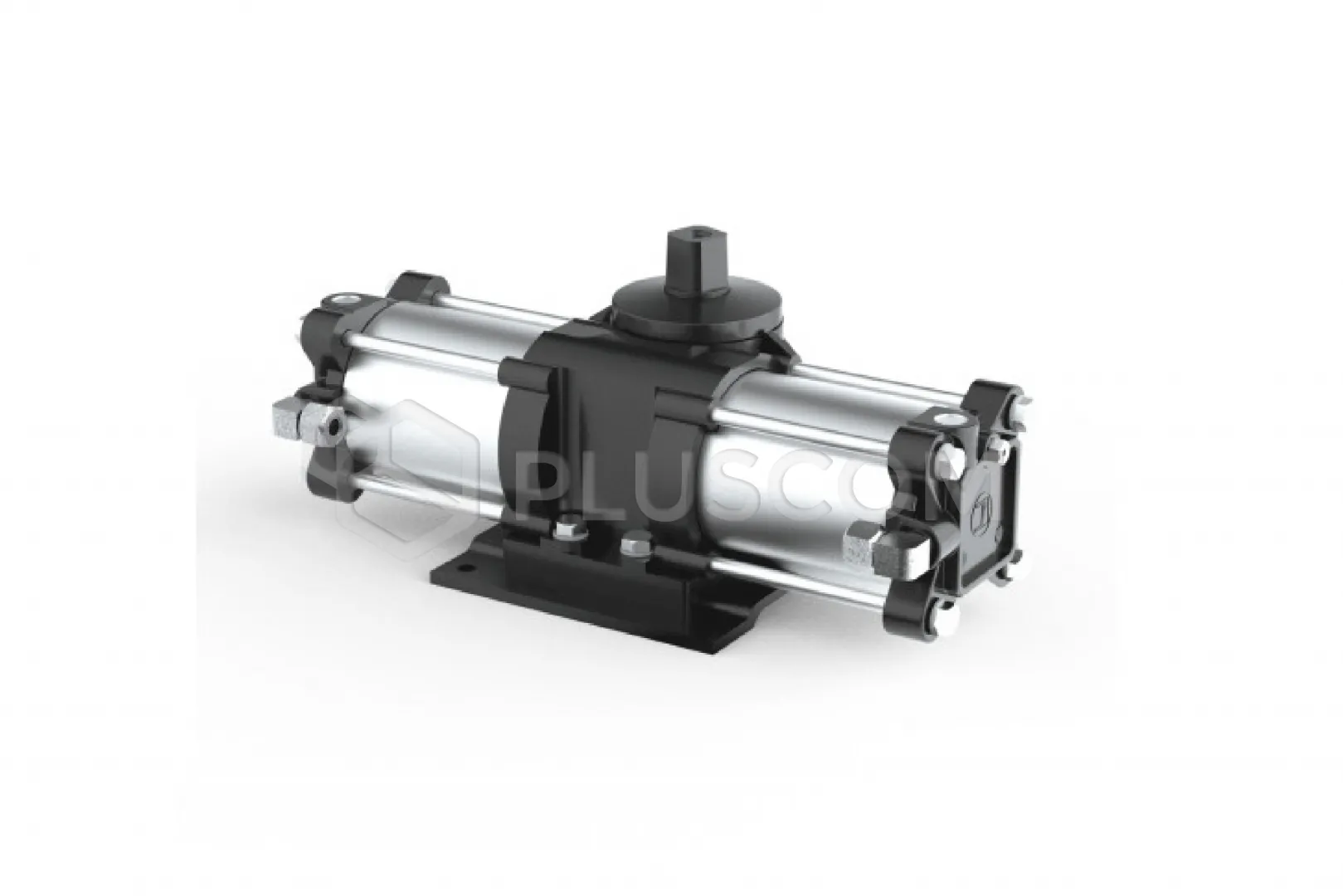

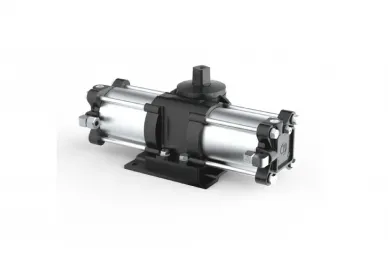

Fadini 710L Underground oil-hydraulic actuator DRIVE 700 for swing gates


Underground oil-hydraulic actuator DRIVE 700 (110°) 230V for swing gates up to 700 kg and with a leaf length of up to 3 m. For residential and industrial use.

ATTENTION! Foundation casing not included.

STRONG AND EFFICIENT

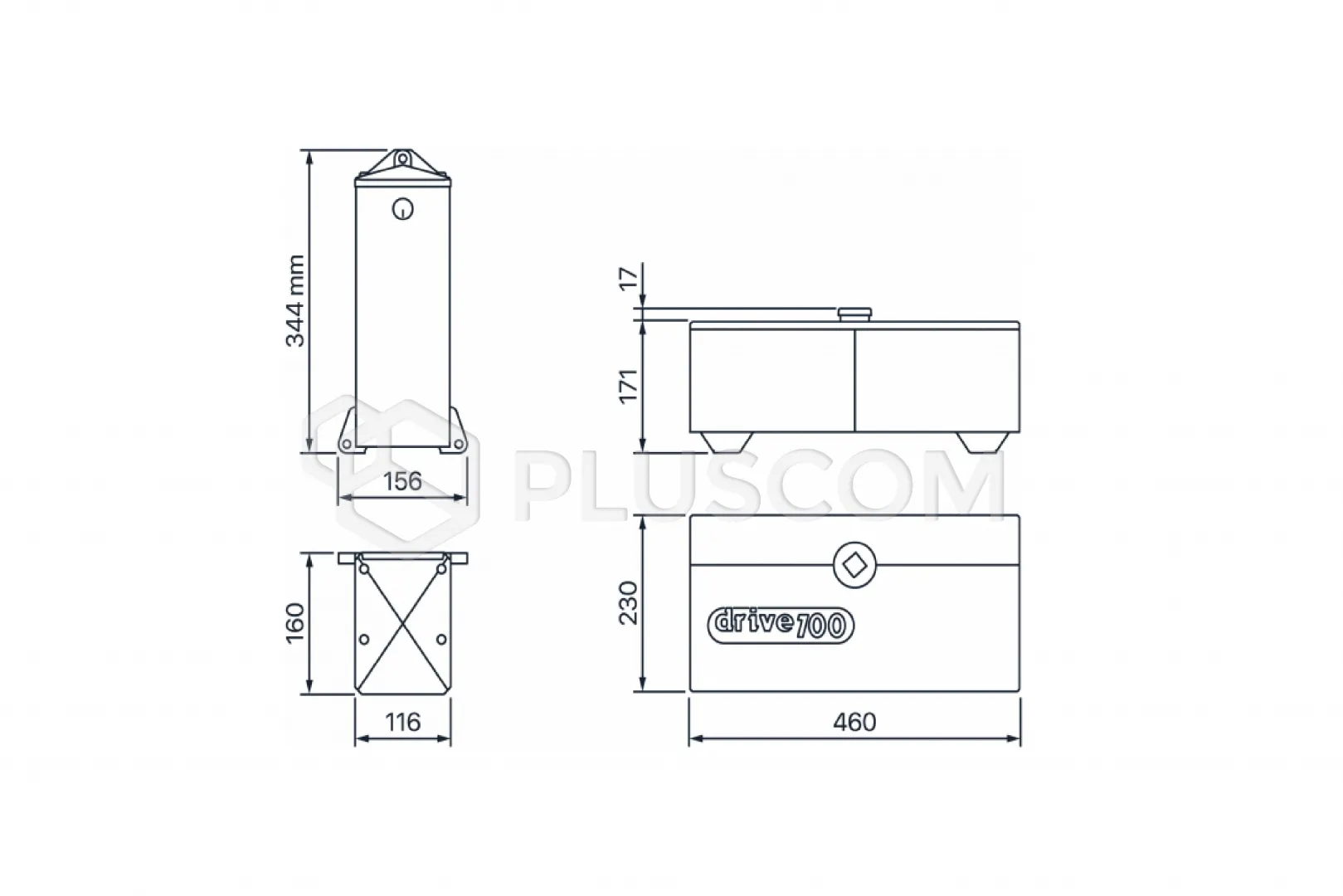

Hydraulic pump separated from the actuator placed in an aluminum box, with electrolytically galvanized steel mounting plate.

HYDRAULIC

A wide range of versions suitable for each type of installation: non-self-locking without hydraulic lock, with bidirectional hydraulic lock (self-locking), with possibility of hydraulic slowdown on opening and closing. Shaft rotation 110° and 175°. Safety against crushing is ensured by bypass valves mounted on the control unit. Safe and silent movement.

REVERSIBLE WITHOUT LOCKING

Without hydraulic locking. Manual opening and closing of the gate leaf is always possible. In this type of installation, an electric lock or latch must be used to keep the gate closed.

HYDRAULICS POWER TECHNOLOGY

A cylinder using a system of transmission of movement by means of hydraulic oil under pressure.

Technical data:

  • Power supply: 230V - 50Hz
  • Power consumption: 400W
  • Current consumption: 2A
  • Max. torque: 235 Nm
  • Max. pressure: 30 atm
  • Open / close time: ~ 23 s
  • Operating temperature: -20°C ÷ +80°C *
  • Protection class: IP67
  • Oil type: 708L
  • Weight with box: 16 kg
  • Use frequency: semi-intensive
Download
User manual 0.97 MB
