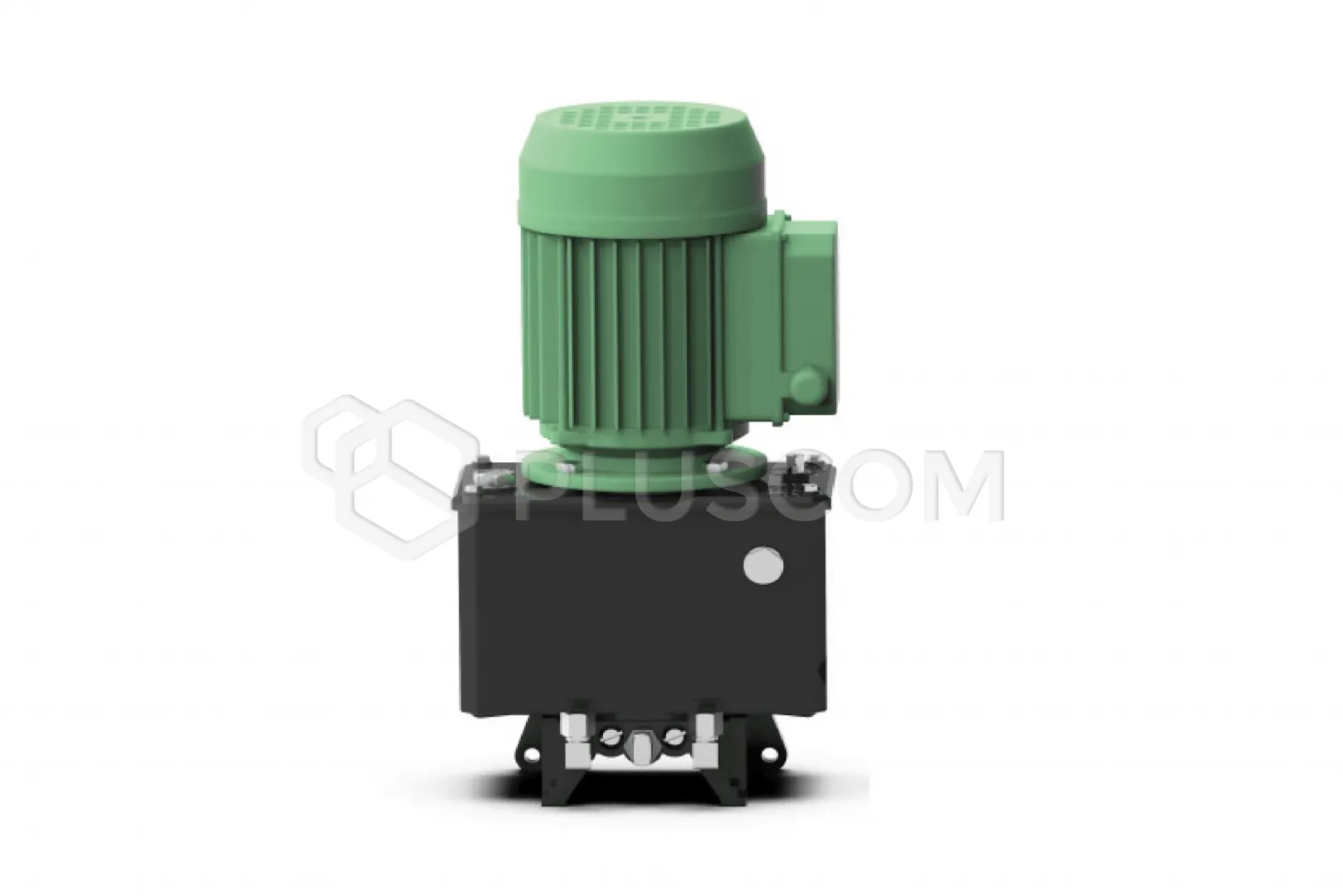

Fadini 7022P6L MEC 700/80 VENTIL motor pump with lock and without manual
opening function (single tank, slow version)
The set includes:
- MEC 700/80 VENTIL 230V oil-hydraulic motor pump
- Power supply cable
- Manual handle for emergency opening
- Mounting accessories
MEC 700/80 VENTIL 230V oil-hydraulic motor pump with lock and without manual
opening function. For industrial use.
ATTENTION! MEC 700/80 VENTIL motor pump for external
installation without MEC 800 SPECIAL actuator, the actuator must be purchased
separately.
POWERFUL
Effective for moving large-sized doors, gates and hatches
(including solid surfaces) without limiting the number of cycles performed.
COMPLETE
Available rod stroke up to 1000 mm. Hydraulic slowing
(self-locking) in the opening / closing phase (optional). Possibility of
mounting two pistons on one leaf thanks to the hydraulic control unit with
double tank.
RELIABLE
All elements are made of the highest quality materials and
resistant to atmospheric factors. Unlocking using a special key on the
hydraulic control unit
SELF-LOCKING DEVICE
A hydraulic actuator with a self-locking device
that slows down the movement of the gate leaf, depending on the model, during
the opening, closing or both phases. An electromechanical actuator equipped
with an electronic brake and a slowing system during the opening and closing of
the gate leaf
BIDIRECTIONAL HYDRAULIC LOCK
The gate remains locked in both the closed
and open positions (when the motor is not running). To manually open or close
the leaf, the actuator must first be unlocked.
HYDRAULICS POWER TECHNOLOGY
An actuator that uses a pressurized
hydraulic oil motion transmission system.
Technical data:
- Power supply: 230V - 50Hz
- Power consumption: 510W
- Current consumption: 2.4A
- Max. pressure: 40 atm
- Operating temperature: -25°C ÷ +80°C *
- Protection class: IP65 **
- Hydraulic pump capacity: 1.6 l/min
- Oil type: 708L
- Use frequency: intensive
- Hydraulic lock: on closing and opening
- Pump: P6 slow
- Tank type: single
* -40°C with specified optional accessories
