Fadini 702286P12L MEC 700/80 VENTIL 230V motor pump with lock and without manual opening function (double tank, fast version)
The set includes:
- MEC 700/80 VENTIL 230V oil-hydraulic motor pump
- Power supply cable
- Manual handle for emergency opening
- Mounting accessories

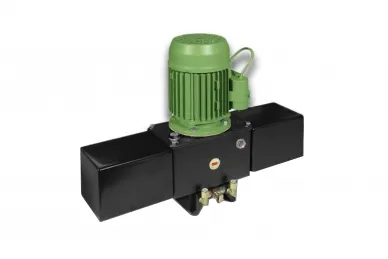

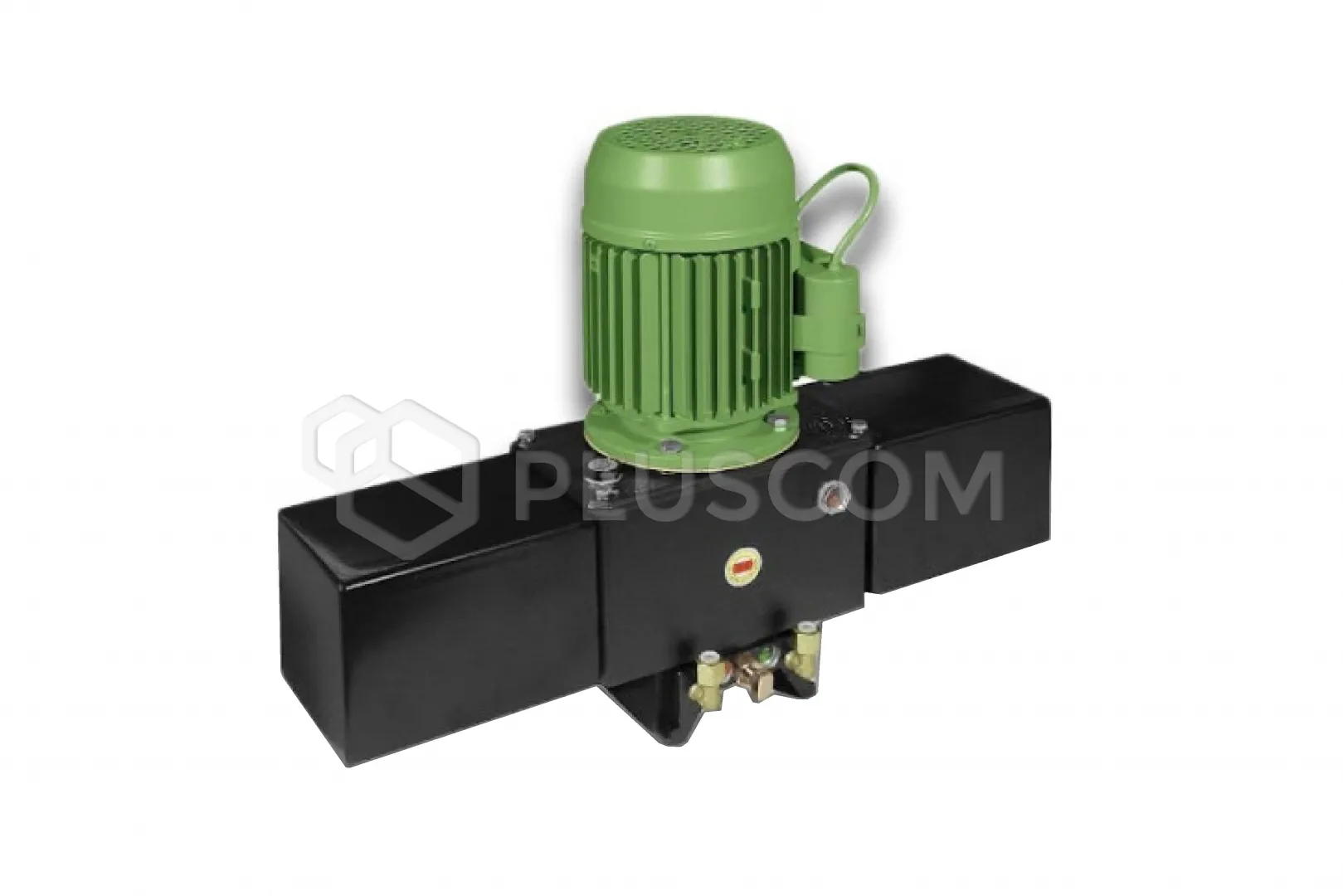

MEC 700/80 VENTIL 230V oil-hydraulic motor pump with lock and without manual opening function. For industrial use.
ATTENTION! MEC 700/80 VENTIL motor pump for external installation without MEC 800 SPECIAL actuator, the actuator must be purchased separately.
POWERFUL
Effective for moving large-sized doors, gates and hatches (including solid surfaces) without limiting the number of cycles performed.
COMPLETE
Available rod stroke up to 1000 mm. Hydraulic slowing (self-locking) in the opening / closing phase (optional). Possibility of mounting two pistons on one leaf thanks to the hydraulic control unit with double tank.
RELIABLE
All elements are made of the highest quality materials and resistant to atmospheric factors. Unlocking using a special key on the hydraulic control unit
SELF-LOCKING DEVICE
Hydraulic actuator with self-locking device that slows down the movement of the gate leaf, operating, depending on the model, during the opening, closing or both phases. Electromechanical actuator equipped with an electronic brake and a slowing system during the opening and closing of the gate leaf
-40 °C
Dedicated accessory technology that allows the use of the hydraulic actuator at extremely low temperatures, exceeding -40 °C, without the risk of freezing.
Special accessories for different types of applications:
- HELIOS 29 board for ELPRO control units
- Temperature sensor for hydraulic control units
- Heating element for automatic posts
BIDIRECTIONAL HYDRAULIC LOCK
The gate remains locked in both the closed and open position (when the engine is not running). To manually open or close the leaf, the actuator must first be unlocked.
HYDRAULICS POWER TECHNOLOGY
A cylinder using a movement transmission system using hydraulic oil under pressure.
Technical data:
- Power supply: 230V - 50Hz
- Power consumption: 510W
- Current consumption: 2.4A
- Max. pressure: 40 atm
- Operating temperature: -25°C ÷ +80°C *
- Protection class: IP65 **
- Hydraulic pump capacity: 2.6 l/min
- Oil type: 708L
- Use frequency: intensive
- Hydraulic lock: on closing and opening
- Pump: P12 fast
- Tank type: double
* -40°C with specified optional accessories
** Inside the cover or housing
