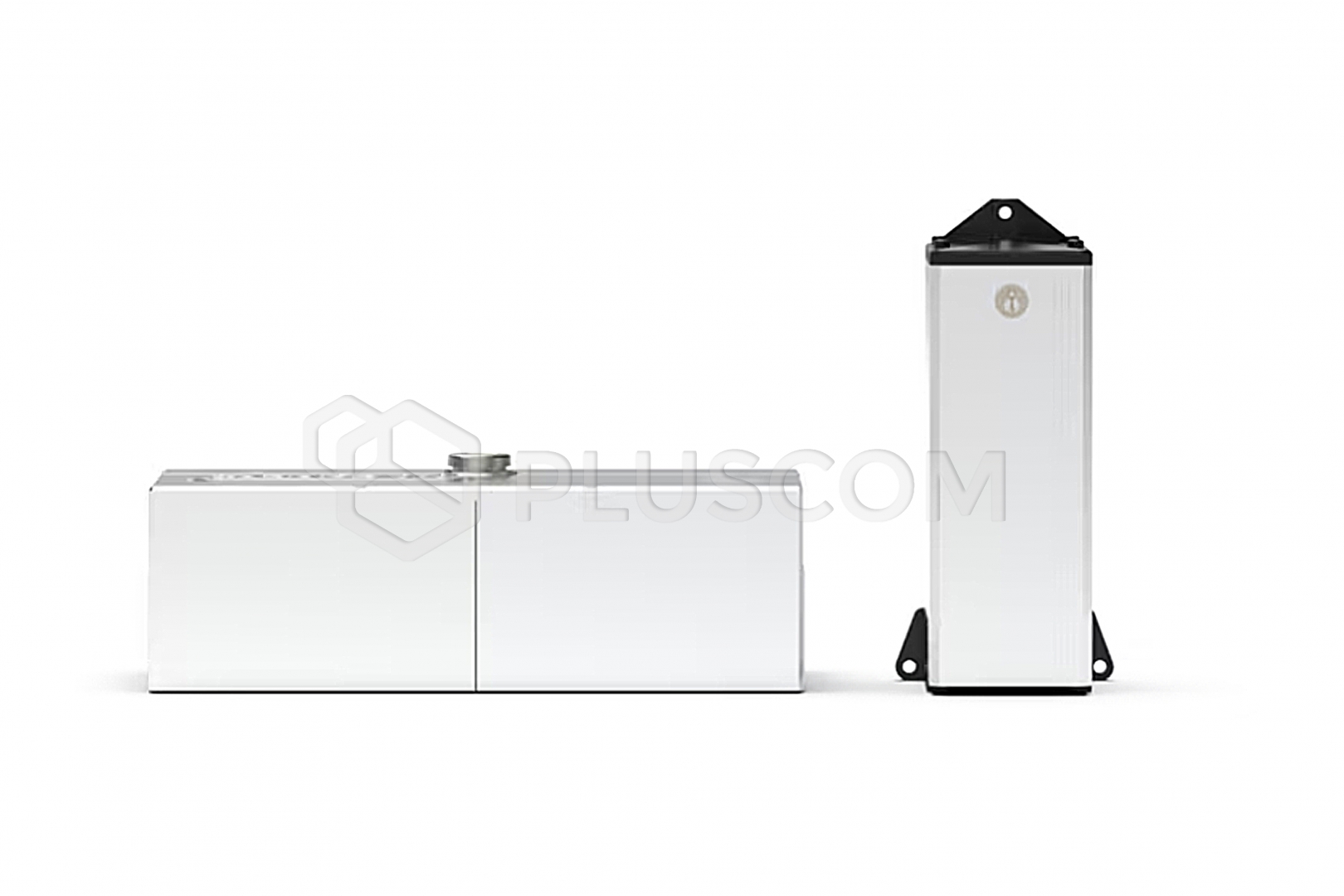

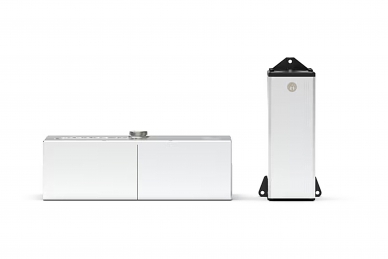

Fadini 701L DRIVE 700 ESTRU P3 with separate hydraulic control unit
Drive 701L is a non-self-locking, oil-hydraulic drive without hydraulic lock,
for opening and closing swing gates in residential buildings. It consists of an

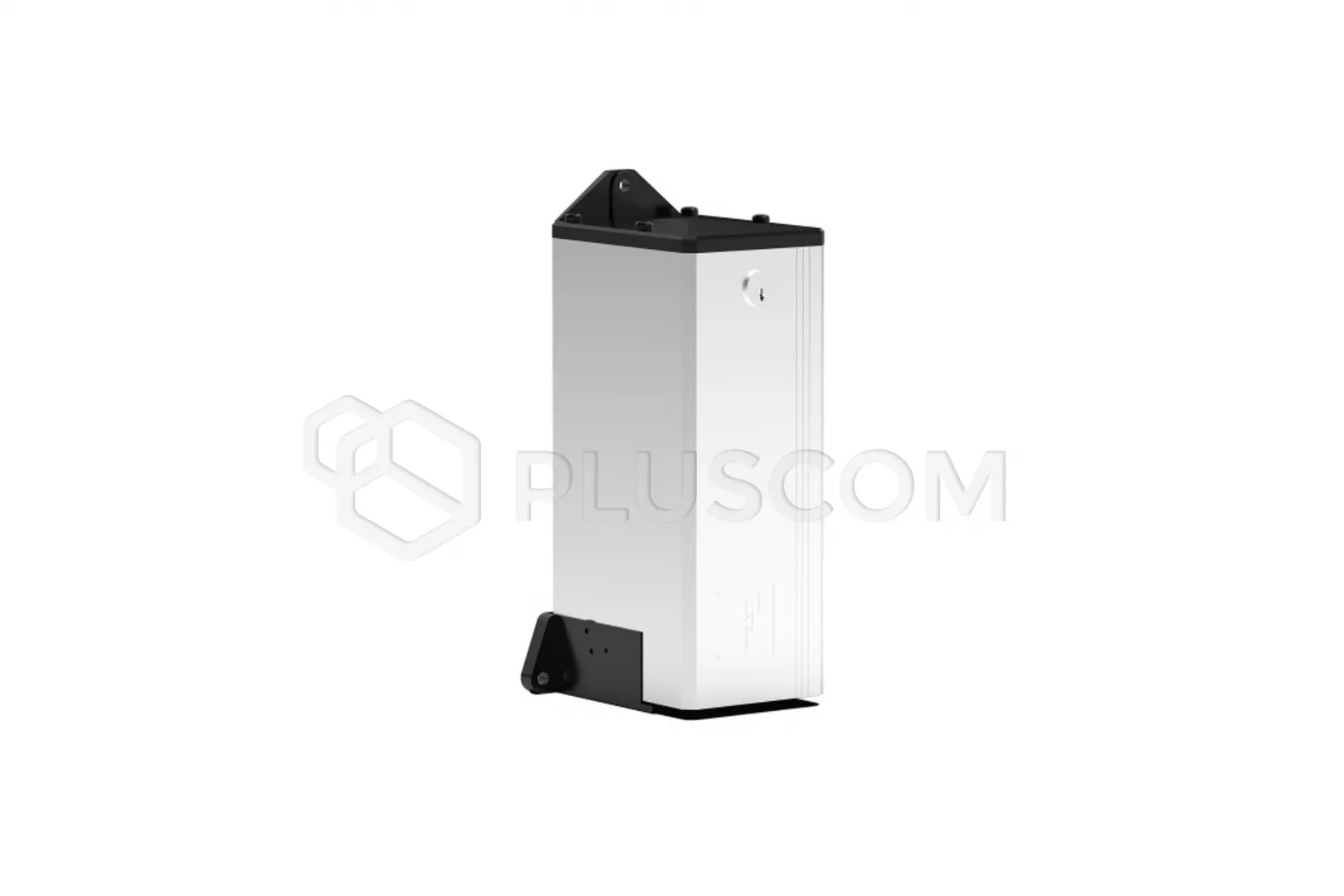

underground, oil-hydraulic lift placed in an aluminum die-cast foundation box
and an external motor-pump unit. Safety against crushing is ensured by bypass
valves mounted on the control unit.
Drive 701L Estru is connected to the lift by means of copper pipes.
The oil-hydraulic drive is characterized by reliability, smooth movements and
adjustable thrust using pressure valves, enabling control from the lowest to
the highest values. These features make it suitable for any type of gate with a
maximum weight of 700 kg.
The shaft has a square design and is made of hardened steel to achieve the
highest reliability and long service life.
In order for the Drive 701L to automatically operate the gate system, an
electronic control board must be connected to it. It can be installed outside,
in a sheltered place and controls all possible operations in automatic or
semi-automatic mode, according to the user's requirements.
A wide range of safety and control accessories complete the system, making it
suitable for any public or private application.
TECHNICAL DATA:
- Power supply: 230V AC
- Power consumption: 400W
- Current consumption: 2A
- Max. torque: 235Nm
- Max. pressure: 30atm
- Opening/closing time to 110°: ~ 23s
- Oil type: 708L
- Use frequency: semi-intensive
- Working temperature: -20 ÷ +80 °C
- Protection class: IP 67

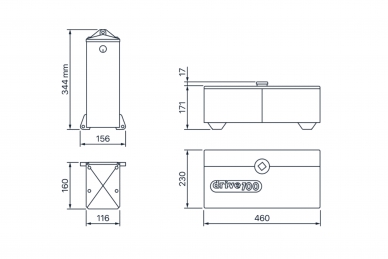

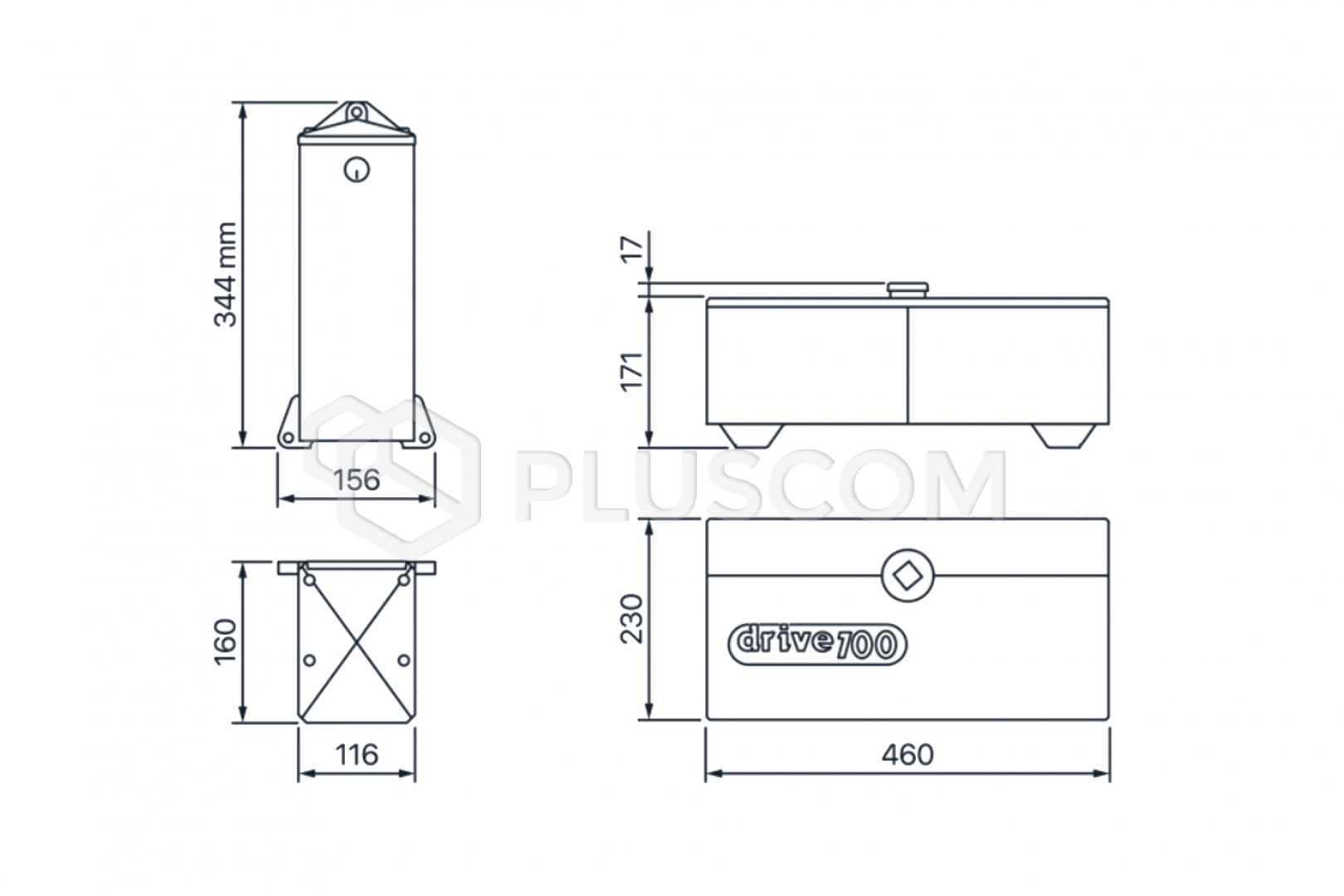

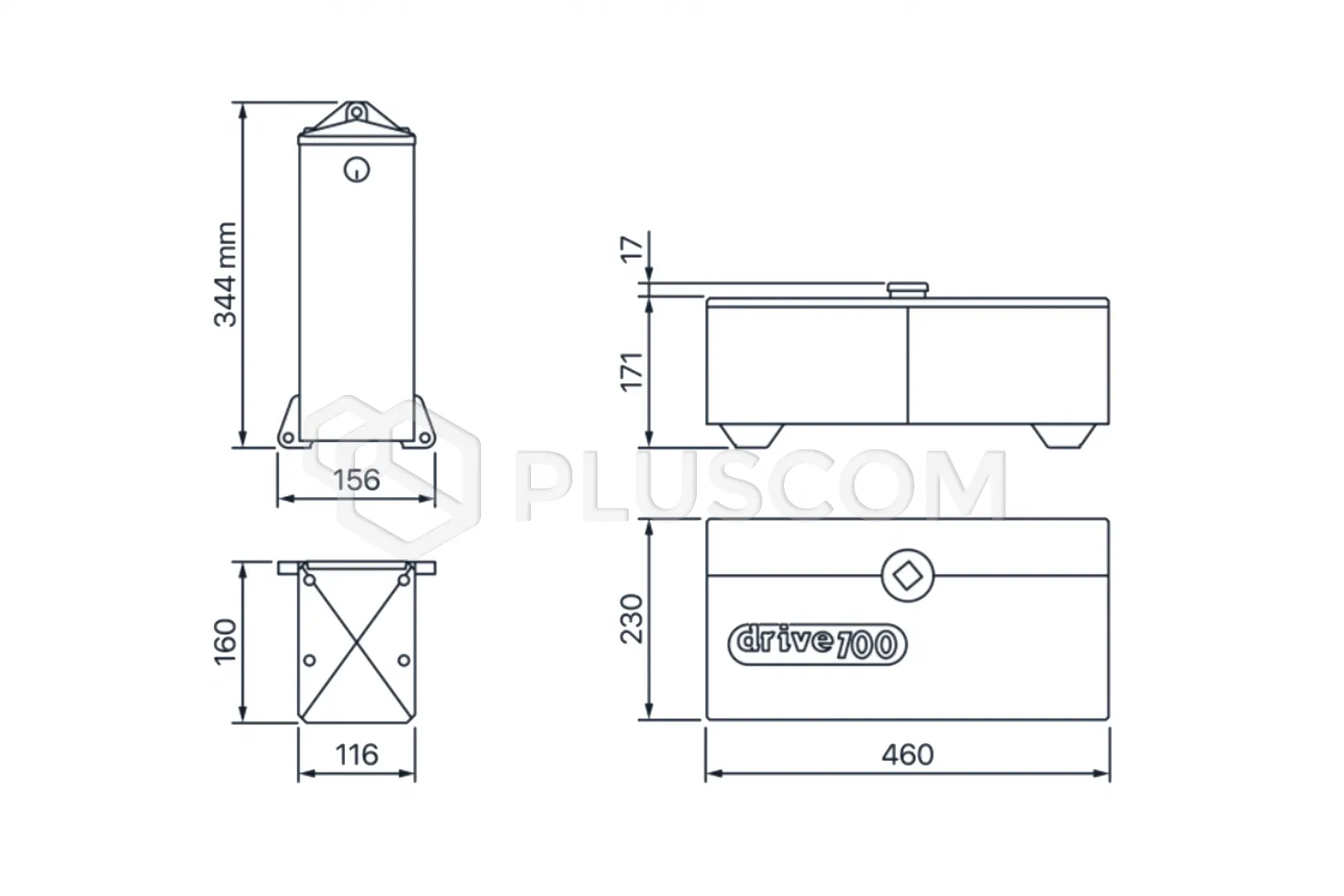

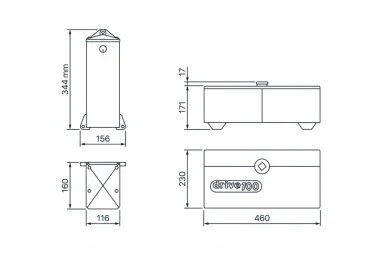

- Dimensions:
- actuator: 188x230x460mm
- control unit: 156x344x160mm
- Static weight of the motor-pump: 8kg
- Weight of the actuator and accessories: 16kg
