Fadini 4202L ELPRO 42 110V control unit for two DARDO 424 24V actuators with encoder

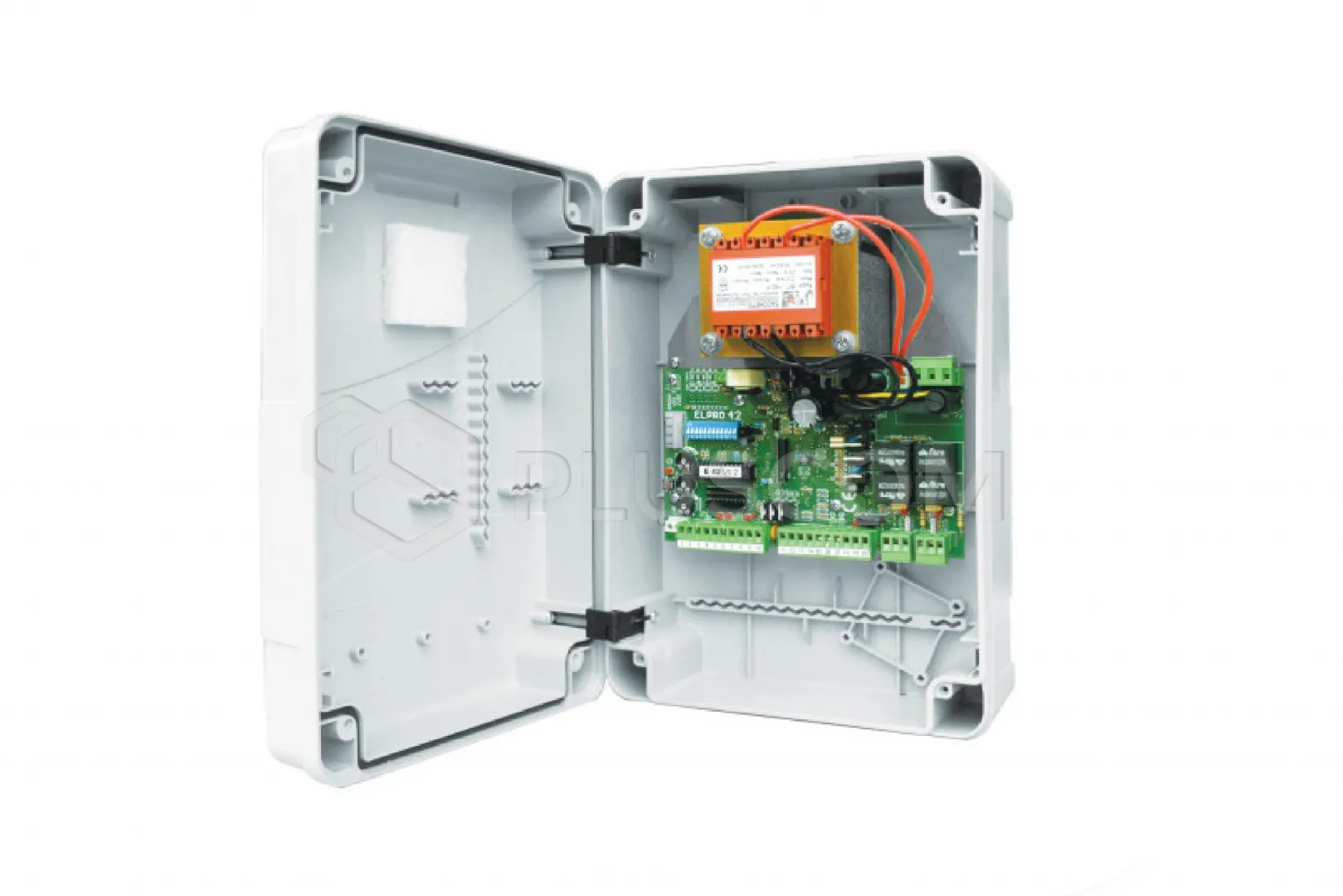

ELPRO 42 110V control unit for swing gates for two DARDO 424 24V actuators with encoder. Board power supply 110V AC.
OPERATION LOGIC
Automatic, semi-automatic, step-by-step mode, wicket function, hydraulic shock and flashing of the lamp before opening the gate.
BASIC FUNCTIONS
Simplified programming with one button: working time, with or without leaf delay, with fixed delay during opening and closing. Amperometric function reversing the direction of movement upon collision with an obstacle.
Automatic photocell test (DSA), automatic safety edge test (DACS), logic system (RT DATA), input for electric lock, inputs for edge strips, speed, force and pause adjustment using a trimmer. Inputs for two drives. Possibility of connecting two 2.6Ah - 12V batteries. Housing dimensions 210 x 295 x 110 mm. IP64 protection level. Operating temperature -20°C +55°C. Power supply: 12V battery.
The control units are entirely designed and manufactured in Meccanica Fadini plants.
They comply with the applicable standards and directives in the field of electromagnetic compatibility and meet the requirements of any type of installation: swing gates, sliding gates, automatic barriers, doors, double-leaf, single-leaf or folding gates, or extendable hydraulic posts.
Each ELPRO control unit has its own logic system adapted to the type of actuator. Easy programming of various functions.
All boards are equipped with a connector for Fadini radio receivers.
To obtain a door lock on the plastic housing, a voltage cut-off switch equipped with a lever can be mounted
FEATURES:
- Three-phase power supply: NO
- Photocell operation on opening: YES
- Second pair of photocells input: YES
- Dedicated safety edge input: YES
- Dedicated second safety edge input: YES
- Photocell safety self-test device (DSA): YES
- Safety edge self-test device (DACS): YES
- Electronic brake: NO
- Memorization of remaining motor operating time in interrupted cycles: NO
- Soft start and deceleration: YES
- Force adjustment: YES
- RT data: YES
- Learning of working times using the remote control: YES
- Slave mode: NO
- Electric lock: YES
- Step-by-step mode: YES
- MOTMAN mode: NO
- Wicket function: YES
- Pedestrian opening using the remote control: YES
- Change of direction of movement: YES
- External clock: YES
- Gate status indicator: YES
- Automation status indicator: YES
- Semi-automatic mode: YES
- Automatic mode: YES
- Pre-flashing: YES
- No flashing when stationary, automatic mode: YES
- Radio receiver connection: YES
- Residential complex: YES
- Close after photo: YES
- Semaphores: NO
Technical data:
- 1-phase power supply: 110V - 50/60Hz
- 3-phase power supply: -
- Maximum engine power: 200W
- Additional lighting output: 24V - 50mA
- Accessories power supply: 24V - 500mA
- Gate status indicator output: 24V - 3W
- DSA control output: 24V - 150mA
- Warning lamp output: 24V - 15W
- Engine operating time: -
- Pause time: 1 - 120 s
- Gate closing delay: -
- Pedestrian opening time: -
