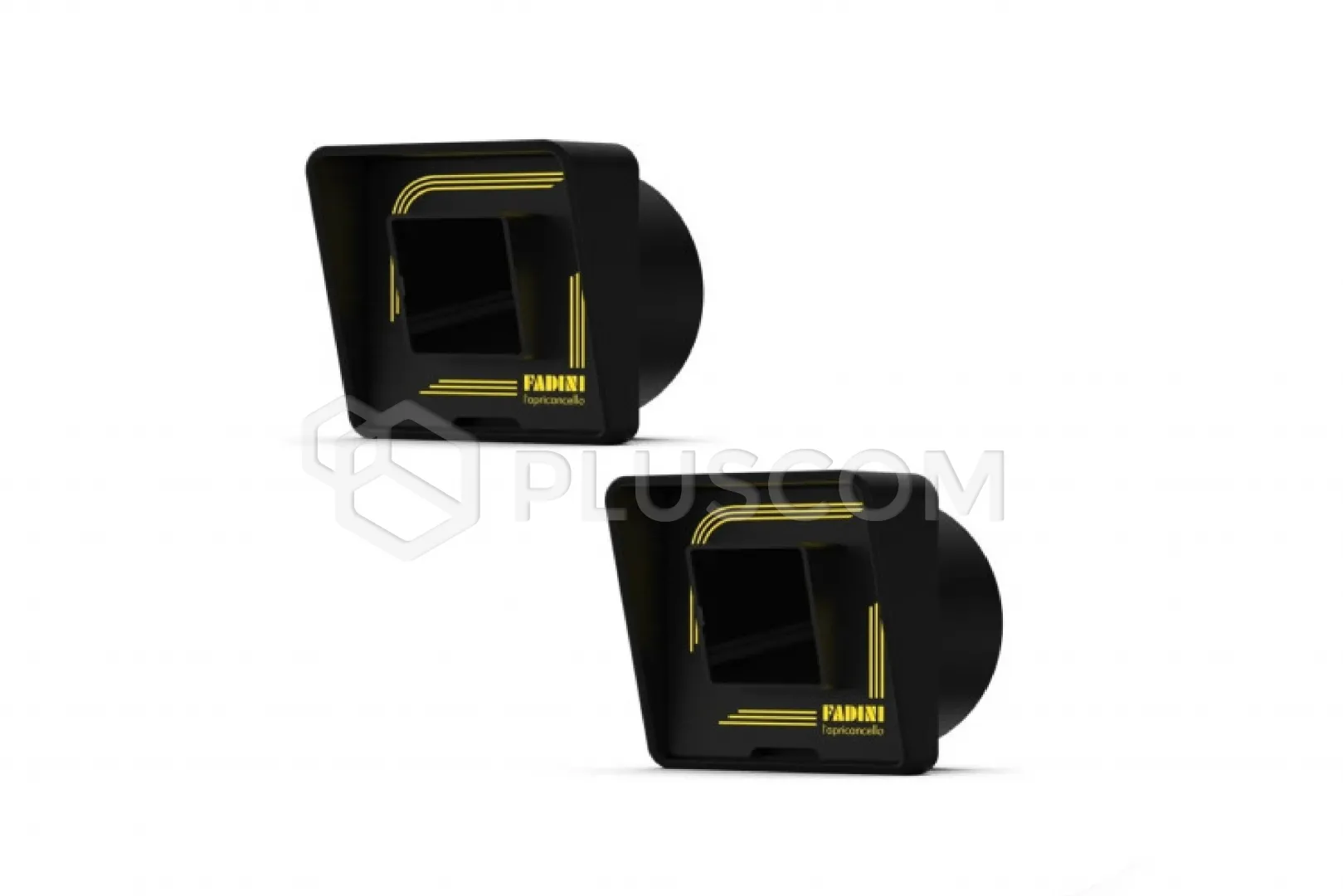

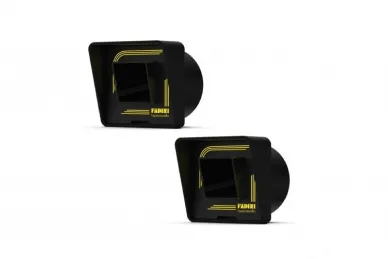

Fadini 330L DIFO 33 Flush-mounted relay photocells

52,50 EUR including 22.00% VAT
Product code: #36909
Manufacturer: Fadini
  • Power supply: 24V
  • Range: 12 m
  • Degree of protection: IP44
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Fadini 330L DIFO 33 Flush-mounted relay photocells


DIFO 33 flush-mounted relay photocells - a safety device compliant with EN 12453, equipped with one receiver and one transmitter.

SOLID

ABS plastic cover with high resistance to weather conditions.

SAFE

Range 12 m. Relay output enabling connection to any control unit from the ELPRO series or an existing installation. Supply voltage 24 V AC/DC.

Technical data:

  • Power supply: 24V
  • Modulation frequency: 1,100Hz
  • Transmitter current consumption: 40 mA
  • Receiver current consumption: 50 mA
  • Operating temperature: -10°C / +60°C
  • Relay contact load capacity: 1A/125Vac - 60VA
  • Range: 12 m*
  • Protection class: IP44
*The distance is reduced by about 30-50% in case of fog, rain or dust.
