Fadini 243L ELPRO 6 exp control unit for industrial and garage doors for the APROLI 480 actuator

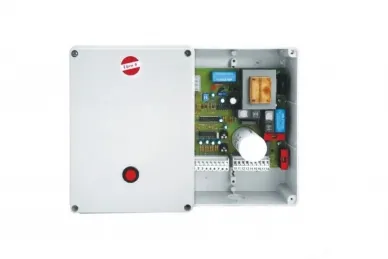

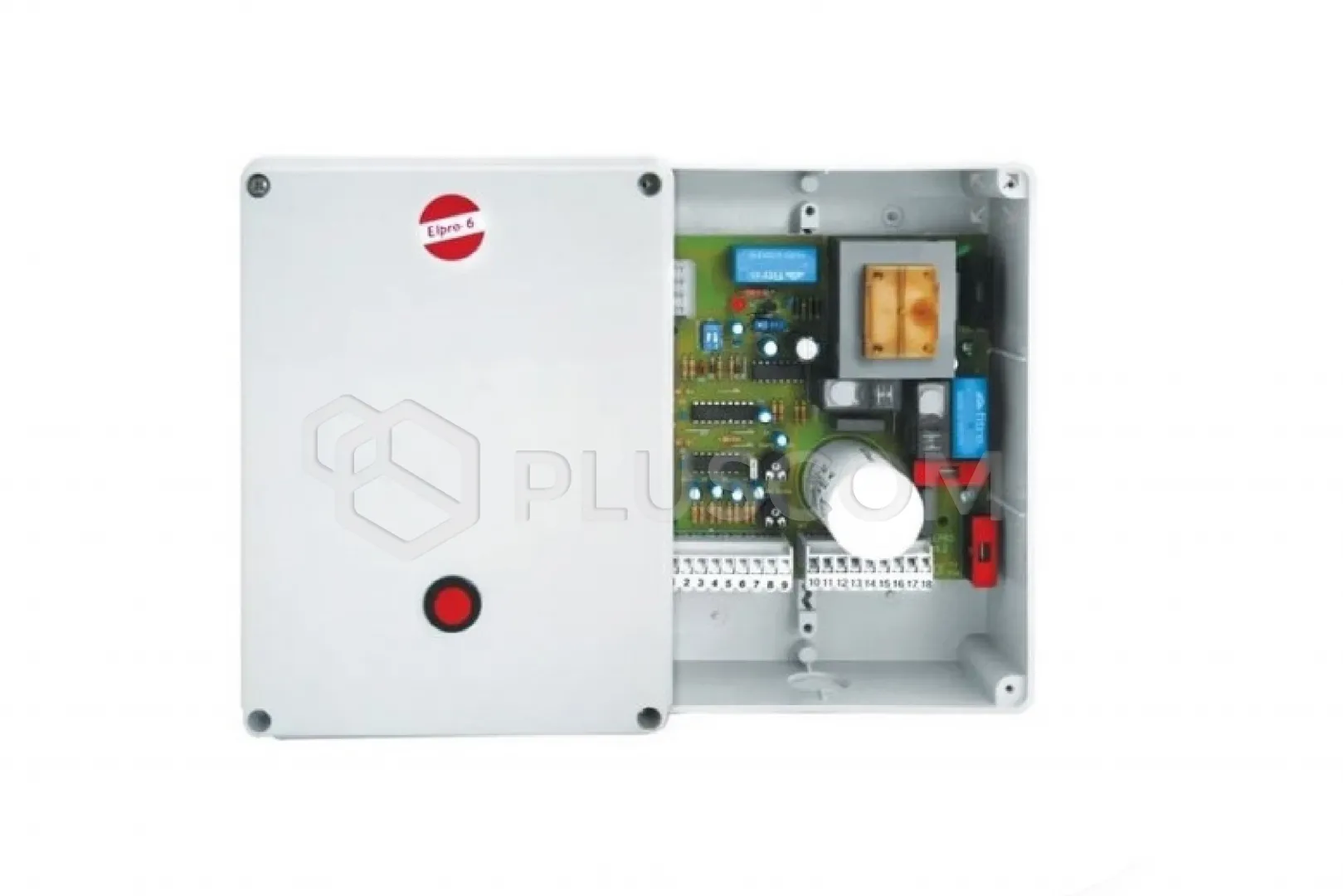

ELPRO 6 exp control unit for industrial and garage doors for the APROLI 480 actuator.
OPERATION LOGIC
Automatic, semi-automatic, step-by-step mode.
BASIC FUNCTIONS
Intuitive adjustment using trimmers and DIP switches: button for operating the open/stop/close movement, input for the radio receiver, connection of photocells, low and high voltage fuses, automatic closing. Housing dimensions 147 x 197 x 80 mm. IP protection level 56. Operating temperature -20°C +55°C.
The control units are entirely designed and manufactured in the Meccanica Fadini plants.
They comply with the applicable standards and directives in the field of electromagnetic compatibility and meet the requirements of any type of installation: swing gates, sliding gates, automatic barriers, doors, double-leaf, single-leaf or folding gates, or extendable hydraulic posts.
Each ELPRO control unit has its own logic system adapted to the type of actuator. Easy programming of various functions.
All boards are equipped with a connector for Fadini radio receivers.
To obtain a door lock on the plastic housing, a voltage cut-off switch equipped with a lever can be mounted
FEATURES:
- Three-phase power supply: NO
- Photocell operation on opening: NO
- Second pair of photocells input: NO
- Dedicated safety edge input: NO
- Dedicated second safety edge input: NO
- Photocell safety self-test device (DSA): NO
- Safety edge self-test device (DACS): NO
- Electronic brake: NO
- Memorization of remaining motor operating time in interrupted cycles: NO
- Soft start and deceleration: NO
- Force adjustment: NO
- RT data: NO
- Learning of working times using the remote control: NO
- Slave mode: NO
- Electric lock: NO
- Step-by-step mode: YES
- Maintained mode: NO
- Wicket door function: NO
- Pedestrian opening using the remote control: NO
- Change of direction of movement: NO
- External timer: NO
- Gate status indicator: YES
- Automation status indicator: NO
- Semi-automatic mode: YES
- Automatic mode: YES
- Pre-flashing: NO
- No flashing when stationary, automatic mode: NO
- Radio receiver connection: YES
- Residential complex: NO
- Close after photo: NO
- Semaphores: NO
Technical data:
- 1-phase power supply: 230V - 50Hz
- 3-phase power supply: -
- Maximum engine power: 400W
- Additional lighting output: 230V - 25W
- Accessories power supply: 24V - 500mA
- Gate status indicator output: -
- DSA control output: -
- Warning lamp output: 230V - 25W
- Engine operating time: -
- Pause time: -
- Gate closing delay: -
- Opening hours for pedestrians: -
