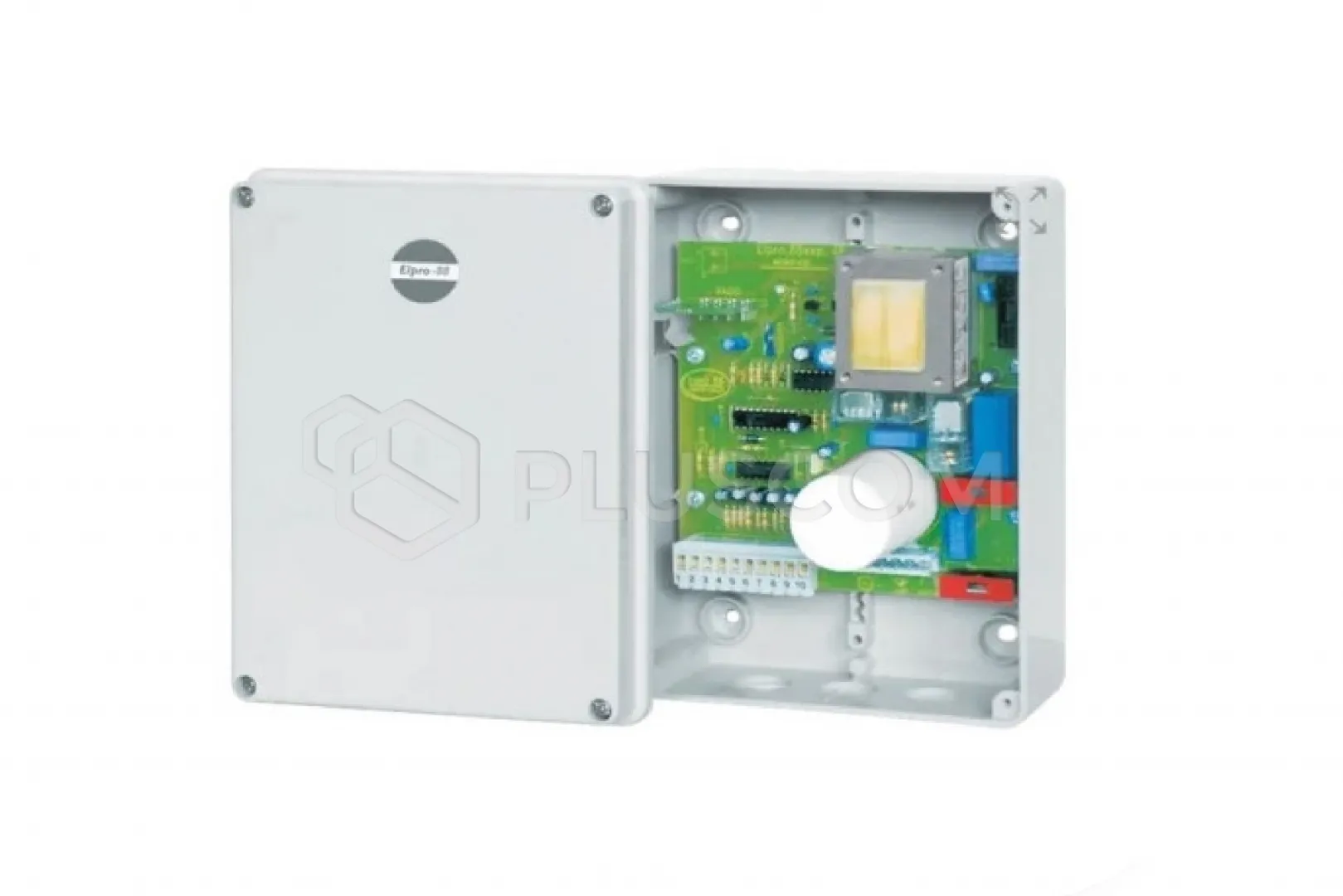

Fadini 2431L ELPRO 88 exp control unit for BARRI 88 230V barrier
ELPRO 88 exp control unit for one BARRI 88 230V 1PH barrier.
OPERATION LOGIC
Automatic, semi-automatic, step-by-step mode.
BASIC FUNCTIONS
Intuitive adjustment using trimmers and DIP switches:
radio receiver input, photocell connection, low and high voltage fuses,
automatic closing. Housing dimensions 147 x 197 x 80 mm. IP 56 protection
level. Operating temperature -20°C +55°C
Control units are entirely designed and manufactured in Meccanica Fadini
plants.
They comply with the applicable standards and directives in the field of
electromagnetic compatibility and meet the requirements of any type of
installation: swing gates, sliding gates, automatic barriers, doors,
double-leaf, single-leaf or folding gates, or extendable hydraulic posts.
Each ELPRO control unit has its own logic system adapted to the type of
actuator. Easy programming of various functions.
All boards are equipped with a connector for Fadini radio receivers.
To obtain a door lock on the plastic housing, a voltage cut-off switch equipped
with a lever can be mounted
FEATURES:
- Three-phase power supply: NO
- Photocell operation on opening: NO
- Second pair of photocells input: NO
- Dedicated safety edge input: NO
- Dedicated second safety edge input: NO
- Photocell safety self-test device (DSA): NO
- Safety edge self-test device (DACS): NO
- Electronic brake: NO
- Memorization of remaining motor operating time in interrupted cycles:
NO
- Soft start and deceleration: NO
- Force adjustment: NO
- RT data: NO
- Learning of working times using the remote control: NO
- Slave mode: NO
- Electric lock: NO
- Step-by-step mode: YES
- MAINTAINED mode: NO
- Wicket door function: NO
- Pedestrian opening using the remote control: NO
- Change of direction of movement: NO
- External timer: NO
- Gate status indicator: NO
- Automation status indicator: NO
- Semi-automatic mode: YES
- Automatic mode: YES
- Pre-flashing: NO
- No flashing when stationary, automatic mode: NO
- Radio receiver connection: YES
- Residential complex: NO
- Close after photo: NO
- Semaphores: NO
Technical data:
- 1-phase power supply: 230V - 50Hz
- 3-phase power supply: -
- Maximum motor power: 400W
- Additional lighting output: -
- Accessories power supply: 24V - 500mA
- Gate status indicator output: -
- DSA control output: -
- Warning lamp output: 230V - 25W
- Motor operating time: 60 s
- Pause time: -
- Gate closing delay: -
- Opening time for pedestrians: -
