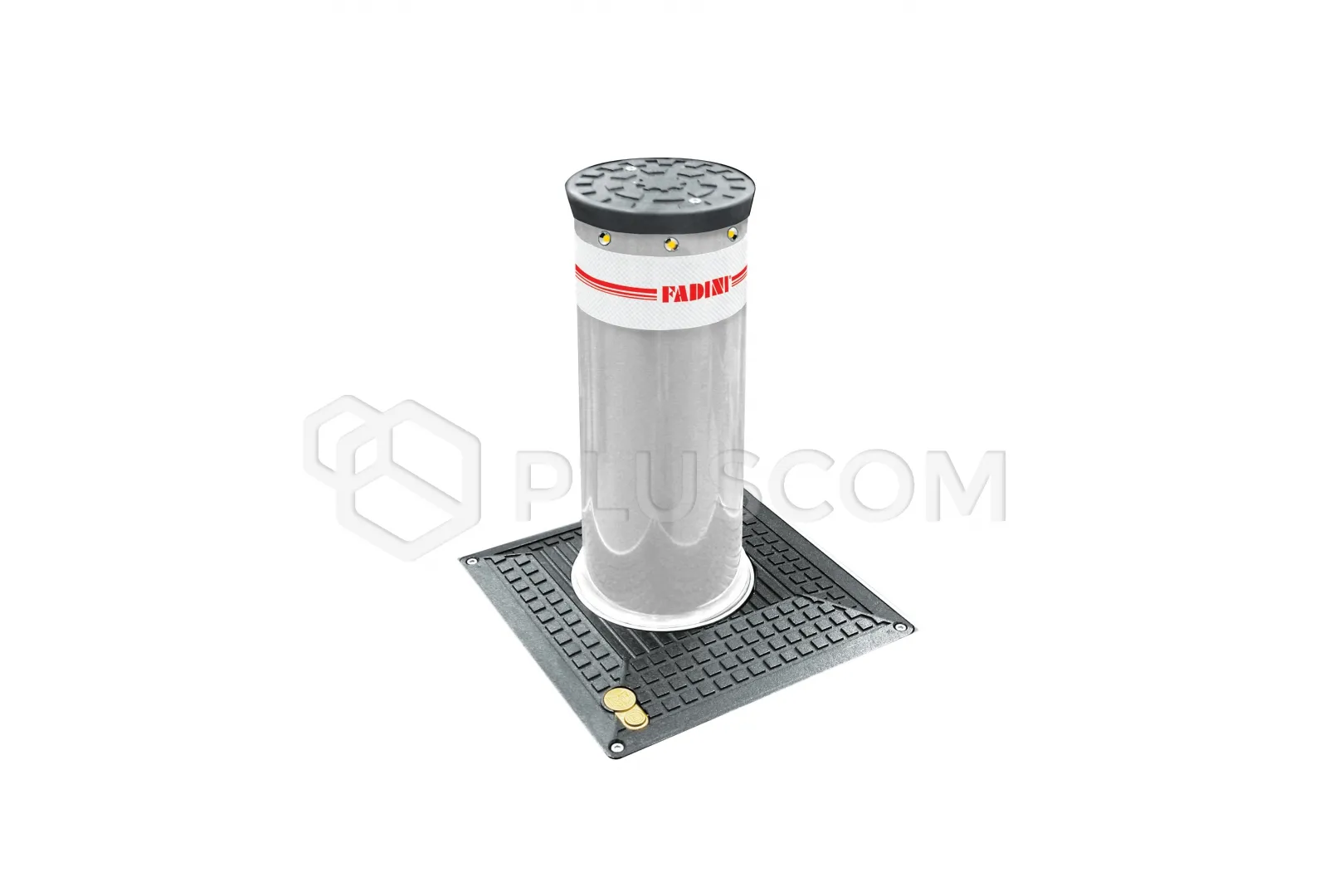

Fadini 2257L VIGILO Automatic Parking Bollard, Diameter 200mm, Height
500mm
This automatic parking bollard with a built-in hydraulic unit is the ideal
solution for access control in residential areas and commercial and industrial
complexes.
Thanks to the limited weight of the housing, which is embedded in concrete,
there is no need for special excavations or masonry work. The scratch-resistant
steel cylinder is protected by cataphoresis and coated with a polyester powder
coating. Hall-effect limit switches, a rubber seal on the column cover, and LED
warning lights (optional).
The 2257L VIGILO is an automatic bollard, 500mm high and 200mm in diameter. The
bollard is powered by 230 V AC 50 Hz, single-phase. The column is made of 4mm
thick steel, protected against corrosion by cataphoresis and powder-coated.
The set includes a housing,
a movable cylinder made of brushed AISI 304
stainless steel, 24V DC solenoid valve, a rubber-protected upper
section of the column, self-adhesive reflective tape, two limit switches, a
release key, and a 10-meter power cable for the hydraulic cylinder and limit
switches. the hydraulic actuator and limit switches.
EASY AND QUICK INSTALLATION
Thanks to the limited weight of the housing, which is to be concreted into the
ground, there is no need for special excavations or masonry work.
TECHNICAL DATA:
- Post diameter: 200mm
- Post thickness: 4mm
- Post height: 500mm
- Power supply: 230Vac - 50Hz
- Power: 330W
- Current: 1.8A
- Output power: 0.25kW (0.33HP)
- Impact resistance: 30,000J
- Break resistance: 160,000J
- Post material: S235J steel
- Finish: RAL7016 Polyester coating
- Underground housing: hot-dip galvanized
- Lifting time: ~5.1 s
- Lower time: ~4.3 s
- Operating temperature: -20°C + 80°C
- Oil type: FADINI oil - code 708L
- Oil pump protection class: IP67
- Use frequency: intensive
- Weight: 102 kg
