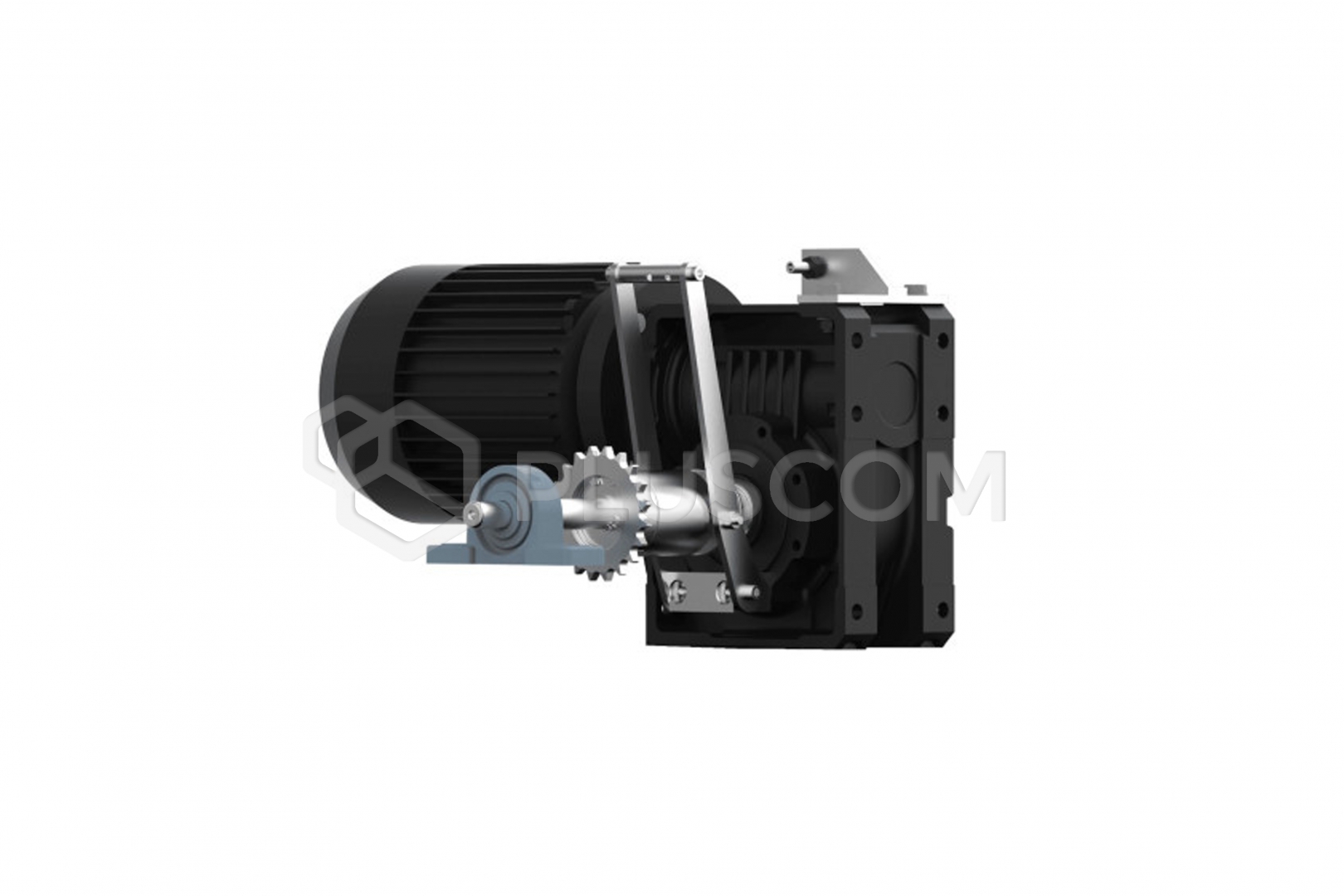

Fadini 2220L FIBO 300 LB Electromechanical actuator with chain drive

2285,40 EUR including 22.00% VAT
Product code: #36827
Manufacturer: Fadini
  • Power supply: 230V/400V
  • Door area: 50m²
  • Gear: Z20 - ½”
  • Manual gate release system
  • Intensive work
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
36,31 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 706L FADINI UTTO transmission oil canister 2L

Fadini 2220L FIBO 300 LB Electromechanical actuator with chain drive


Electromechanical actuator with chain drive for applications with metal chain drive, especially for industrial sliding gates with guides, with a single frame or for roller gates. Equipped with a worm gear in oil bath and a bronze pinion, on ball bearings.
It is a strong and reliable gate automation system, equipped with a manually adjustable clutch system and a worm clutch made of bronze and steel, supported by ball bearings.
A manual override device allows manual operation of the gate in the event of a power failure or disconnection.

TECHNICAL DATA:

  • Power supply: 230/400V - 50/60Hz
  • Power consumption: 1,500W
  • Current consumption: 5.1/3A
  • Power efficiency: 1.1 kW / 1.5 HP
  • Engine speed:
    • 1,400 rpm - 50 Hz
    • 1,700 rpm - 60 Hz
  • Nominal torque:
    • 300 Nm - 50 Hz
    • 247 Nm - 60 Hz
  • Travel speed:
    • 9 m/min - 1,400 rpm - 50 Hz
    • 11 m/min - 1.700 rpm - 60 Hz
  • Limit switch: external
  • Gear ratio: 1/40
  • Use frequency: intensive
  • Operating temperature: -25°C ÷ +80°C
  • Protection class: IP55
  • Oil type: 706L
  • Weight: 28 kg
Download
User manual 0.44 MB
