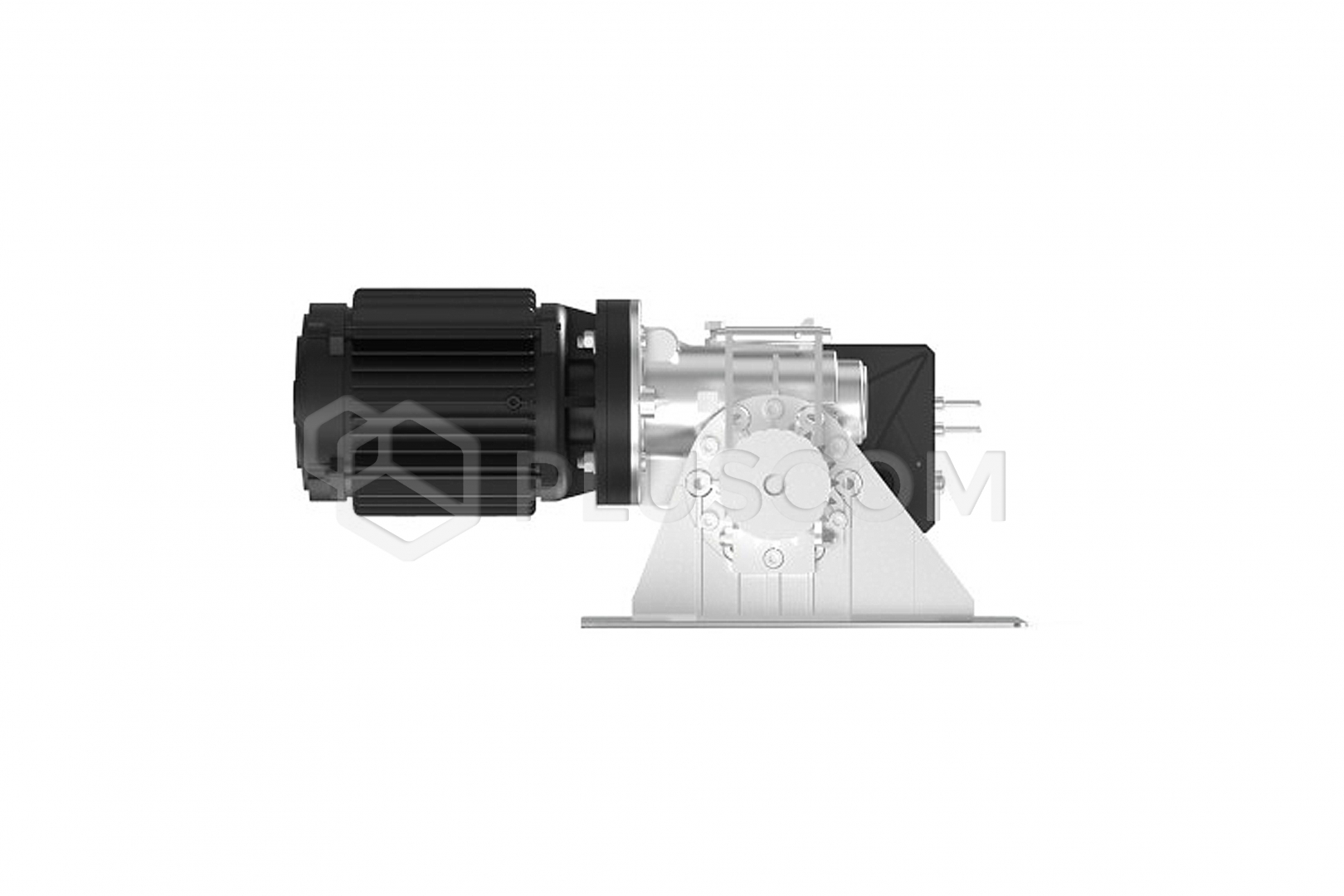

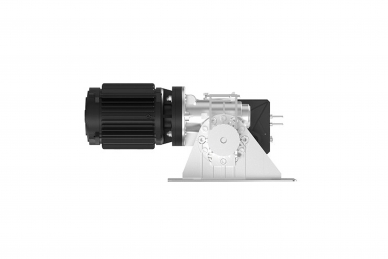

Fadini 205867L MEC 200 LB Electromechanical actuator with chain drive

1235,36 EUR including 22.00% VAT
Product code: #43035
Manufacturer: Fadini
  • Power supply: 230V/400V
  • Door area: 50m²
  • Air-cooled engine with electric brake
  • Manual release system
  • Intensive work
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
36,31 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 2055L Galvanized steel gear wheel 1/2” Z20 for MEC 200 LB drive Fadini 2054L 1/2” chain, 5 m long, for MEC 200 LB drive Fadini 2053L Chain tensioner sprocket 1/2” Z20 and mounting bracket for MEC 200 LB drive Fadini 2050L Gearbox for MEC 200 LB Fadini 2049L Gearbox for MEC 200 LB Fadini 2046L Galvanized steel base for wall mounting of the MEC 200 LB drive Fadini 2044L Emergency opening lever complete with 7-meter cable and key for MEC 200 LB drive Fadini 706L FADINI UTTO transmission oil canister 2L Fadini 2036L 1/2” Z40 galvanized steel gear with 25mm diameter hole for MEC 200 LB drive Fadini 2059L Built-in limit switch for MEC 200 LB drive

Fadini 205867L MEC 200 LB Electromechanical actuator with chain drive


Electromechanical actuator with chain drive, for industrial use, powered by 230 V and 400 V AC. It is equipped with a worm gear in an oil bath and a bronze gear wheel, on ball bearings. Air-cooled engine with electric brake.
It is strong and reliable. Torque control is by means of a mechanical clutch system, manually adjustable.

SAFE
Release lever, complete with steel cable and key for restoring the initial state. Wide range of accessories available for comprehensive assembly.

TECHNICAL DATA:

  • Power supply: 230V/400V AC
  • Power consumption: 1.5W
  • Current consumption: 5.1/3A
  • Power efficiency: 1.1 kW
  • Opening time: 9.6 Z20 1/2”s
  • Max. torque: 110Nm
  • Door area: 50m²
  • Oil type 706L
  • Operating temperature: -20 ÷ +80 °C
  • Protection class IP 55
  • Dimensions: 460x225x255mm
  • Static operator weight: 25kg
  • Use frequency intensive
Download
User manual 1.5 MB
