Fadini 2052L Industrial gate operator MEC 200 LB 1 KM 230/400V 3PH

965,24 EUR including 23.00% VAT
Product code: #36801
Manufacturer: Fadini
  • Power supply: 230/400V
  • For gates with a gate area of ​​up to 50 m²
  • Travel speed: 9.6 m/min
  • For intensive use
  • Degree of protection: IP55
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 2049L Gearbox for MEC 200 LB Fadini 2050L Gearbox for MEC 200 LB

Fadini 2052L Industrial door operator MEC 200 LB 1 KM 230/400V 3PH

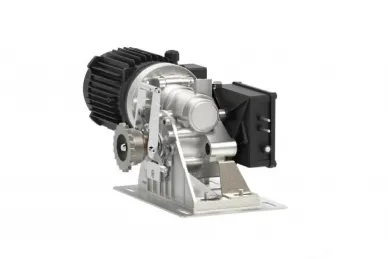

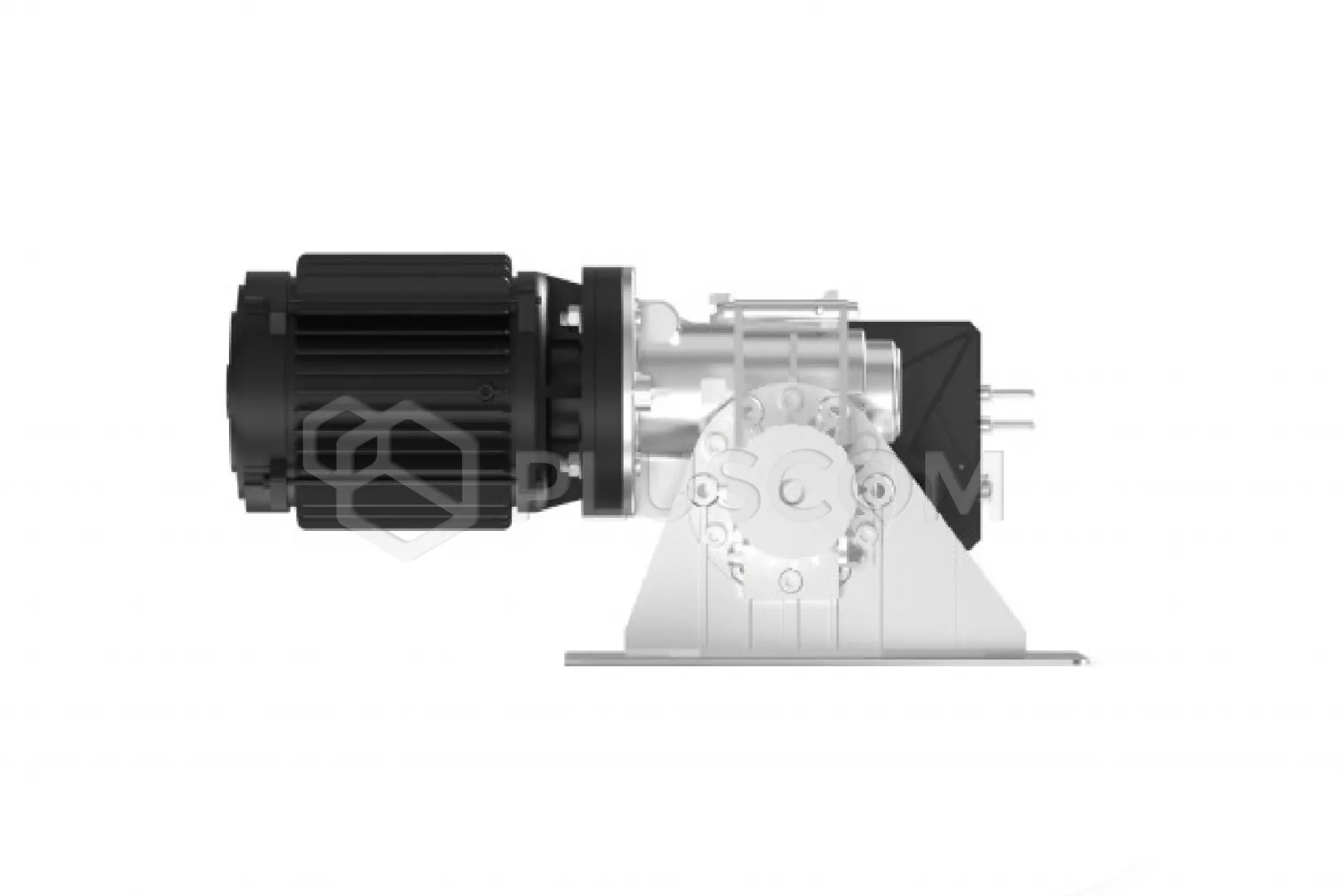

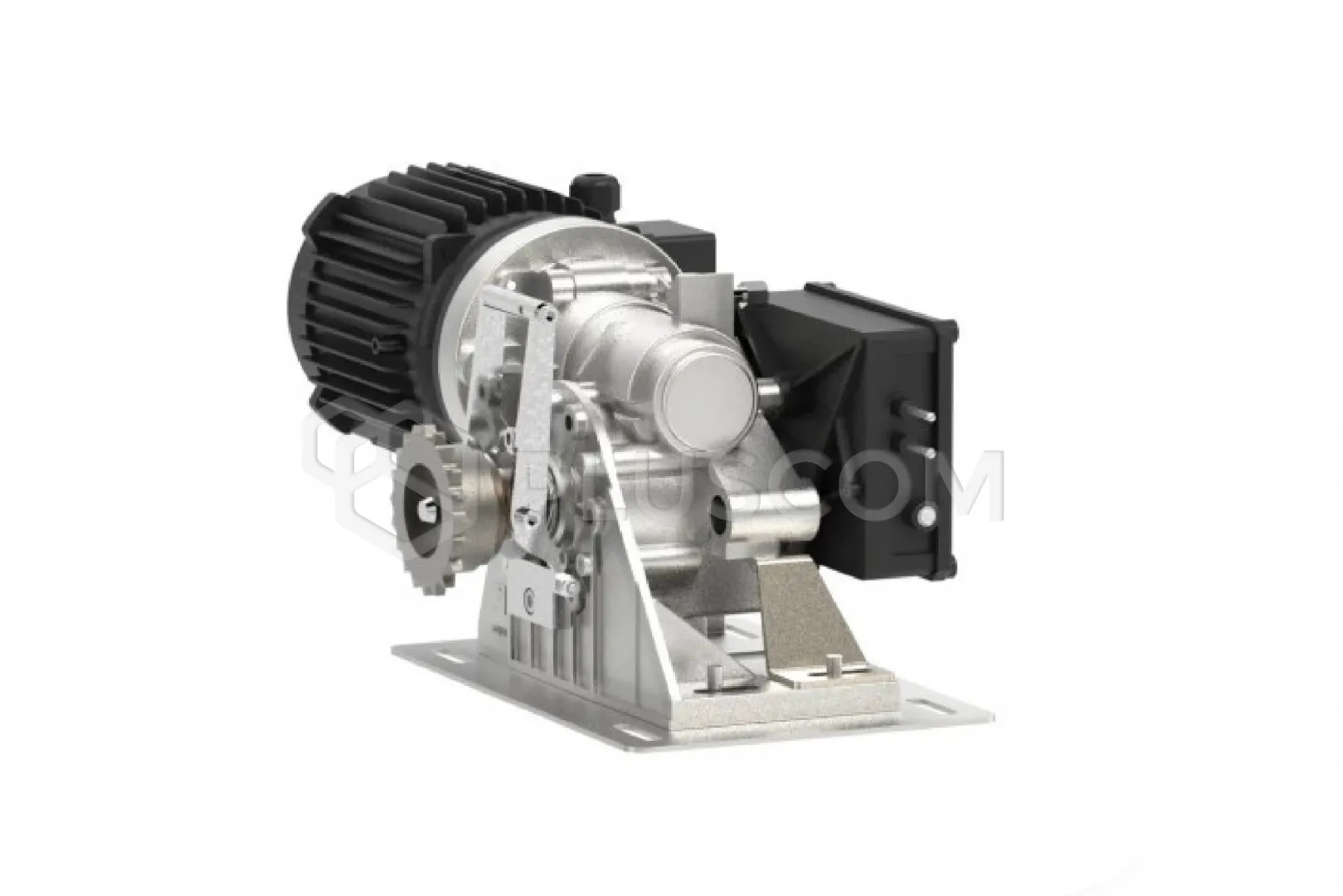

MEC 200 LB 230/400V electromechanical operator with chain drive for sectional, folding and industrial doors up to 50 m².

SOLID

230 V and 400 V AC gear motor, equipped with a worm gear in an oil bath and a bronze gear wheel on ball bearings.

EASY TO USE

Force adjustment by means of a mechanical clutch and the position of the limit stops in opening and closing.

SAFE

Release lever, complete with steel cable and key to restore the initial state. Wide range of accessories available for comprehensive assembly.

Technical data:

  • Power supply: 230/400V - 50Hz
  • Power consumption: 1030W
  • Current consumption: 3.7/2.2A
  • Power efficiency: 0.73kW
  • Nominal torque: 80 Nm
  • Transmission ratio: 1/32
  • Operating temperature: -20°C ÷ +80°C
  • Movement speed: 9.6 m/min Z20 1/2”
  • Limit switch: mechanical
  • Protection class: IP55
  • Oil type: 706L
  • Weight: 21 kg
  • Door surface: 50 m²
  • Frequency of use: intensive
Download
User manual 1.5 MB
