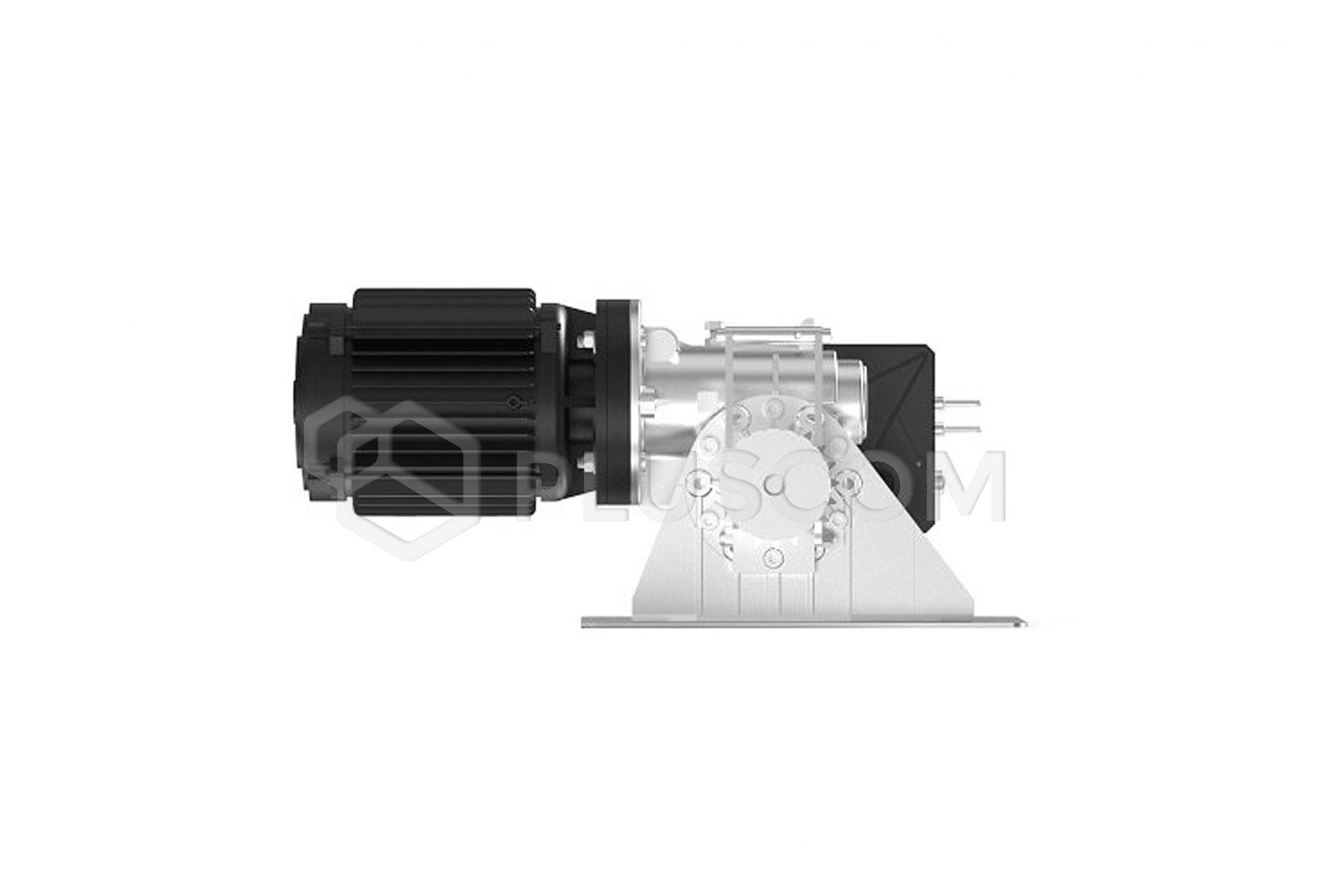

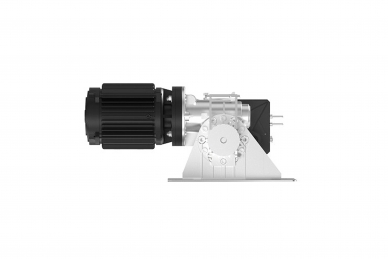

Fadini 205180L MEC 200 LB Reversible electromechanical actuator with chain drive

1027,52 EUR including 23.00% VAT
Product code: #36799
Manufacturer: Fadini
  • Power supply: 230V/400V
  • Door area: 25m²
  • Force regulation by means of a mechanical clutch
  • Manually opening or closing the gate in the event of a power failure
  • Intensive work
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
4,56 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 2054L 1/2” chain, 5 m long, for MEC 200 LB drive Fadini 2053L Chain tensioner sprocket 1/2” Z20 and mounting bracket for MEC 200 LB drive Fadini 2050L Gearbox for MEC 200 LB Fadini 2049L Gearbox for MEC 200 LB Fadini 2046L Galvanized steel base for wall mounting of the MEC 200 LB drive Fadini 2044L Emergency opening lever complete with 7-meter cable and key for MEC 200 LB drive Fadini 706L FADINI UTTO transmission oil canister 2L Fadini 2036L 1/2” Z40 galvanized steel gear with 25mm diameter hole for MEC 200 LB drive Fadini 2059L Built-in limit switch for MEC 200 LB drive Fadini 2057L External limit switch for opening and closing positions

Fadini 205180L MEC 200 LB Reversible electromechanical actuator with chain drive


Electromechanical actuator with chain drive, for industrial use, powered by 230 V and 400 V AC. It is equipped with a worm gear in an oil bath and a bronze gear wheel, on ball bearings.
It is strong and reliable. Torque control is by means of a mechanical clutch system, manually adjustable.

SAFE
It is possible to manually open or close the gate in the event of a power failure; there is no need to operate the release handle or release key.

TECHNICAL DATA:

  • Power supply: 230V/400V AC
  • Power consumption: 575W
  • Current consumption: 2.1/1.2A
  • Power efficiency: 0.37 kW
  • Opening time: 9.6 Z20 1/2”s
  • Max. torque: 40Nm
  • Door area: 25m²
  • Oil type 706L
  • Operating temperature: -20 ÷ +80 °C
  • Protection class IP 55
  • Dimensions: 390x220x225mm
  • Static operator weight: 18kg
  • Use frequency intensive
Download
User manual 1.5 MB
