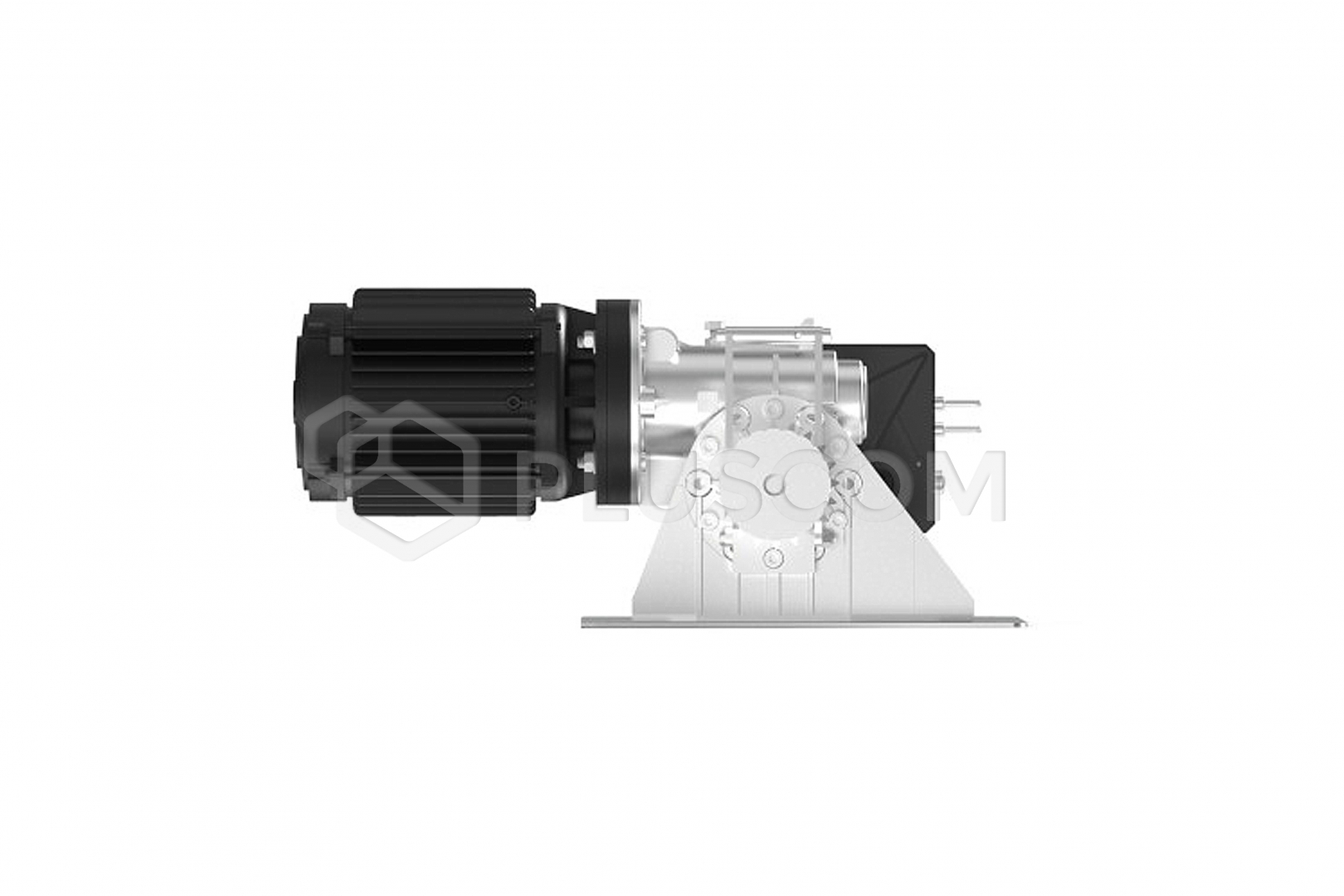

Fadini 205148L MEC 200 LB Reversible electromechanical actuator with chain drive

963,98 EUR including 19.00% VAT
Product code: #36797
Manufacturer: Fadini
  • Power supply: 230V AC
  • Door area: 25m²
  • Force regulation by means of a mechanical clutch
  • Manually opening or closing the gate in the event of a power failure
  • Intensive work
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
18,23 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 2044L Emergency opening lever complete with 7-meter cable and key for MEC 200 LB drive Fadini 706L FADINI UTTO transmission oil canister 2L Fadini 2036L 1/2” Z40 galvanized steel gear with 25mm diameter hole for MEC 200 LB drive Fadini 2059L Built-in limit switch for MEC 200 LB drive Fadini 2057L External limit switch for opening and closing positions Fadini 2056L Galvanized steel gear wheel 1/2” Z20 with shaft and bearing for MEC 200 LB drive Fadini 2055L Galvanized steel gear wheel 1/2” Z20 for MEC 200 LB drive Fadini 2054L 1/2” chain, 5 m long, for MEC 200 LB drive Fadini 2053L Chain tensioner sprocket 1/2” Z20 and mounting bracket for MEC 200 LB drive Fadini 2050L Gearbox for MEC 200 LB

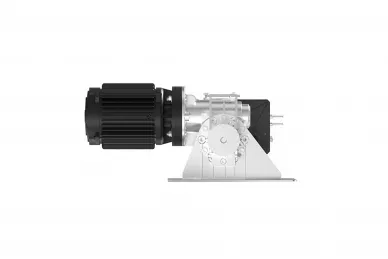

Fadini 205148L MEC 200 LB Reversible electromechanical actuator with chain drive


Electromechanical actuator with chain drive, for industrial use, powered by 230 V AC. It is equipped with a worm gear in an oil bath and a bronze gear wheel, on ball bearings.
It is strong and reliable. Torque control is by means of a mechanical clutch system, manually adjustable.

SAFE
It is possible to manually open or close the gate in the event of a power failure; there is no need to operate the release handle or release key.

TECHNICAL DATA:

  • Power supply: 230V AC
  • Power consumption: 510W
  • Current consumption: 2.1/1.2
  • Power efficiency: 0.37 kW
  • Opening time: 9.6 Z20 1/2”s
  • Max. torque: 40Nm
  • Door area: 25m²
  • Oil type 706L
  • Operating temperature: -20 ÷ +80 °C
  • Protection class IP 55
  • Dimensions: 405x230x225mm
  • Static operator weight: 19kg
  • Use frequency intensive
