Fadini 199L MEC 200 0.5 HP 230/400V 3PH drive with built-in control unit up to 1250 kg (horizontal)

1401,17 EUR including 23.00% VAT
Product code: #36784
Manufacturer: Fadini
  • Power supply: 230V AC
  • Max. wing weight: 1250 kg
  • Limit switch: mechanical
  • For intensive use
  • Degree of protection: IP 55
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Fadini 199L MEC 200 0.5 HP 230/400V 3PH drive with built-in control unit up to 1250 kg (horizontal)

The set includes:

  • MEC 200 230/400V 3PH drive (0.37 kW / 0.5 HP) (horizontal)
  • ELPRO 70/3 Plus control unit
  • Toothed wheel for toothed rack
  • Mounting plate with screws for ground mounting
  • Mechanical limit switch
  • Set of limit switch stops
  • Emergency opening key

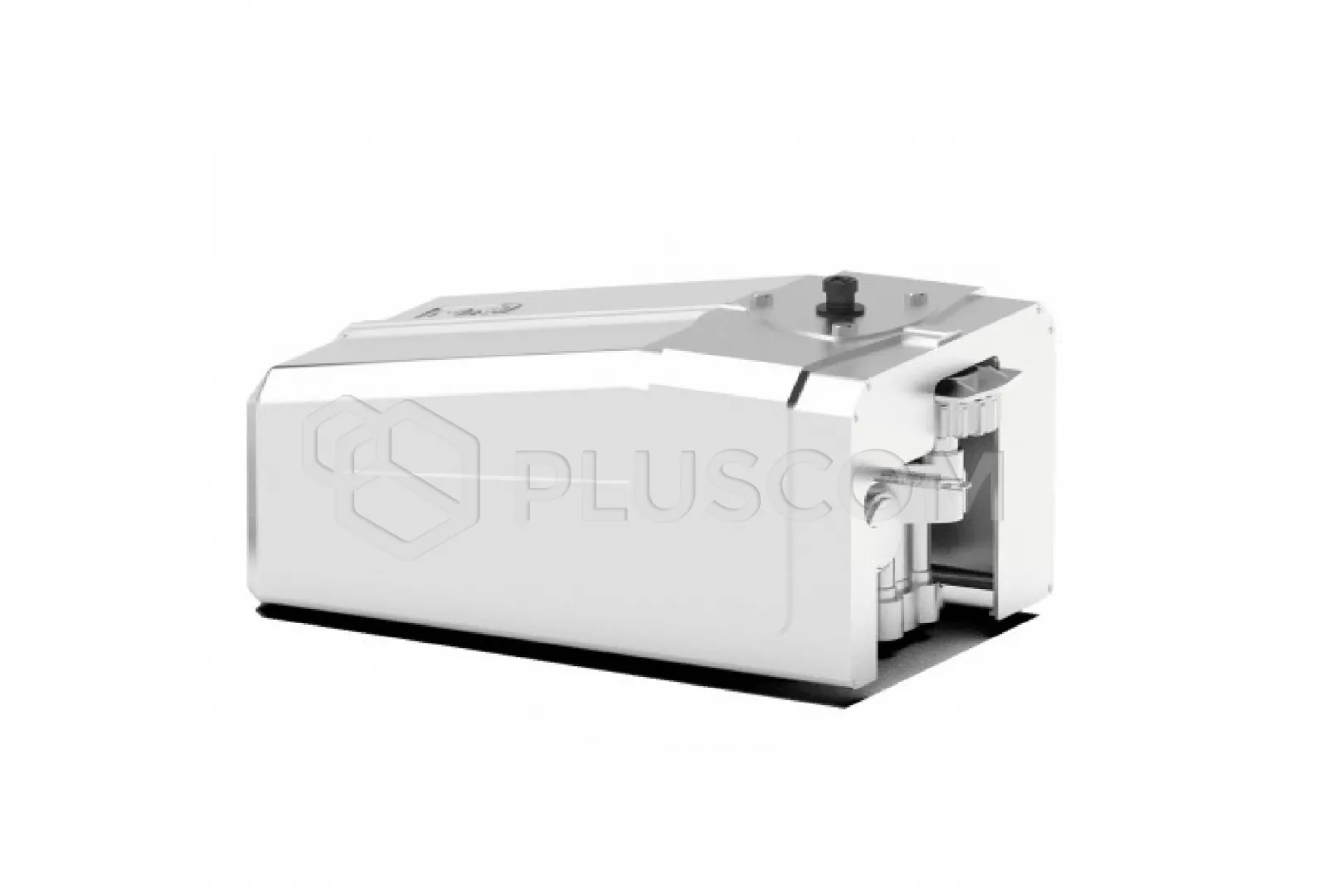

MEC 200 electromechanical drive with gear and mechanical clutch 230/400V 3PH (0.37 kW / 0.5 HP) (horizontal) with built-in ELPRO 70/3 Plus control unit up to 1250 kg for industrial use.

ATTENTION! The drive does not include an air-cooled motor with an electric brake.

POWERFUL

Ac-powered gear motor with a voltage of 230V and 400V, equipped with a worm gear in an oil bath and a bronze gear wheel, on ball bearings.

RELIABLE

The aluminum structure and housing provide a full guarantee for a long time.

SAFE

Mechanical clutch for force regulation; discs lubricated with liquid grease to increase efficiency.

SOLID AND COMPACT

Base made of die-cast aluminum.

UNIVERSAL

A full range of models with different types of electric motors, also available with a ventilated motor and electronic brake. Depending on the position of the rack on the gate, models are available with a horizontal or vertical rack. The control unit can be mounted inside the MEC 200 or placed outside in its own polycarbonate housing.

TESTED AND CERTIFIED

CE marking.

Technical data:

  • Power supply: 230/400V - 50Hz
  • Max. power consumption: 575W
  • Max. current consumption: 2.1/1.2A
  • Power efficiency: 0.37 kW
  • Engine speed: 1,380 rpm
  • Capacitor: -
  • Nominal torque: 40 Nm
  • Travel speed: 10 m/min
  • Gear ratio: 1/32
  • Operating temperature: -25°C ÷ +80°C
  • Limit switch: mechanical
  • Protection class: IP55
  • Oil type: 706L
  • Weight: 18.5 kg
  • Frequency of use: very intensive
