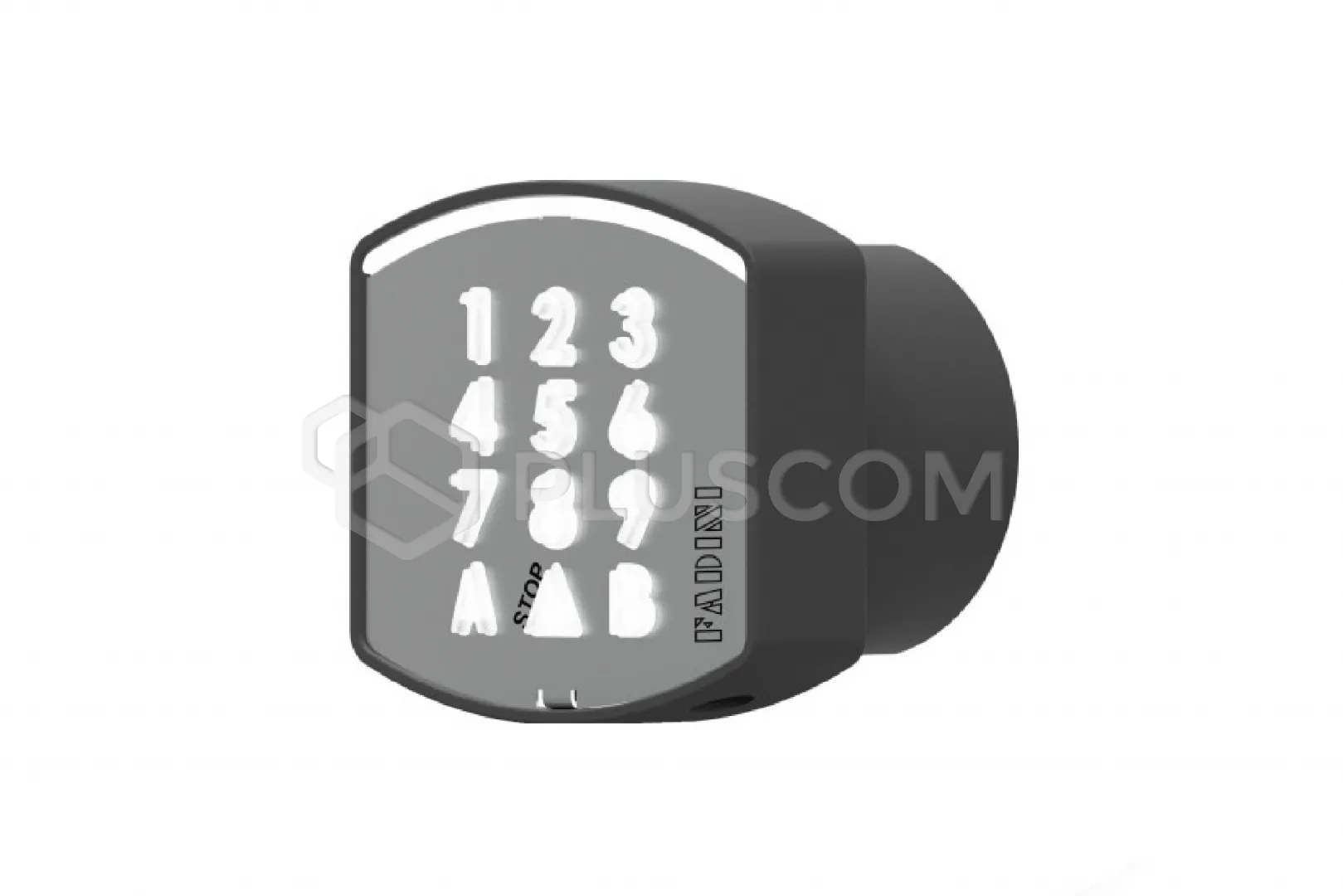

Fadini 147L ZERO.DGT Wired flush-mounted code keyboard

93,41 EUR including 23.00% VAT
Product code: #36733
Manufacturer: Fadini
  • Power supply: 12/24V
  • Channels (NO): 2
  • Channels (NC): 1
  • Range: max. 100 m
  • Degree of protection: IP54
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Fadini 147L ZERO.DGT Wired flush-mounted code keypad

MAXIMUM SECURITY

Powder-coated metal alloy housing with high weather resistance. Space saving: minimum distance from the wall of 21 mm in the flush-mounted version. Cover made of AISI 304 stainless steel with a satin finish.

Operation by numerical combination from 1 to 6 digits. Comprehensive line including mounting posts and fixing brackets.

LED BACKLIGHT

Light signalling of combination confirmation: green LED indicating a correct combination or red LED indicating an error. Acoustic signal emitted when the buttons are pressed. Timed and bistable functions and stop button.

Technical data:

  • Power supply: 12/24V
  • Keyboard current consumption: 25mA
  • Standby current consumption: 4mA
  • Active relay current consumption: 27mA
  • Operating temperature: -20°C ÷ +80°C
  • Channels (NO): 2
  • Channels (NC): 1
  • Range: max. 100 m
  • Relay contact load capacity: 1A/125 V AC, 60 VA
  • Protection class: IP54
