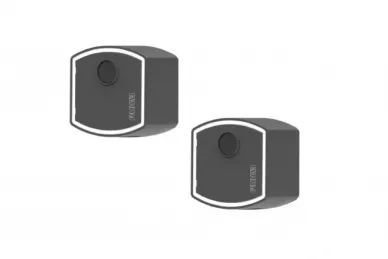

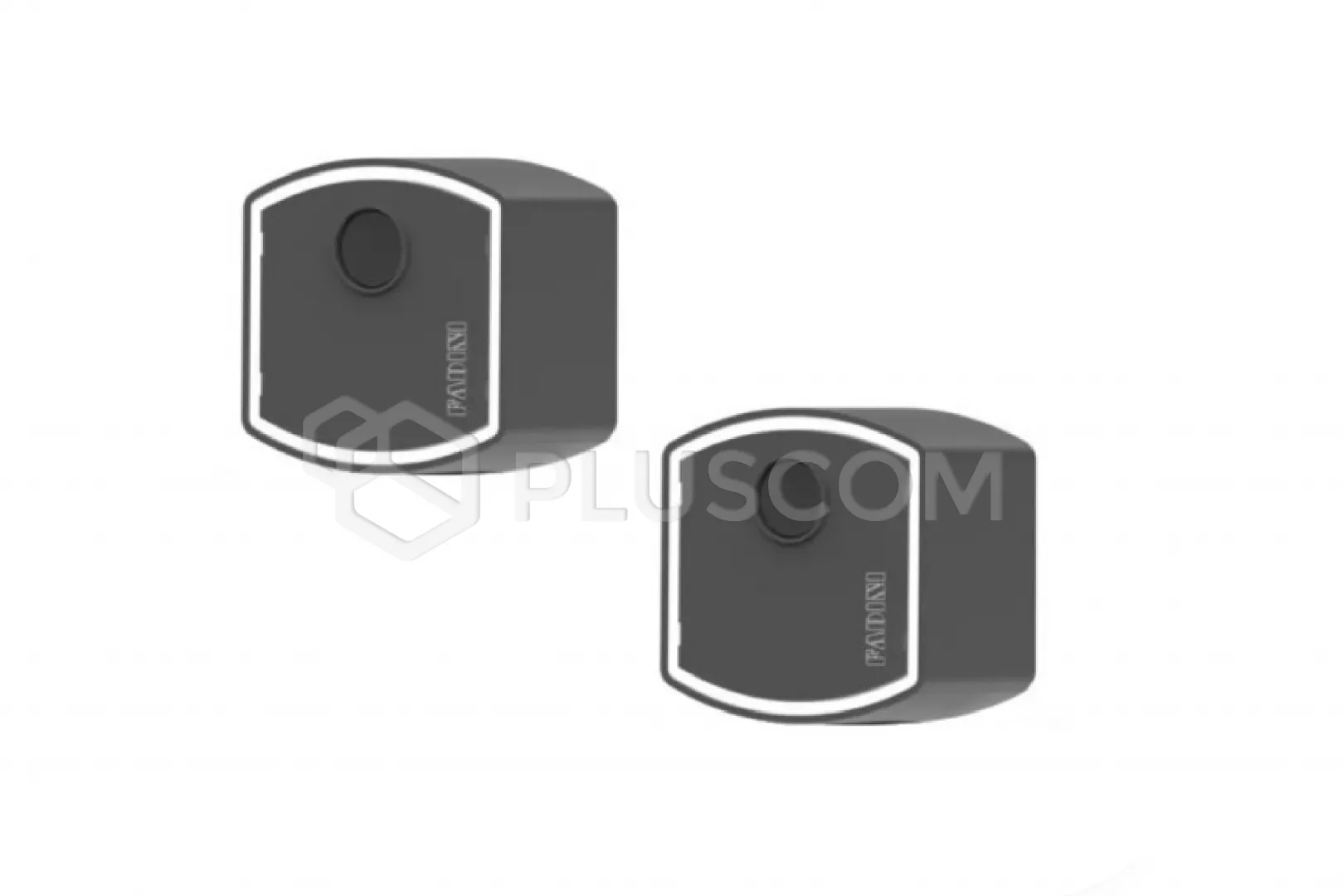

Fadini 140L ZERO.PH Surface-mounted relay photocells

52,93 EUR including 23.00% VAT
Product code: #36726
Manufacturer: Fadini
  • Power supply: 12/24V
  • Range: 20 m
  • Obstacle detection time: 6 ms
  • Degree of protection: IP55
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Fadini 140L ZERO.PH Relay surface-mounted photocells


ZERO.PH relay surface-mounted photocells - a safety device compliant with the EN 12453 standard, equipped with one receiver and one transmitter. The electronic and optical components are enclosed in a hermetic plastic housing. Frame with white LED light.

EASY TO INSTALL

Compact dimensions: protrudes only 188 mm above the surface in the flush-mounted version, ABS housing with a high degree of weather resistance. The product line also includes a complete range of columns and additional mounting brackets.

SAFE

Range 20 m. Relay output enabling connection to any control unit from the ELPRO series or an existing installation. Supply voltage 24V AC/DC.

Technical data:

  • Modulation frequency: 625/320 Hz
  • Power supply: 12/24V
  • Transmitter current consumption: 26 mA
  • Receiver current consumption: 36 mA
  • Operating temperature: -20°C / +70°C
  • Relay contact load capacity: 30Vdc, 1/125A/Vac, 0.3A
  • Range: 20 m*
  • Obstacle detection time: 6 ms
  • Protection class: IP55
*The distance is reduced by approximately 30-50% in case of fog, rain or dust.
