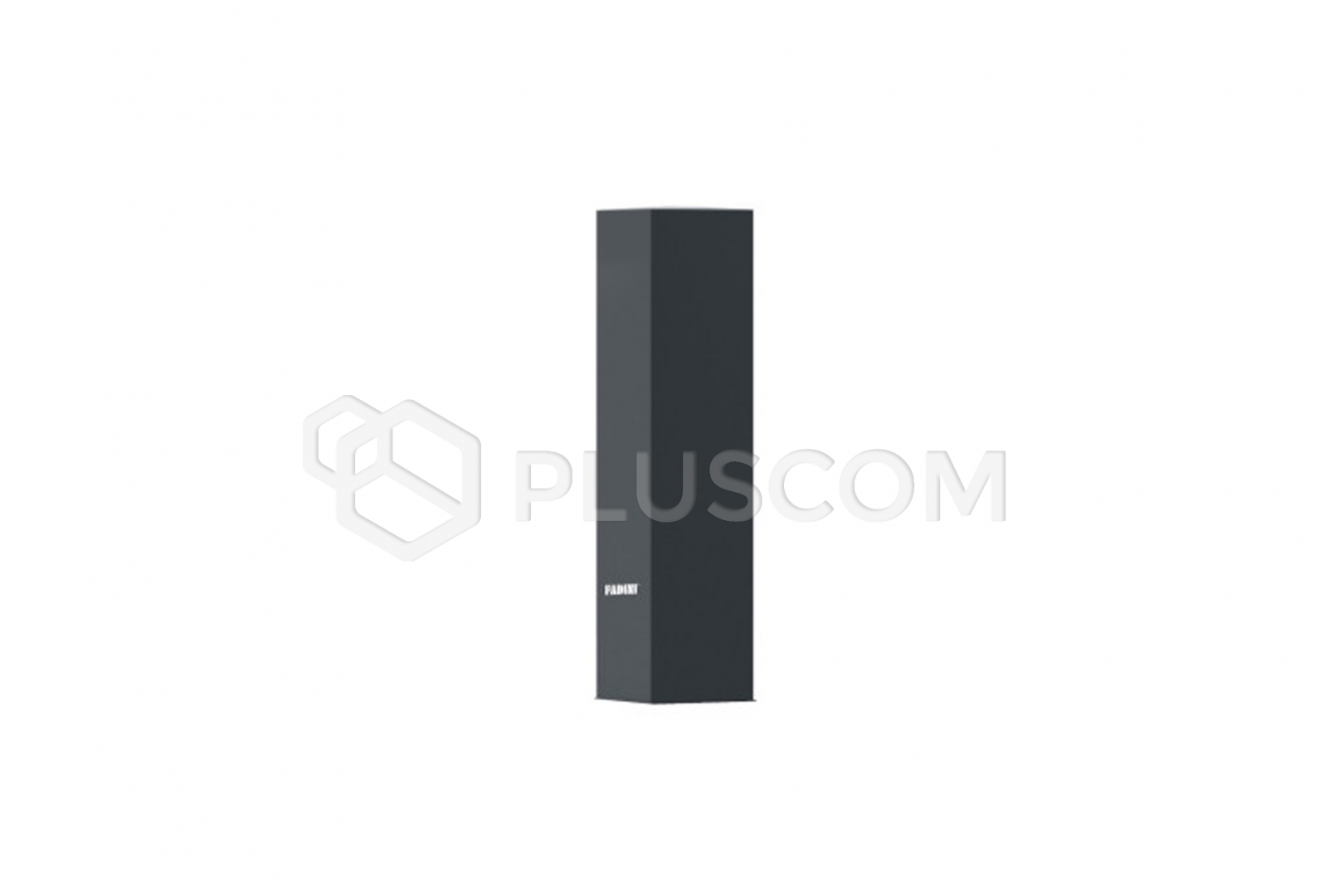

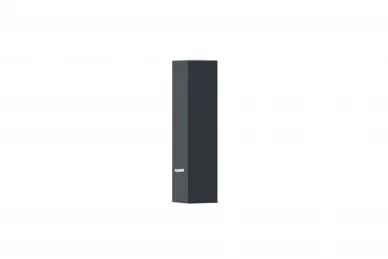

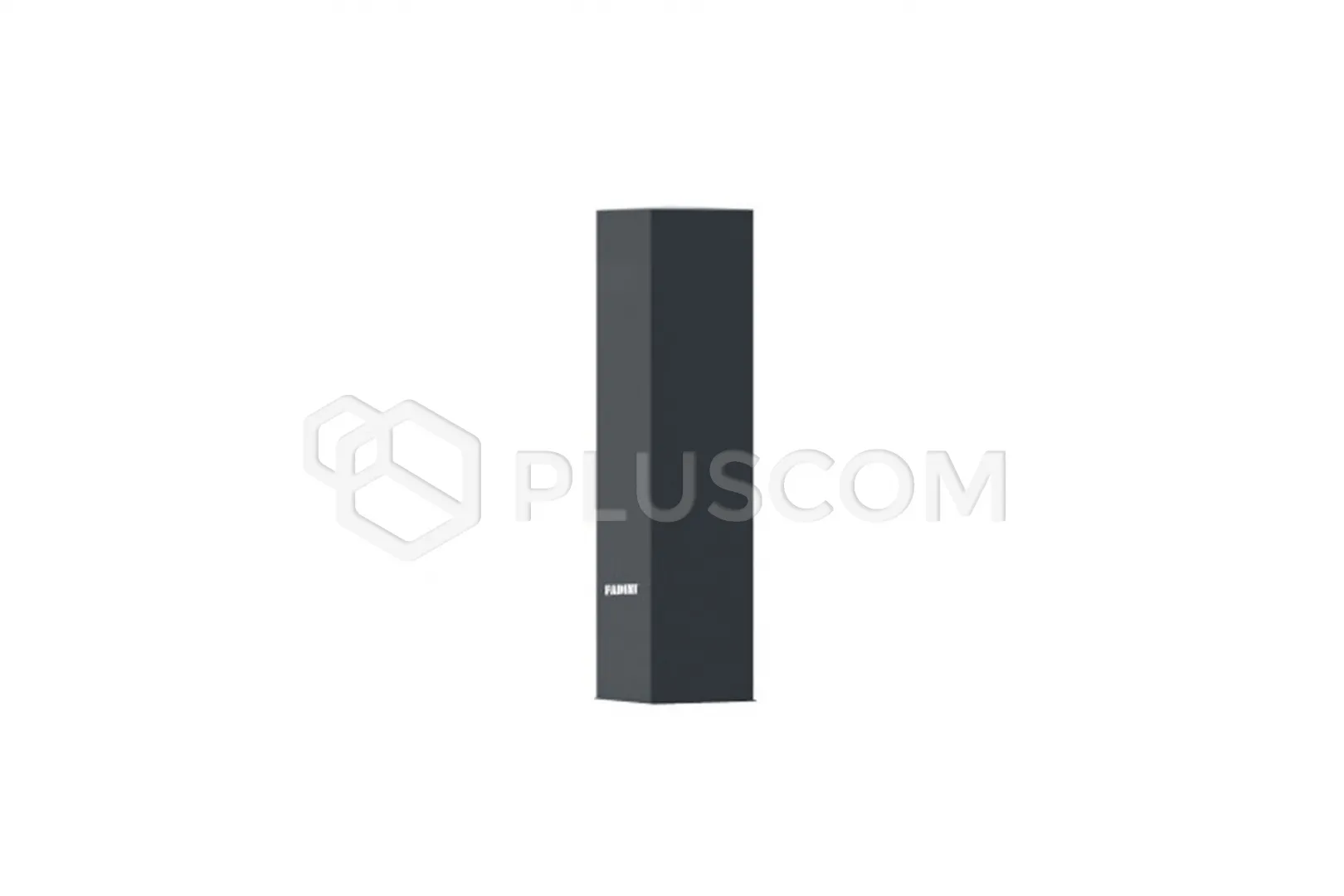

Fadini 1188SXL BARRI 88 Left barrier unit for 4m arm

1868,22 EUR including 23.00% VAT
Product code: #36724
Manufacturer: Fadini
  • Permissible arm length: 4m
  • Minimum opening time: 5s
  • Power supply: 230 V
  • ELPRO 88 exp control unit
  • RAL 7016 anthracite
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,62 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 1097L Set of 12 red reflective stickers for the arms of the BARRI 88 barrier Fadini 1096L Aluminium connector 30 x 80 mm for 4 m arm for BARRI 88 barrier Fadini 1095L Aluminum arm 4 m for BARRI 88 barrier Fadini 1094L Fixed support secured by cataphoresis method for BARRI 88 barrier Fadini 1093L Movable support for BARRI 88 barrier Fadini 708L FADINI HF.PLI oil for hydraulic installations canister 2L Fadini 1099L Safety switch to cut off the power supply to the BARRI 88 barrier Fadini 1098L Galvanized mounting base for BARRI 88 barrier

Fadini 1188SXL BARRI 88 Left Barrier Unit for 4m Arm


BARRI 88 230V automatic hydraulic barrier with built-in control unit and arm length up to 4m. For residential and intensive use.

The barrier includes a housing equipped with a door, two keys, a B88 motor pump and actuator assembly, an ELPRO 88 exp electronic control unit, power and grounding cables. The housing is cataphoretically treated and polyester powder coated in anthracite RAL7016.

CRUSH SAFETY
Hydraulic barrier powered by 230 V AC, slowing down the arm movement when opening and closing. Ideal for monitoring entrances to both residential and public buildings.

SPEED AND HARMONY OF MOVEMENT
Reinforced steel structure powder-coated in RAL 7016 graphite, integrated control unit. Anodized aluminum arm with an oval cross-section.

TECHNICAL DATA:

  • Power supply: 230V - 50 Hz
  • Power consumption: 330W
  • Current consumption: 1.8A
  • Power output: 0.24 kW - 0.33 HP
  • Opening time: ~ 5 s
  • Operating pressure: 20 atm
  • Max. Pressure: 40 atm
  • Treatment and finish: Cataphoresis and polyester powder coating in anthracite RAL 7016
  • Use frequency: intensive
  • Protection rating: IP67
  • Oil type: 708L
  • Operating temperature: -20°C ÷ +80°C
  • Weight without beam: 58 kg
Download
User manual 0.86 MB
