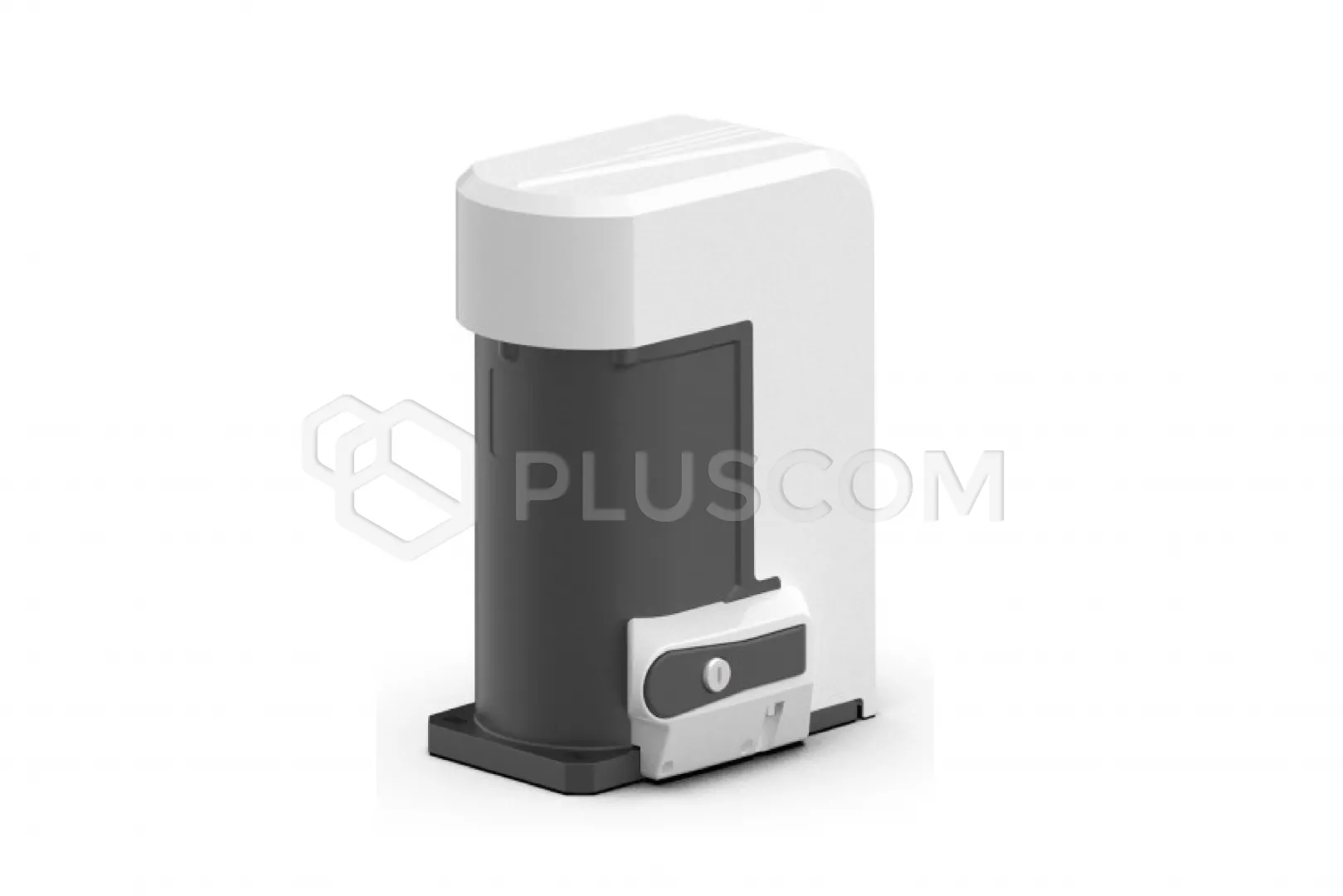

Fadini 1121L NYOTA 115 EVO 0.5 KM 230V 1PH Sliding gate actuator with built-in control unit, encoder and brake up to 1200 kg
NYOTA 115 EVO 230V 1PH (0.37 kW / 0.5 HP) electromechanical gear drive with
built-in ELPRO 12 EVO control unit, encoder, and brake up to 1200 kg for
residential and industrial use.
Powerful and elegant
The actuator operates on 230V and 400V AC,
featuring an oil-bath worm gear and a bronze gear wheel with ball bearings.
Reliable
The aluminum construction and housing provide a full long-term
warranty.
Unlocked using an aluminum lever with a key.
Safe
Anti-crushing system thanks to the combined action of an encoder
and amperometric obstacle detection, designed to reverse the direction of
movement.
Electronic brake, acceleration and deceleration with every movement.
Universal
A full range of models with various types of electric motors.
The control unit can be mounted inside the NYOTA 115 EVO or placed externally
in its own polycarbonate housing.
Program gate movement with a single button.
Master/slave function for automating two gates with opposing leaves.
Tested and certified
CE marked.
RT DATA
Real-time control system capable of quickly responding to any
possible external events (weather conditions, temperature, mechanical friction,
etc.) that could compromise the proper operation of the installation.
The microprocessor's data processing speed allows the control unit to
increase the contact force (motor torque) to properly close and open the gate
leaf while maintaining safety conditions.
This real-time reading process is designed to provide effective support to the
installer during system adjustments.
Self-locking device
Hydraulic actuator with a self-locking device that
slows down the gate leaf, operating, depending on the model, during the
opening, closing, or both phases.
Electromechanical actuator equipped with an electronic brake and a slowing
system during the opening and closing of the gate leaf.
Technical Specifications:
- Power Supply: 230V - 50Hz
- Max. Power Consumption: 600W
- Max. Current Consumption: 3.2A
- Power Output: 0.37 kW
- Motor Speed: 1,380 rpm
- Capacitor: 30 μF
- Nominal Torque: 40 Nm
- Movement Speed: 10 m/min
- Gear Ratio: 1/32
- Operating Temperature: -25°C ÷ +80°C
- Motor Thermal Protection: 160°C
- Limit Switch: Magnetic
- Protection Rating: IP55
- Oil type: 706L
- Weight: 18.5 kg
- Frequency of use: very intensive
