Fadini 1089DXL BARRI 88 Right-hand barrier for 4m arm

2035,30 EUR including 20.00% VAT
Product code: #36706
Manufacturer: Fadini
  • THE KIT:
  • Barrier unit with motor pump assembly B88
  • Electronic control unit ELPRO 88 exp
  • Aluminum arm 30x80x4000 mm + handle
  • Dedicated fixed support
Delivery and tax:
France metropolitan VAT: 20.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fadini 708L FADINI HF.PLI oil for hydraulic installations canister 2L Fadini 1099L Safety switch to cut off the power supply to the BARRI 88 barrier Fadini 1098L Galvanized mounting base for BARRI 88 barrier Fadini 1097L Set of 12 red reflective stickers for the arms of the BARRI 88 barrier Fadini 1096L Aluminium connector 30 x 80 mm for 4 m arm for BARRI 88 barrier Fadini 1095L Aluminum arm 4 m for BARRI 88 barrier Fadini 1094L Fixed support secured by cataphoresis method for BARRI 88 barrier Fadini 1093L Movable support for BARRI 88 barrier

Fadini 1088DXL BARRI 88 Right-Hand Automatic Hydraulic Barrier for 4m Arm



KIT INCLUDES:
  • Barrier unit with B88 motor pump assembly
  • ELPRO 88 exp electronic control unit
  • Aluminum arm 30x80x4000 mm
  • Arm mounting bracket

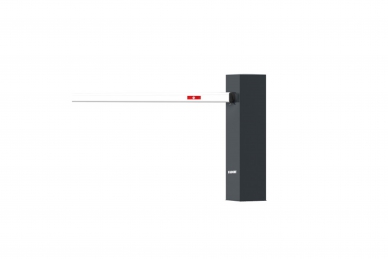

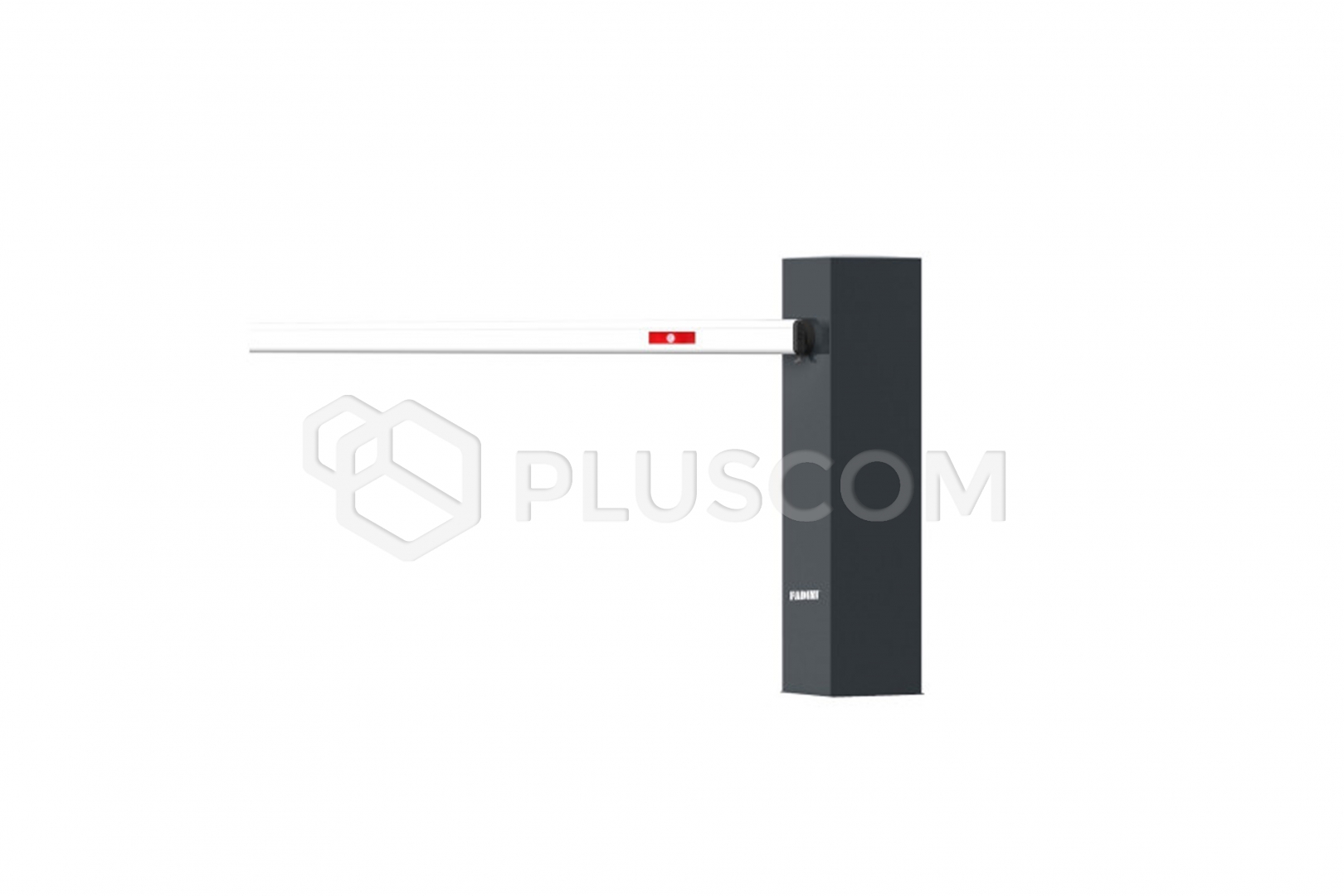

Fadini 1089DXL BARRI 88 Left-hand barrier for 4m arm

Fadini 1089DXL BARRI 88 Left-hand barrier for 4m arm
BARRI 88 230V automatic hydraulic barrier with a built-in control unit and an arm up to 4 m long. For residential and intensive use.

The barrier includes a housing with a door, two keys, a B88 motor pump and actuator assembly, an ELPRO 88 exp electronic control unit, power and grounding cables, a 30x80x4000 mm aluminum arm, an arm mounting bracket, and a galvanized mounting base with anchors and nuts. The housing is cataphoretically treated and polyester powder-coated in anthracite RAL7016. Dedicated fixed support.

CRUSH SAFETY
Hydraulic barrier powered by 230 V AC, with arm movement slowing down when opening and closing. Ideal for monitoring entrances to both residential and public buildings.

SPEED AND HARMONY OF MOVEMENT
Reinforced steel structure powder-coated in RAL 7016 anthracite, integrated control unit. Anodized aluminum arm with an oval cross-section.

TECHNICAL DATA:

  • Power supply: 230V - 50 Hz
  • Power consumption: 330W
  • Current consumption: 1.8A
  • Power output: 0.24 kW - 0.33 HP
  • Opening time: ~ 5 s
  • Operating pressure: 20 atm
  • Max. Pressure: 40 atm
  • Treatment and finish: Cataphoresis and polyester powder coating in anthracite RAL 7016
  • Use frequency: intensive
  • Protection rating: IP67
  • Oil type: 708L
  • Operating temperature: -20°C ÷ +80°C
  • Weight without beam: 58 kg
Download
User manual 0.86 MB
