Fadini 107L TRIFO 11 Surface-mounted relay photocells

42,17 EUR including 19.00% VAT
Product code: #36699
Manufacturer: Fadini
  • Power supply: 24V
  • Operating mode: NO/NC
  • Range: 6 m
  • Obstacle detection time: 6 ms
  • Protection class: IP55
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

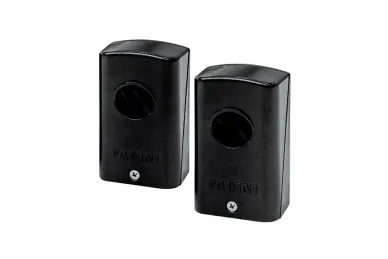

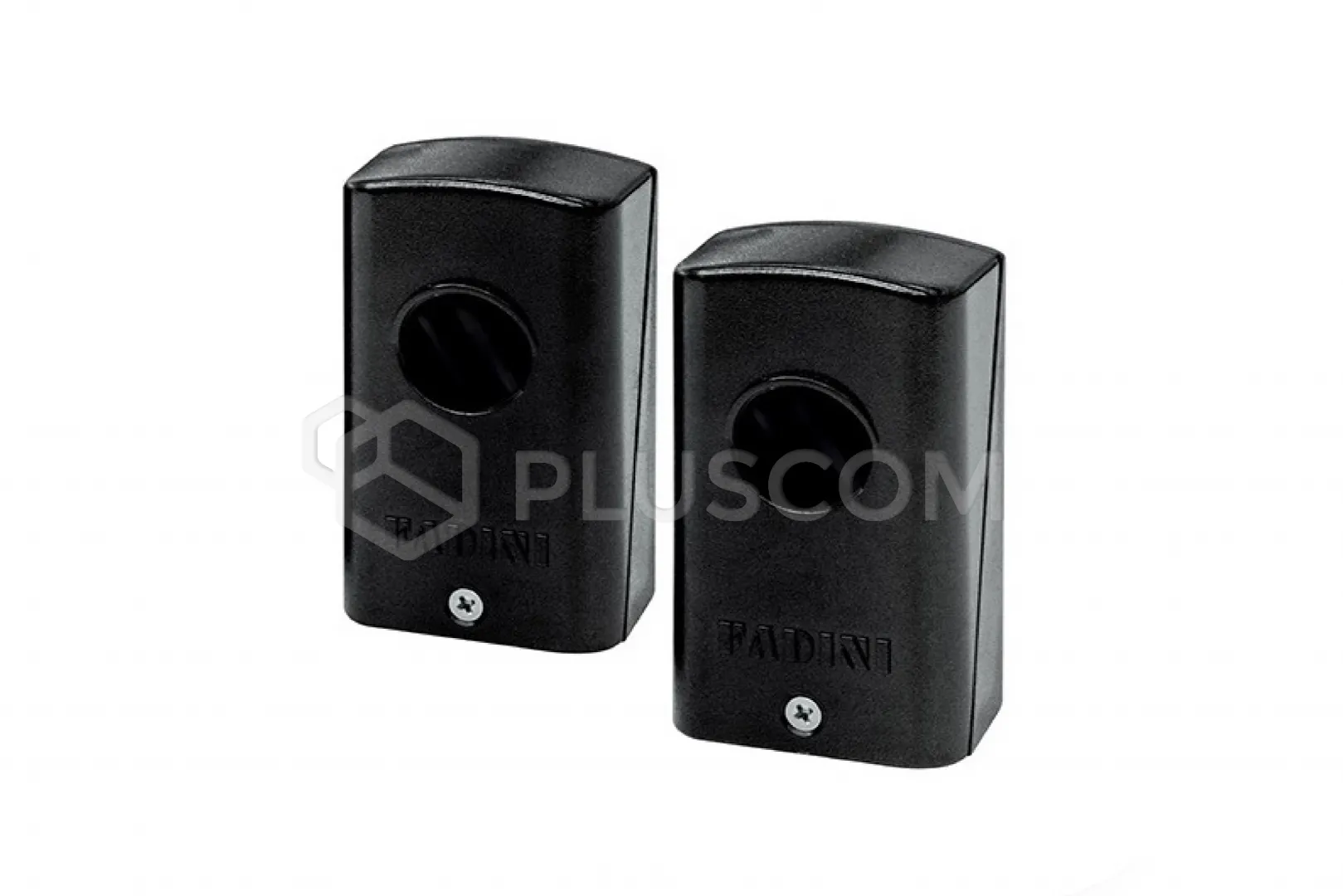

Fadini 107L TRIFO 11 Relay surface-mounted photocells


TRIFO 11 relay surface-mounted photocells - a safety device compliant with EN 12453, equipped with one receiver and one transmitter.

EASY TO INSTALL

Design designed to save space. ABS plastic cover with high resistance to weather conditions.

SAFE

Range 6m. Relay output enabling connection to any ELPRO series control unit or existing installation. Supply voltage 24V AC/DC/

Technical data:

  • Power supply: 24V
  • Transmitter current consumption: 55 mA
  • Receiver current consumption: 35 mA
  • Operating temperature: -20°C / +70°C
  • Relay contact load capacity: 1/125 - 60 A/Vac - VA
  • Modulation frequency: 1500 Hz
  • Operating mode: NO/NC
  • Range: 6 m*
  • Obstacle detection time: 6 ms
  • Protection class: IP55
  • Weight of one pair of TRIFO 11: 85 g
*Distance is reduced by about 30-50% in case of fog, rain or dust.
