Fadini 1067L Hydraulic automatic parking post CORAL 1067L 100/600

Fadini 1067L Automatic hydraulic parking bollard CORAL 1067L 100/600

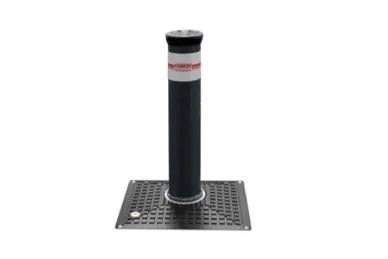

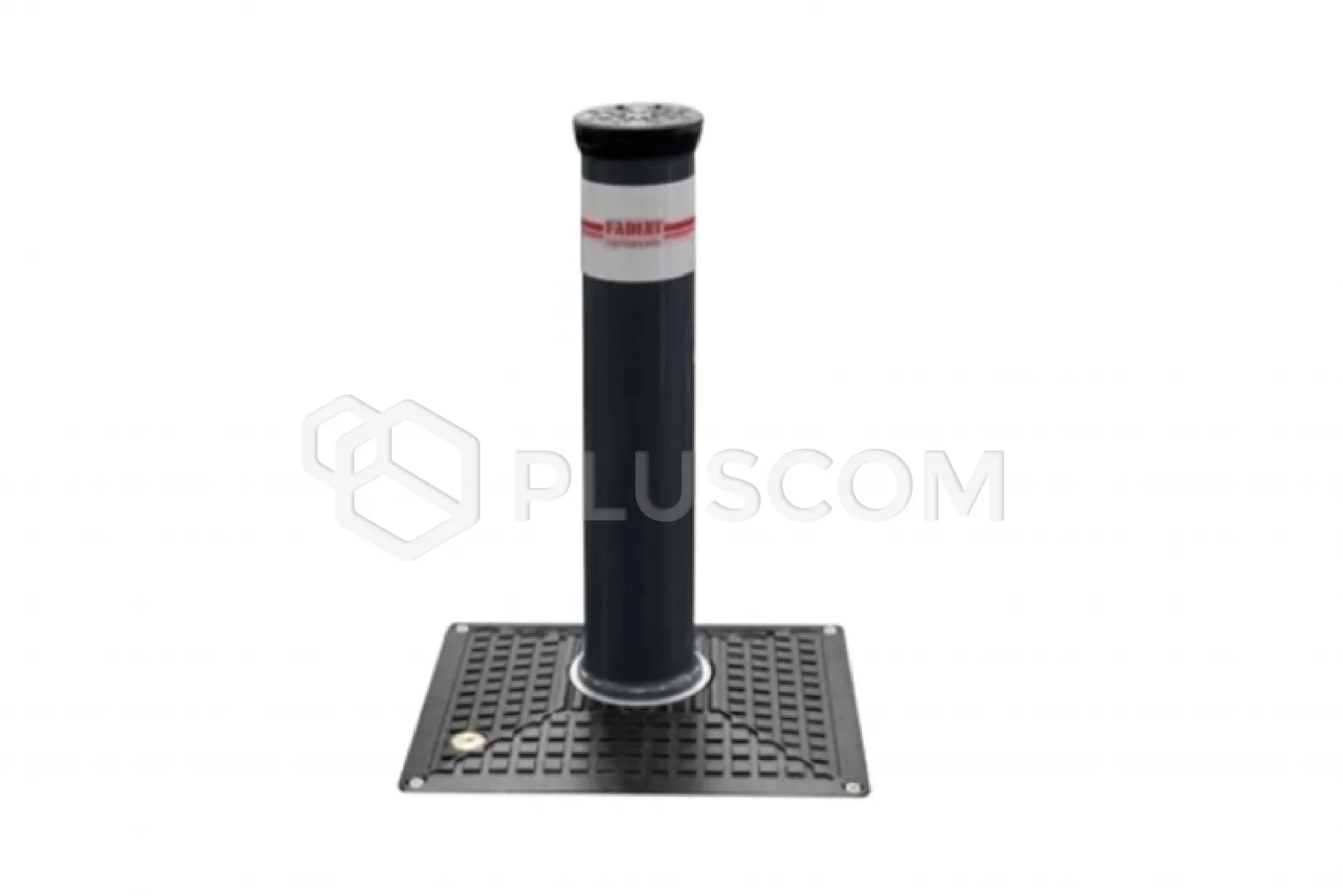

Automatic parking barrier with a cylinder height of 600 mm and a diameter of 100 mm. Limit switches - for opening and closing. LED lighting. 24V solenoid valve

Bollard retractable into the ground, activated by a hydraulic actuator, with a built-in hydraulic unit. 230V power supply, 10m cables included. The post column is made of 5mm thick steel, protected against corrosion by cataphoresis and powder coated. Reflective sticker with approval. Special key to unlock the column and lower it manually. Housing for concreting in the ground made of hot-dip galvanized steel. The housing of the hydraulic unit is electrolytically galvanized.

The FADINI lock is made of a cylindrical steel post, rising from a galvanized housing built into the ground. The use of a hydraulic actuator for the drive means that it can work in almost any weather conditions, while being highly reliable and impeccable in operation. The hydraulic unit and the piston are mounted directly under the cover.

DESIGN AND IMPLEMENTATION

A post designed to control access in residential areas and on the premises of commercial and industrial complexes.

HYDRAULIC MECHANISM

A hydraulic lock that holds the post column in the extended position (as standard) and emergency manual lowering using the key supplied with the device. An electrovalve (available as an option) for automatic lowering of the post in the event of a power failure. Tested for intensive use, including operation in extremely high and low temperatures.

EASY ACCESS TO HYDRAULIC COMPONENTS

Convenient location of the hydraulic unit and the hydraulic cylinder piston placed inside the column facilitate maintenance work and shorten service time. Thanks to this, the components are better protected, which limits the development of rust and provides protection against other factors affecting the degradation of the device.

EASY AND QUICK INSTALLATION

Thanks to the limited weight of the housing for concreting into the ground, there is no need to perform special excavations or carry out masonry work. Scratch-resistant steel cylinder protected by cataphoresis and covered with a polyester powder coating. Hall effect limit switches, rubber seal at the column cover, LED warning lights (optional).

VERSALITY

A wide range of control and safety accessories allows reliable and precise control of the devices. The control unit can be configured to operate multiple posts simultaneously.
