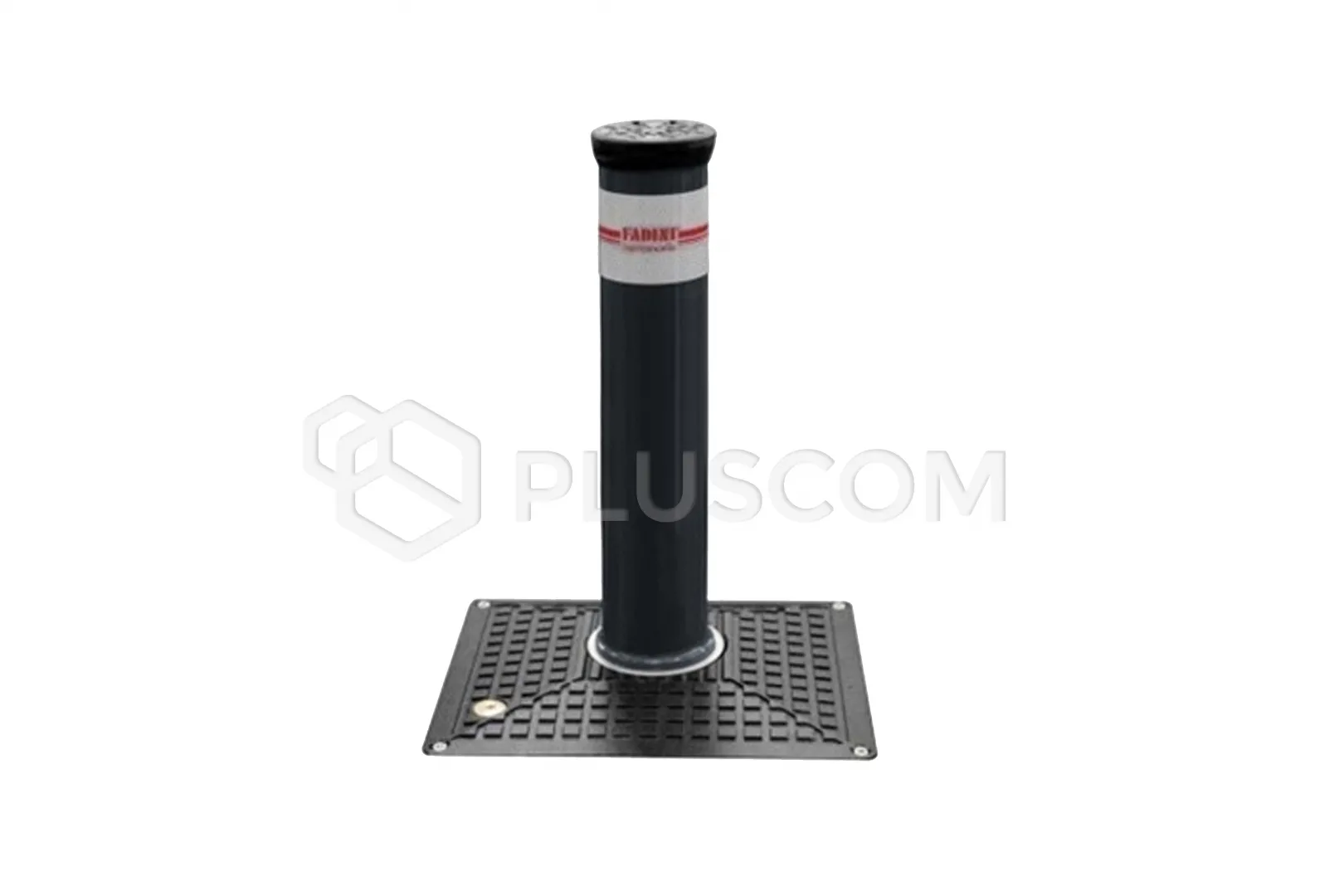

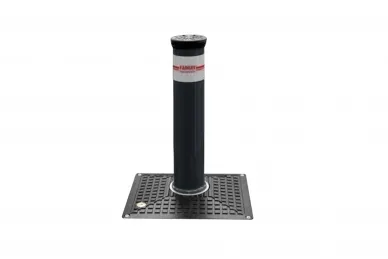

Fadini 1057L CORAL Automatic Parking Bollard, Diameter 100mm, Height
500mm
This automatic parking bollard with a built-in hydraulic unit is the ideal
solution for access control in residential areas and commercial and industrial
complexes.
Thanks to the limited weight of the housing, which is concreted into the
ground, there is no need for special excavations or masonry work. The
scratch-resistant steel cylinder is cataphoresis-treated and coated with a
polyester powder coating. Hall-effect limit switches, a rubber seal on the
column cover, and LED warning lights (optional).
The 1057L CORAL is an automatic bollard, 500mm high and 100mm in diameter. The
bollard is powered by 230 V AC 50 Hz, single-phase. The column is made of 5mm
thick steel, protected against corrosion by cataphoresis and powder-coated. The
set includes a housing, a movable steel cylinder, a 24 V DC solenoid valve and
LEDs, a RAL 7016 polyester powder coating, a rubber-protected top section of
the column, self-adhesive reflective tape, two limit switches, a release key,
and a 10 m power cable for the hydraulic cylinder and limit switches.
EASY AND QUICK INSTALLATION
Thanks to the limited weight of the housing, which is to be concreted into the
ground, there is no need for special excavations or masonry work.
TECHNICAL DATA:
- Post diameter: 100mm
- Post thickness: 5mm
- Post height: 500mm
- Power supply: 230Vac - 50Hz
- Power: 330W
- Current: 1.8A
- Output power: 0.25kW (0.33HP)
- Impact resistance: 30,000J
- Break resistance: 150,000J
- Post material: S235J steel
- Finish: RAL7016 polyester coating
- Enclosed Underground: Hot-dip galvanized
- Lifting time: ~4.7s [11cm/s]
- Descent time: ~4.4s [12cm/s]
- Operating temperature: -20°C + 80°C
- Oil type: FADINI oil - code 708L
- Oil pump protection class: IP67
- Use frequency: intensive
- Weight: 86kg
