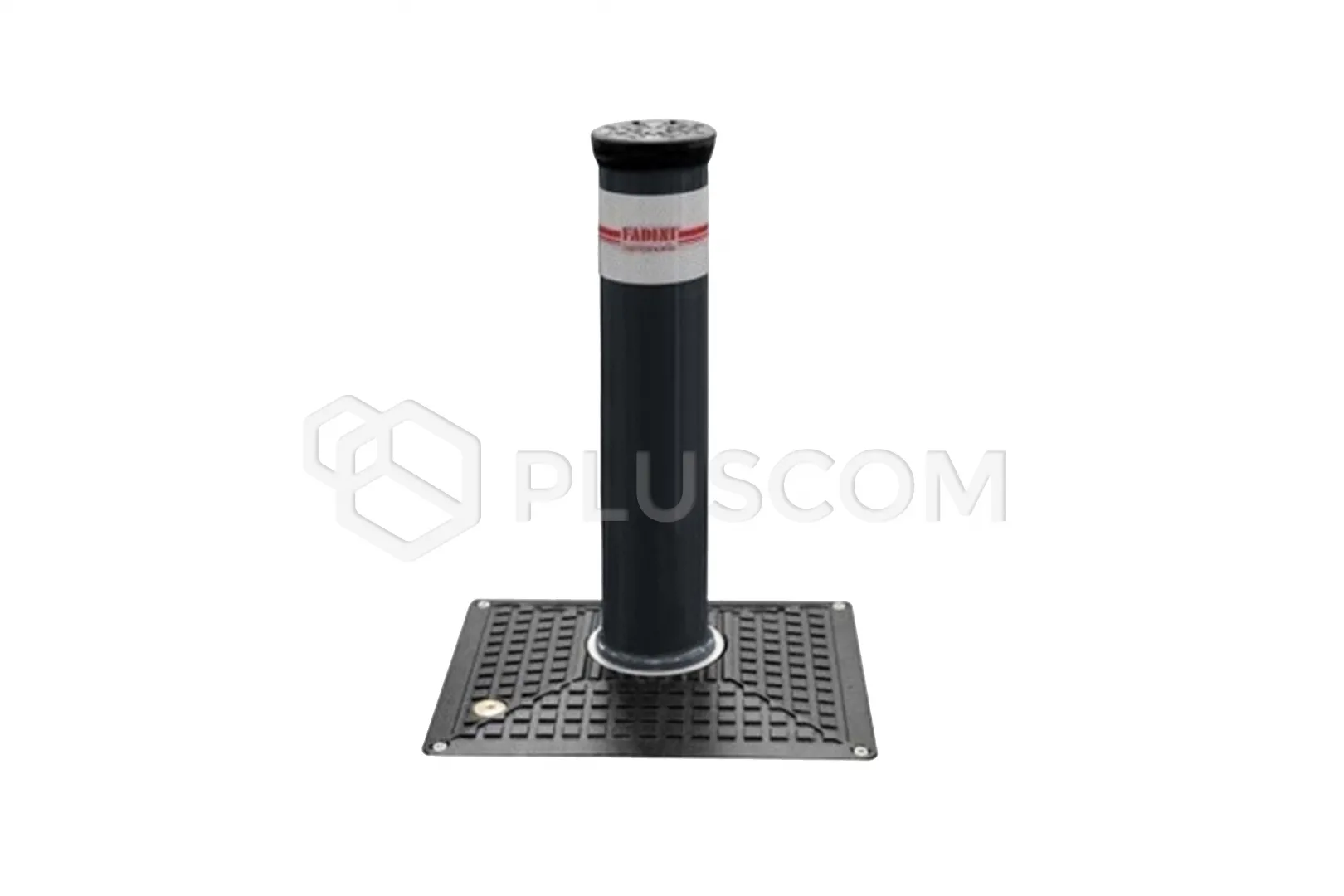

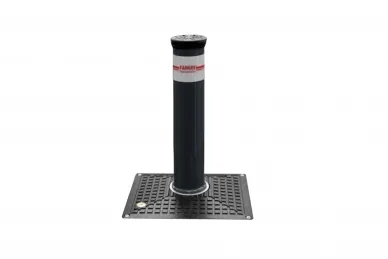

Fadini 1054L CORAL Automatic Parking Bollard, Diameter 100mm, Height
500mm
This automatic parking bollard with a built-in hydraulic unit is the ideal
solution for access control in residential areas and commercial and industrial
complexes.
Thanks to the limited weight of the housing, which is concreted into the
ground, there is no need for special excavations or masonry work. The
scratch-resistant steel cylinder is cataphoresis-treated and coated with a
polyester powder coating. Hall-effect limit switches, a rubber seal on the
column cover, and LED warning lights (optional).
The 1054L CORAL is an automatic bollard, 500mm high and 100mm in diameter. The
bollard is powered by 230V AC 50Hz single-phase. The bollard column is made of
5mm thick steel, protected against corrosion by cataphoresis and powder-coated.
The set includes a housing, a movable steel cylinder, LEDs, a RAL 7016
polyester powder coating, a rubber-coated top section, self-adhesive reflective
tape, two limit switches, a release key, and a 10m power cable for the
hydraulic actuator and limit switches.
EASY AND QUICK INSTALLATION
Thanks to the limited weight of the housing, which is to be concreted into the
ground, there is no need for special excavations or masonry work.
TECHNICAL DATA:
- Post diameter: 100mm
- Post thickness: 5mm
- Post height: 500mm
- Power supply: 230Vac - 50Hz
- Power: 330W
- Current: 1.8A
- Output power: 0.25kW (0.33HP)
- Impact resistance: 30,000J
- Break resistance: 150,000J
- Post material: S235J steel
- Finish: RAL7016 polyester coating
- Enclosed Underground: Hot-dip galvanized
- Lifting time: ~4.7s [11cm/s]
- Descent time: ~4.4s [12cm/s]
- Operating temperature: -20°C + 80°C
- Oil type: FADINI oil - code 708L
- Oil pump protection class: IP67
- Use frequency: intensive
- Weight: 86kg
