Faac S450H CBAC Special Kit

2424,13 EUR including 20.00% VAT
Product code: #26728
Manufacturer: Faac
  • Leaf length up to 2m
  • Motor power supply: 24V
  • Motor type: Brush, 24V DC
  • Usable working stroke 311 mm
  • Max. thrust force: >5000 N
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Lock for unlocking the drive with a key Faac 710010 RTA connector Faac Interface BUS XIB Faac 90926 Emergency battery base Faac XBAT 24 emergency battery

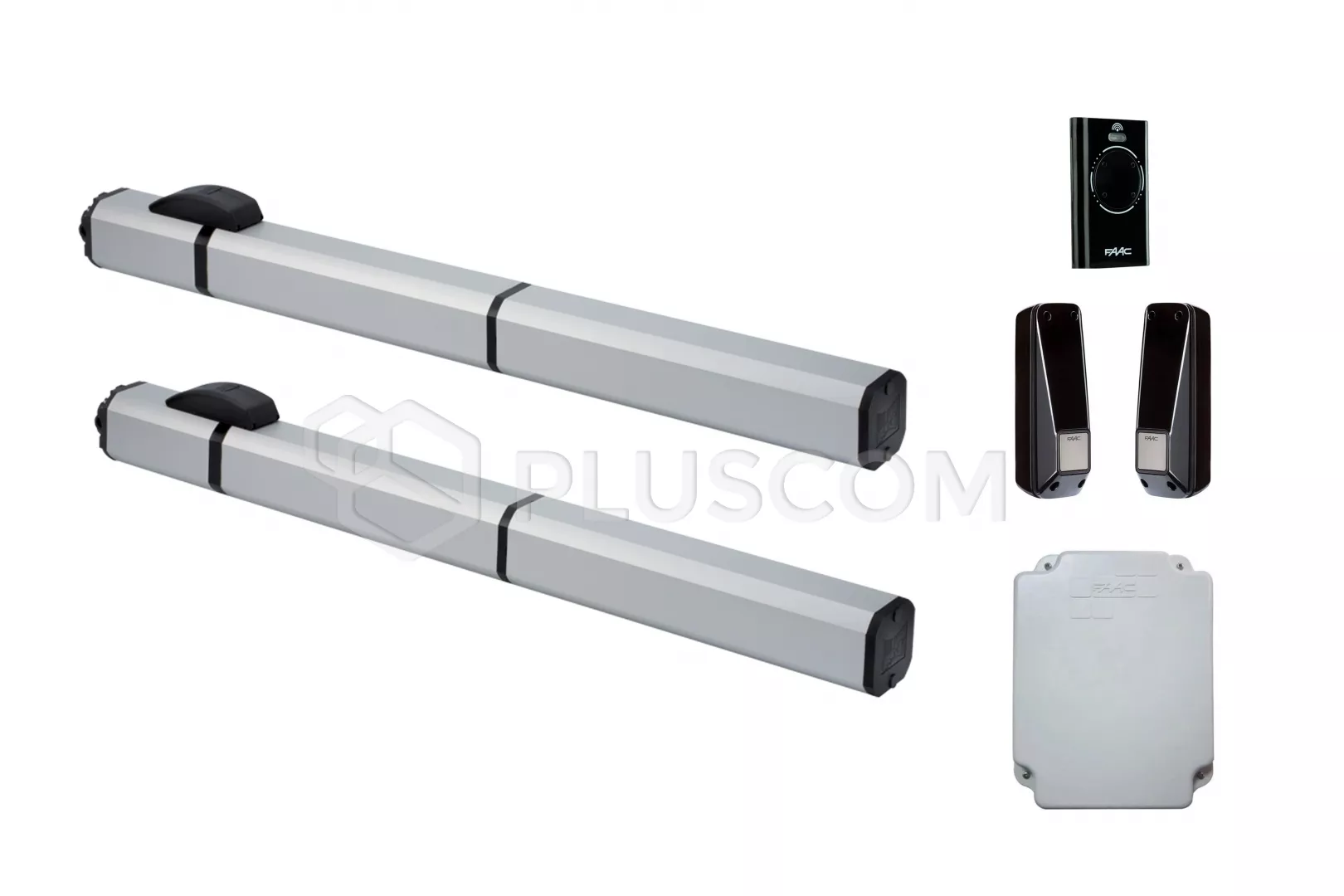

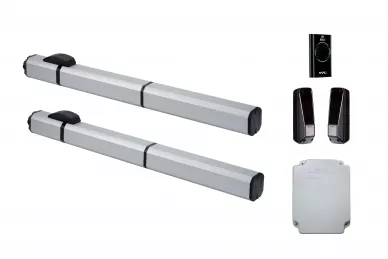

Faac S450H CBAC special set for swing gates up to 2m


SET CONTAINS:
  • 2 x S450H CBAC actuator
  • E024S control unit with housing
  • XF 868 radio module
  • 1 x remote control XT4 868 SLH LR black (868MHz)
  • pair of XP 20B D photocells
  • assembly accessories
Faac S450H CBAC Special Kit

Faac S450H CBAC Special Kit
Hydraulic drive with a 24V motor for swing gates, folding consists of an electric pump and a hydraulic piston. It is equipped with a lock hydraulic and does not require installing an electric lock, guaranteeing locking mechanical wing.
The distinguishing features of the drive are:
  • hybrid technology (combination of a hydraulic drive with a 24 V engine)
  • equipped with a magnetic absolute encoder (SAFEcoder) providing protection anti-crush
  • usable piston stroke 311 mm
  • new multi-position mounting brackets that do not require welding
  • mechanical opening and closing stops included
Technical data:
  • Power supply: 220-240 V AC 50/60 Hz
  • Motor power supply: 24V
  • Power consumption: 60W
  • Useful working stroke: 311 mm
  • Max. leaf opening angle 110°
  • Thrust force: >5000 N
  • Usage frequency: 100%
  • Oil type: FAAC HP OIL
  • Protection class: IP 55
  • Operating temperature range: -20°C to +50°C
  • Weight: 6.5kg
  • Dimensions: 1131x85x119mm
Download
Manual 4.32 MB
