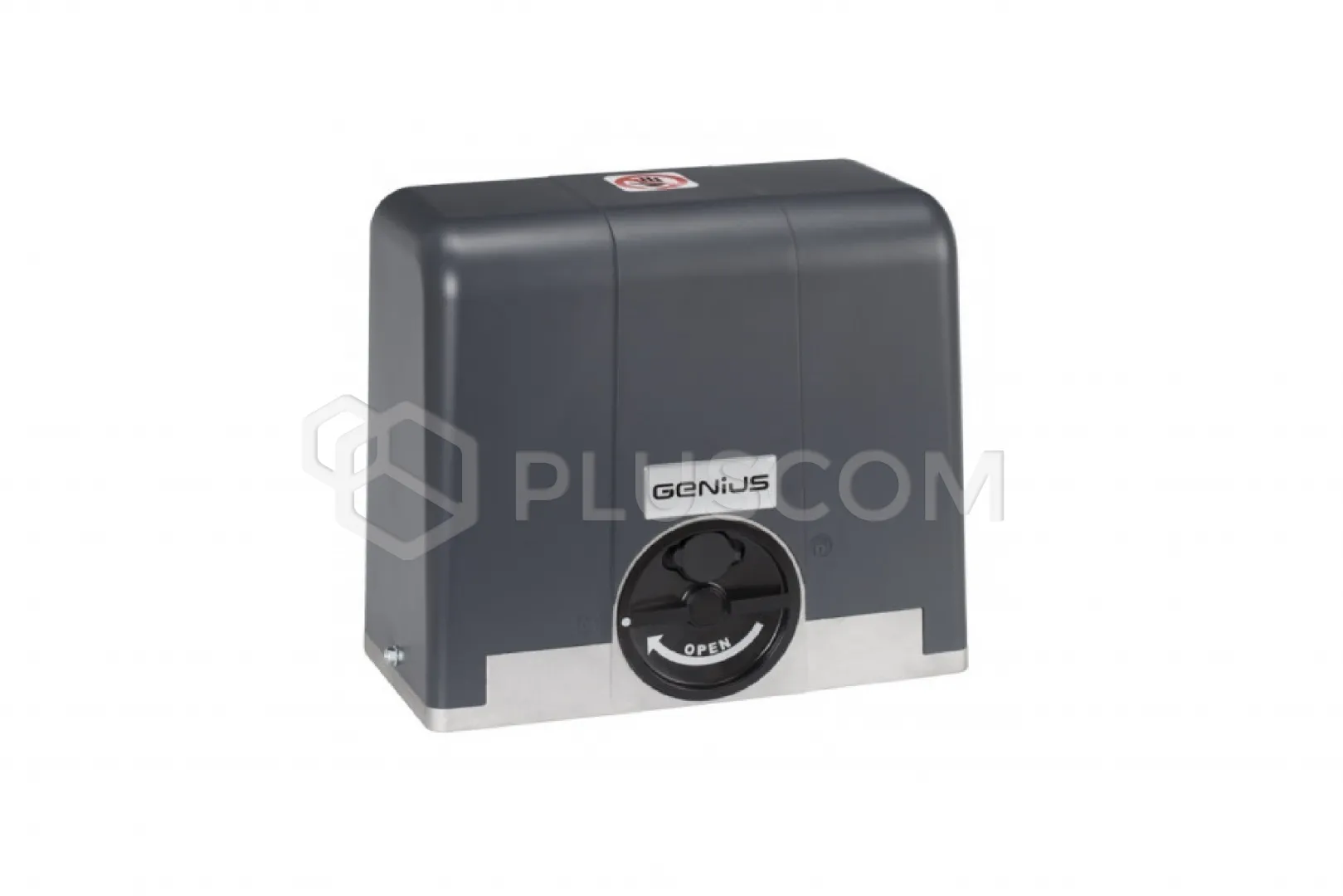

Faac Genius BLIZZARD 500 230V sliding gate operator

Product code: #43887
Manufacturer: Faac
  • Motor power supply: 230V
  • Electric motor: Asynchronous single-phase
  • Max. leaf weight: 500 kg
  • Sprint 382 control unit
  • Reversal of motion and magnetism off marginal
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 6100345 Set of 4 mounting screws Faac Genius JA148 Set of 3 M8x50 spacers for mounting screws for 1 m of rack Faac Genius JA147 Set of 3 M8x30 spacers for mounting screws for 1 m of rack Faac Genius 737000 Mounting base for sliding gates BLIZZARD Faac Genius 424413 Lock - Cylinder with personalized key

Faac Genius BLIZZARD 500 230V drive for sliding gates up to 500 kg


Self-locking drive with integrated Sprint 382 control unit for sliding gates weighing up to 500 kg. It has an integrated encoder and a 230V motor power supply.

FEATURES AND FUNCTIONS:
  • Full control of the leaf movement and quick reaction (reversal of movement) when encountering an obstacle
  • Magnetic limit switches
  • Electronic control unit with a transparent plastic housing and external programming buttons
  • Wide selection of operating logic and parameters
  • Compact dimensions
  • Large space inside the drive for easier connections; Installer-friendly height and depth adjustment of the drive.

    TECHNICAL DATA:

    • Power supply voltage: 230 V~ (+6%…-10%) 50 Hz.
    • Electric motor: Asynchronous single-phase.
    • Condensation: 360 W.
    • Thermal protection: 140°C (self-resetting).
    • Max. thrust force: 390 N.
    • Initial thrust force: 300 N.
    • Gear: Z16 M4.
    • Max. gate leaf length: 15 m.
    • Max. Gate leaf weight: 500 kg
    • Travel speed: 12 m/min
    • Control unit: SPRINT 382
    • Ambient operating temperature: -20°C - +55°C
    • Continuous operation time (ROT): 22 min
    • Protection rating: IP44
    • Dimensions: 297x170x256 mm
    • Drive weight: 9.2 kg
