Faac Genius BLIZZARD 400 24V up to 400kg Set

799,13 EUR including 23.00% VAT
Product code: #27138
Manufacturer: GENIUS
  • Gate weight: 400kg
  • Motor power supply: 24v
  • Sprint M24 control unit
  • Reversal of movement
  • Magnetic limit switch

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Genius 424413 Lock - Cylinder with personalized key Faac 6100345 Set of 4 mounting screws Faac GUARD LED 230V signal lamp Faac GUARD LED 230V signal lamp Genius 6100316 GUARD LED 24V warning lamp Faac Genius JA148 Set of 3 M8x50 spacers for mounting screws for 1 m of rack Faac Genius JA147 Set of 3 M8x30 spacers for mounting screws for 1 m of rack Faac Genius 737000 Mounting base for sliding gates BLIZZARD

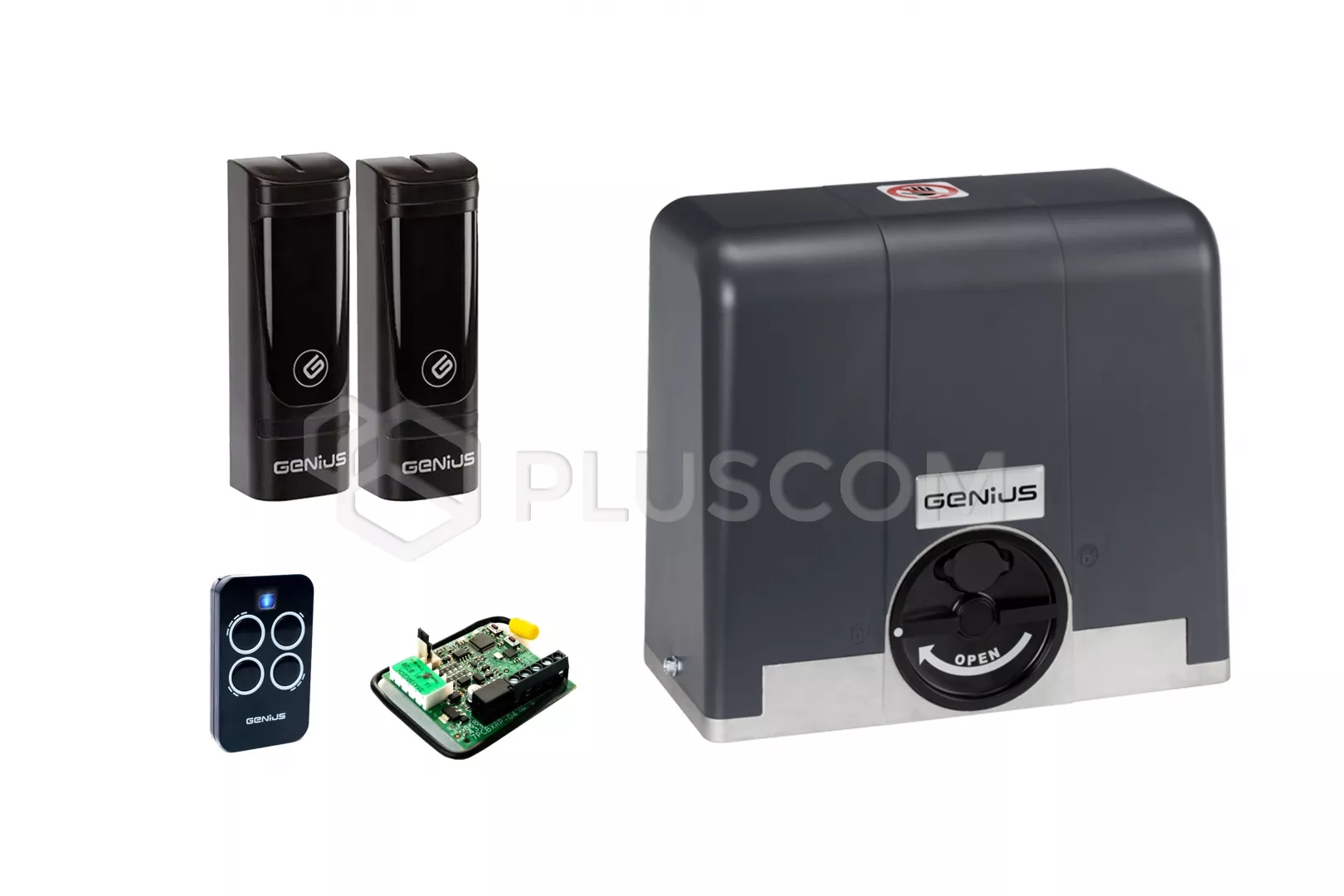

Faac Genius BLIZZARD 400 24V Starter kit for sliding gates weighing up to 400kg


Self-locking drive with integrated Sprint 24 control unit for sliding gates weighing up to 400 kg. has an integrated encoder and 24V motor power supply.

SET CONTAINS:
Faac Genius BLIZZARD 400 24V up to 400kg Set

Faac Genius BLIZZARD 400 24V up to 400kg Set


FEATURES AND FUNCTIONS:
  • Full control of the leaf movement and quick reaction (reversal of movement) when encountering an obstacle
  • Magnetic limit switches
  • Electronic control unit with transparent plastic housing and external programming buttons
  • Large selection of operating logic and operating parameters
  • Compact dimensions
  • Large space inside the drive for easier connections; height adjustment convenient for the installer and drive installation depth

TECHNICAL DATA:

  • Power supply: 230 V
  • Motor: 24 V
  • Rated power: 140 W
  • Max. torque: 310 N
  • Rack and pinion type: Z16 mod. 4
  • Speed: 12 m/min.
  • Use frequency: continuous operation
  • Operating temperature range: -20°C to +55°C
  • Weight: 7 kg
  • Protection class: IP 44
