Faac Genius 6170178 Actuator MISTRAL T324 ENV 24V

441,83 EUR including 23.00% VAT
Product code: #27160
Manufacturer: GENIUS
  • Power supply: 230V AC
  • Engine: 24V
  • Max. leaf length: 3m
  • Max speed: 2.1 cm/sec.
  • Degree of protection: IP 54
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Genius 6100253 Post bracket Faac Genius 58P0199 Post bracket base

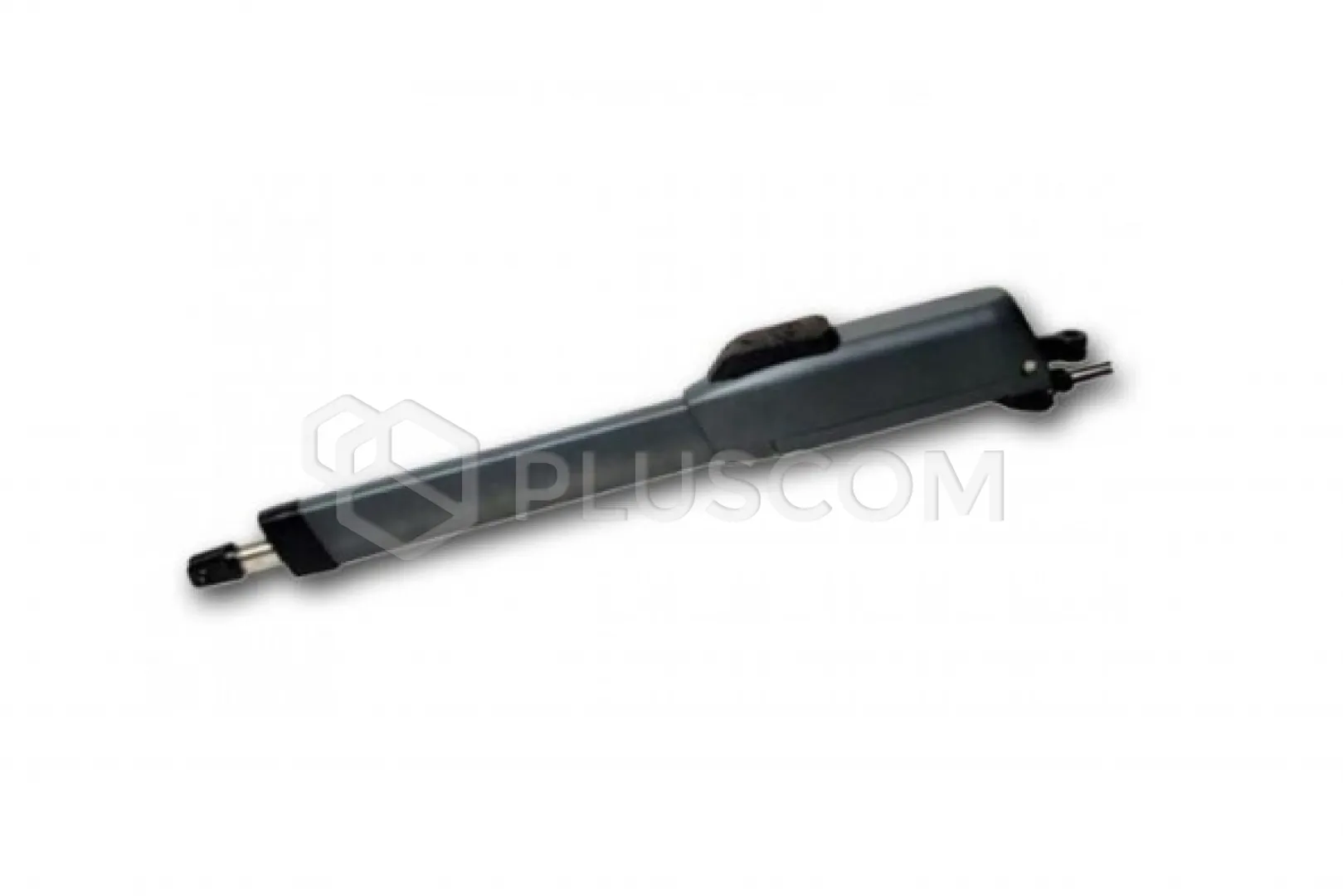

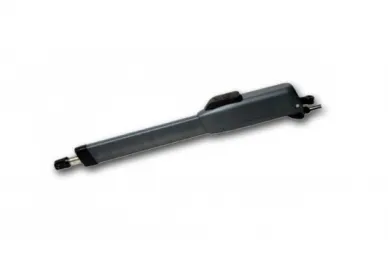

Faac Genius 6170178 MISTRAL T324 ENV 24V Actuator


The MISTRAL T324 ENV 24V self-locking actuator (right/left) is designed for swing gates with a leaf length of up to 3 m.

FEATURES:

  • Version: 24V
  • Maximum leaf size up to 3 m
  • The 24 V model is equipped as standard with the ENV (Virtual Encoder) function - FAAC PATENT
  • G-WAY system in 24V version (with Brain 15 control unit)
  • PROcoder security system (with Brain 15 control units)
  • Emergency release using a user-friendly lever and a personalized key
  • Solid bronze gear
  • Slowing down of opening and closing available in both versions
  • Cables (with chokes) led out horizontally, which allows the drive to be mounted very close to the ground surface
  • Aluminum body protected by a double protective coating, guaranteeing higher resistance to atmospheric factors

Technical data:

  • Power supply voltage: 230V
  • Motor: 24V
  • Nominal power: 35 W
  • Current consumption: 3A
  • Thrust force: 150 daN
  • Actuator stroke: 300 mm
  • Max. speed: 2.1 cm/sec.
  • Usage frequency at 20°C: continuous
  • Operating ambient temperature: -20°C / +55°C
  • Protection class: IP54
  • Weight: 7.5 kg
